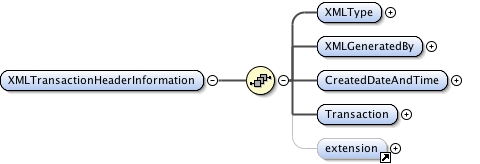

<xs:element name="XMLTransactionHeaderInformation"><xs:annotation><xs:documentation>These are a series of elements that indicate the type of XML and basic descriptive data about the XML.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="XMLType" type="XMLType"/><xs:element name="XMLGeneratedBy" type="XMLGeneratedBy"/><xs:element name="CreatedDateAndTime" type="CreatedDateAndTime"/><xs:element name="Transaction" type="TransactionType"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>

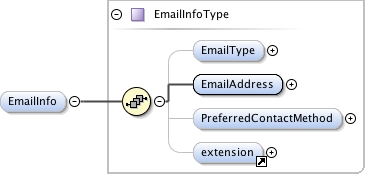

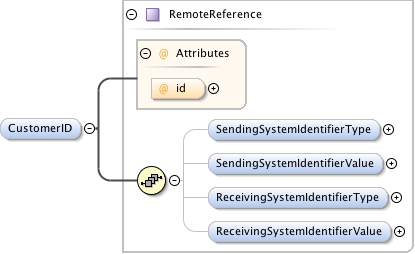

<xs:element name="CustomerDetails"><xs:complexType><xs:sequence><xs:element name="Person" type="IndividualInfo"/><xs:element minOccurs="0" name="MailingAddress" type="AddressInformation"><xs:annotation><xs:documentation>If different from building street address.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>

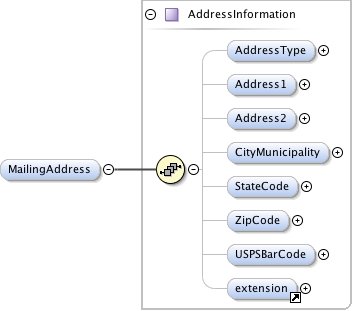

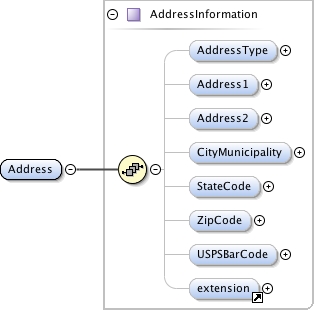

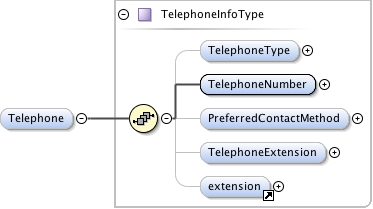

<xs:element minOccurs="0" name="MailingAddress" type="AddressInformation"><xs:annotation><xs:documentation>If different from building street address.</xs:documentation></xs:annotation></xs:element>
<xs:element name="ProjectStatus"><xs:complexType><xs:sequence><xs:element name="EventType" type="EventType"><xs:annotation><xs:documentation>Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Date" type="xs:date"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).
<xs:element name="EventType" type="EventType"><xs:annotation><xs:documentation>Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).</xs:documentation></xs:annotation></xs:element>

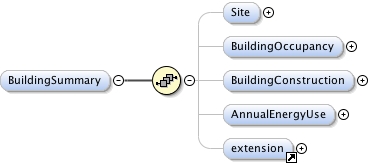

<xs:element name="BuildingSummary" minOccurs="0"><xs:annotation><xs:documentation>Overall characterization of building for descriptive, rather than modeling purposes</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Site"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="SiteType" type="SiteType"/><xs:element minOccurs="0" name="Surroundings" type="Surroundings"><xs:annotation><xs:documentation>If the building is attached to other units in the horizontal plane.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="VerticalSurroundings" type="VerticalSurroundings"><xs:annotation><xs:documentation>If the building is attached to other units on the vertical plane.</xs:documentation></xs:annotation></xs:element><xs:element name="ShieldingofHome" type="ShieldingofHome" minOccurs="0"/><xs:element minOccurs="0" name="OrientationOfFrontOfHome" type="OrientationType"/><xs:element minOccurs="0" name="AzimuthOfFrontOfHome" type="AzimuthType"/><xs:element minOccurs="0" name="PublicTransportation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="DistanceFromSubway" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromBus" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromTrain" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WalkingScore" type="IntegerGreaterThanOrEqualToZero"/><xs:element minOccurs="0" name="WalkingScoreSource" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="BuildingOccupancy"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="HouseholdType" type="HouseholdType"/><xs:element minOccurs="0" name="YearOccupied" type="Year"><xs:annotation><xs:documentation>The year the current occupants moved into the building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ResidentPopulationType" type="ResidentPopulationType"/><xs:element minOccurs="0" name="Occupancy" type="Occupancy"/><xs:element name="NumberofResidents" type="PeopleCount" minOccurs="0"/><xs:element minOccurs="0" name="NumberofAdults" type="PeopleCount"><xs:annotation><xs:documentation>18 or older</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofChildren" type="IntegerGreaterThanOrEqualToZero"><xs:annotation><xs:documentation>less than 18 years old</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PubliclySubsidized" type="xs:boolean"/><xs:element minOccurs="0" name="LowIncome" type="xs:boolean"/><xs:element minOccurs="0" name="OccupantIncomeRange" type="FractionGreaterThanOne"><xs:annotation><xs:documentation>Percentage as a fraction (50% = 0.5)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="OccupantIncomeRangeUnits" type="OccupantIncomeRangeUnits"><xs:annotation><xs:documentation>AMI = Area Median Income; FPL = Federal Poverty Level</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HighestLevelofOccupantEducation" type="EducationLevels"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="BuildingConstruction"><xs:complexType><xs:sequence><xs:element name="YearBuilt" type="Year" minOccurs="0"/><xs:element minOccurs="0" name="YearBuiltKnownOrEstimated" type="KnownOrEstimated"/><xs:element minOccurs="0" name="YearofLastRemodel" type="Year"/><xs:element name="ResidentialFacilityType" type="ResidentialFacilityType" minOccurs="0"/><xs:element minOccurs="0" name="PassiveSolar" type="xs:boolean"><xs:annotation><xs:documentation>Passive solar design—also known as climatic design—involves using a building's windows, walls, and floors to collect, store, and distribute solar energy in the form of heat in the winter and reject solar heat in the summer. (source: http://www.eere.energy.gov/basics/buildings/passive_solar_design.html)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] height of building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofUnits" type="IntegerGreaterThanZero"/><xs:element minOccurs="0" name="NumberofFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Total number of floors including a basement, whether conditioned or unconditioned</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors that are heated/cooled including a basement</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloorsAboveGrade" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors above grade that are heated/cooled</xs:documentation></xs:annotation></xs:element><xs:element name="AverageCeilingHeight" type="LengthMeasurement" minOccurs="0"><xs:annotation><xs:documentation>[ft] Average distance from the floor to the ceiling</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorToFloorHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] distance between floors</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofRooms" type="IntegerGreaterThanZero"/><xs:element name="NumberofBedrooms" type="IntegerGreaterThanOrEqualToZero" minOccurs="0"/><xs:element name="NumberofBathrooms" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="NumberofCompleteBathrooms" type="IntegerGreaterThanZero"><xs:annotation><xs:documentation>Number of bathrooms with a tub or shower</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingFootprintArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FootprintShape" type="FootprintShape"/><xs:element minOccurs="0" name="GrossFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Gross floor area (based on ASHRAE definition) is the sum of the floor areas of the spaces within the building, including basements, mezzanine and intermediate‐floored tiers, and penthouses with headroom height of 7.5 ft (2.2 meters) or greater. Measurements must be taken from the exterior faces of exterior walls OR from the centerline of walls separating buildings, OR from the centerline of walls separating spaces. Excludes non‐enclosed (or non‐enclosable) roofed‐over areas such as exterior covered walkways, porches, terraces or steps, roof overhangs, and similar features. Excludes air shafts, pipe trenches, and chimneys. Excludes floor area dedicated to the parking and circulation of motor vehicles.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NetFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The floor area of an occupiable space defined by the inside surfaces of its walls but excluding shafts, column enclosures, and other permanently enclosed, inaccessible, and unoccupiable areas. Obstructions in the space such as furnishings, display or storage racks, and other obstructions, whether temporary or permanent, may not be deducted from the space are considered to be part of the net occupiable area.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedFloorArea" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] All finished space that is within the (insulated) conditioned space boundary (that is, within the insulated envelope), regardless of HVAC configuration.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FinishedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Floor area of home that is finished and assumed to be occupied.</xs:documentation></xs:annotation></xs:element><xs:element name="NumberofStoriesAboveGrade" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="CooledFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HeatedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnconditionedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] An enclosed space within a building that does not meet the requirements of a conditioned space. Spaces that have no control over thermal conditions but intentionally or unintentionally receive thermal energy from adjacent spaces are considered unconditioned spaces (such as an attached garage on a house or a vestibule with no thermal comfort criteria). Spaces that are ventilated only to maintain air quality are considered unconditioned spaces (such as a parking garage with no thermal comfort criteria).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] A volume of a building surrounded by solid surfaces such as walls, roofs, floors, fenestration, and doors where the total opening area to the outside can be reduced to less than 1% of the Gross Interior Floor Area of the space. Spaces that are temporarily enclosed such as patios enclosed with tenting are not considered Enclosed Spaces for annual building analysis. These spaces should be treated as exterior to the building.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedBuildingVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[cu.ft.] Volume inside the building envelope of the conditioned spaces. This metric can be calculated as the volume of the building if every space is conditioned or on a floor-by-floor basis. For spaces with vertical walls and horizontal ceilings and floors, this is calculated as the Gross Conditioned Floor Area times the height from the top surface of the finished floor to the top surface of the finished floor separating levels of the building or to the inside surface of the roof for the top floor. The volume of spaces that have nonvertical walls or nonhorizontal ceilings of floors should be calculated separately to properly account for the non-rectangular geometry. This metric does include the volume of floor or ceiling return air plenums.</xs:documentation></xs:annotation></xs:element><xs:element name="FoundationType" minOccurs="0" type="FoundationType"><xs:annotation><xs:documentation>Primary foundation type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"><xs:annotation><xs:documentation>Primary attic type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AverageAtticRValue" type="RValue" minOccurs="0"/><xs:element name="AverageWallRValue" type="RValue" minOccurs="0"/><xs:element name="AverageFloorRValue" type="RValue" minOccurs="0"/><xs:element name="AverageDuctRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" name="GaragePresent" type="xs:boolean"/><xs:element minOccurs="0" name="GarageLocation" type="GarageLocation"/><xs:element minOccurs="0" name="SpaceAboveGarage" type="SpaceAboveGarage"/><xs:element maxOccurs="unbounded" minOccurs="0" name="EnergyScore" type="EnergyScoreType"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>

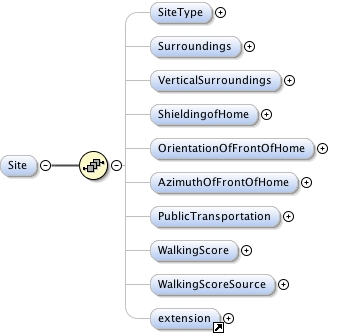

<xs:element minOccurs="0" name="Site"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="SiteType" type="SiteType"/><xs:element minOccurs="0" name="Surroundings" type="Surroundings"><xs:annotation><xs:documentation>If the building is attached to other units in the horizontal plane.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="VerticalSurroundings" type="VerticalSurroundings"><xs:annotation><xs:documentation>If the building is attached to other units on the vertical plane.</xs:documentation></xs:annotation></xs:element><xs:element name="ShieldingofHome" type="ShieldingofHome" minOccurs="0"/><xs:element minOccurs="0" name="OrientationOfFrontOfHome" type="OrientationType"/><xs:element minOccurs="0" name="AzimuthOfFrontOfHome" type="AzimuthType"/><xs:element minOccurs="0" name="PublicTransportation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="DistanceFromSubway" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromBus" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromTrain" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WalkingScore" type="IntegerGreaterThanOrEqualToZero"/><xs:element minOccurs="0" name="WalkingScoreSource" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Surroundings" type="Surroundings"><xs:annotation><xs:documentation>If the building is attached to other units in the horizontal plane.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="VerticalSurroundings" type="VerticalSurroundings"><xs:annotation><xs:documentation>If the building is attached to other units on the vertical plane.</xs:documentation></xs:annotation></xs:element>

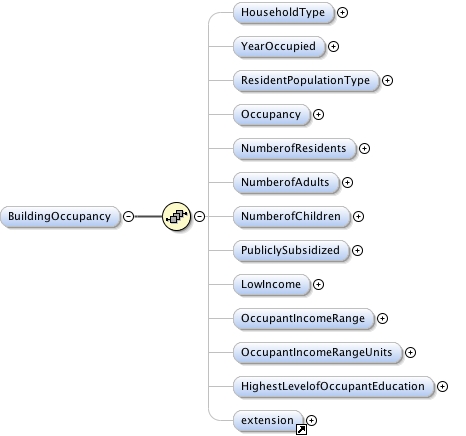

<xs:element minOccurs="0" name="BuildingOccupancy"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="HouseholdType" type="HouseholdType"/><xs:element minOccurs="0" name="YearOccupied" type="Year"><xs:annotation><xs:documentation>The year the current occupants moved into the building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ResidentPopulationType" type="ResidentPopulationType"/><xs:element minOccurs="0" name="Occupancy" type="Occupancy"/><xs:element name="NumberofResidents" type="PeopleCount" minOccurs="0"/><xs:element minOccurs="0" name="NumberofAdults" type="PeopleCount"><xs:annotation><xs:documentation>18 or older</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofChildren" type="IntegerGreaterThanOrEqualToZero"><xs:annotation><xs:documentation>less than 18 years old</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PubliclySubsidized" type="xs:boolean"/><xs:element minOccurs="0" name="LowIncome" type="xs:boolean"/><xs:element minOccurs="0" name="OccupantIncomeRange" type="FractionGreaterThanOne"><xs:annotation><xs:documentation>Percentage as a fraction (50% = 0.5)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="OccupantIncomeRangeUnits" type="OccupantIncomeRangeUnits"><xs:annotation><xs:documentation>AMI = Area Median Income; FPL = Federal Poverty Level</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HighestLevelofOccupantEducation" type="EducationLevels"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="YearOccupied" type="Year"><xs:annotation><xs:documentation>The year the current occupants moved into the building</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="NumberofChildren" type="IntegerGreaterThanOrEqualToZero"><xs:annotation><xs:documentation>less than 18 years old</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="OccupantIncomeRange" type="FractionGreaterThanOne"><xs:annotation><xs:documentation>Percentage as a fraction (50% = 0.5)</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="OccupantIncomeRangeUnits" type="OccupantIncomeRangeUnits"><xs:annotation><xs:documentation>AMI = Area Median Income; FPL = Federal Poverty Level</xs:documentation></xs:annotation></xs:element>

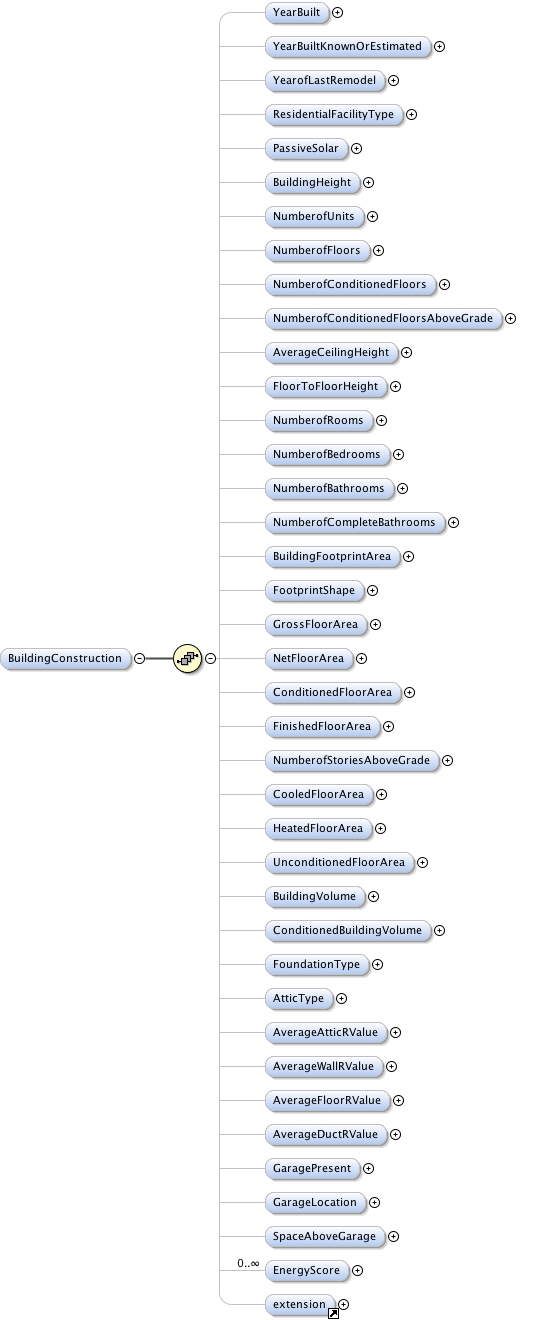

<xs:element minOccurs="0" name="BuildingConstruction"><xs:complexType><xs:sequence><xs:element name="YearBuilt" type="Year" minOccurs="0"/><xs:element minOccurs="0" name="YearBuiltKnownOrEstimated" type="KnownOrEstimated"/><xs:element minOccurs="0" name="YearofLastRemodel" type="Year"/><xs:element name="ResidentialFacilityType" type="ResidentialFacilityType" minOccurs="0"/><xs:element minOccurs="0" name="PassiveSolar" type="xs:boolean"><xs:annotation><xs:documentation>Passive solar design—also known as climatic design—involves using a building's windows, walls, and floors to collect, store, and distribute solar energy in the form of heat in the winter and reject solar heat in the summer. (source: http://www.eere.energy.gov/basics/buildings/passive_solar_design.html)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] height of building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofUnits" type="IntegerGreaterThanZero"/><xs:element minOccurs="0" name="NumberofFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Total number of floors including a basement, whether conditioned or unconditioned</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors that are heated/cooled including a basement</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloorsAboveGrade" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors above grade that are heated/cooled</xs:documentation></xs:annotation></xs:element><xs:element name="AverageCeilingHeight" type="LengthMeasurement" minOccurs="0"><xs:annotation><xs:documentation>[ft] Average distance from the floor to the ceiling</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorToFloorHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] distance between floors</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofRooms" type="IntegerGreaterThanZero"/><xs:element name="NumberofBedrooms" type="IntegerGreaterThanOrEqualToZero" minOccurs="0"/><xs:element name="NumberofBathrooms" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="NumberofCompleteBathrooms" type="IntegerGreaterThanZero"><xs:annotation><xs:documentation>Number of bathrooms with a tub or shower</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingFootprintArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FootprintShape" type="FootprintShape"/><xs:element minOccurs="0" name="GrossFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Gross floor area (based on ASHRAE definition) is the sum of the floor areas of the spaces within the building, including basements, mezzanine and intermediate‐floored tiers, and penthouses with headroom height of 7.5 ft (2.2 meters) or greater. Measurements must be taken from the exterior faces of exterior walls OR from the centerline of walls separating buildings, OR from the centerline of walls separating spaces. Excludes non‐enclosed (or non‐enclosable) roofed‐over areas such as exterior covered walkways, porches, terraces or steps, roof overhangs, and similar features. Excludes air shafts, pipe trenches, and chimneys. Excludes floor area dedicated to the parking and circulation of motor vehicles.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NetFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The floor area of an occupiable space defined by the inside surfaces of its walls but excluding shafts, column enclosures, and other permanently enclosed, inaccessible, and unoccupiable areas. Obstructions in the space such as furnishings, display or storage racks, and other obstructions, whether temporary or permanent, may not be deducted from the space are considered to be part of the net occupiable area.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedFloorArea" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] All finished space that is within the (insulated) conditioned space boundary (that is, within the insulated envelope), regardless of HVAC configuration.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FinishedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Floor area of home that is finished and assumed to be occupied.</xs:documentation></xs:annotation></xs:element><xs:element name="NumberofStoriesAboveGrade" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="CooledFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HeatedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnconditionedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] An enclosed space within a building that does not meet the requirements of a conditioned space. Spaces that have no control over thermal conditions but intentionally or unintentionally receive thermal energy from adjacent spaces are considered unconditioned spaces (such as an attached garage on a house or a vestibule with no thermal comfort criteria). Spaces that are ventilated only to maintain air quality are considered unconditioned spaces (such as a parking garage with no thermal comfort criteria).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] A volume of a building surrounded by solid surfaces such as walls, roofs, floors, fenestration, and doors where the total opening area to the outside can be reduced to less than 1% of the Gross Interior Floor Area of the space. Spaces that are temporarily enclosed such as patios enclosed with tenting are not considered Enclosed Spaces for annual building analysis. These spaces should be treated as exterior to the building.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedBuildingVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[cu.ft.] Volume inside the building envelope of the conditioned spaces. This metric can be calculated as the volume of the building if every space is conditioned or on a floor-by-floor basis. For spaces with vertical walls and horizontal ceilings and floors, this is calculated as the Gross Conditioned Floor Area times the height from the top surface of the finished floor to the top surface of the finished floor separating levels of the building or to the inside surface of the roof for the top floor. The volume of spaces that have nonvertical walls or nonhorizontal ceilings of floors should be calculated separately to properly account for the non-rectangular geometry. This metric does include the volume of floor or ceiling return air plenums.</xs:documentation></xs:annotation></xs:element><xs:element name="FoundationType" minOccurs="0" type="FoundationType"><xs:annotation><xs:documentation>Primary foundation type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"><xs:annotation><xs:documentation>Primary attic type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AverageAtticRValue" type="RValue" minOccurs="0"/><xs:element name="AverageWallRValue" type="RValue" minOccurs="0"/><xs:element name="AverageFloorRValue" type="RValue" minOccurs="0"/><xs:element name="AverageDuctRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" name="GaragePresent" type="xs:boolean"/><xs:element minOccurs="0" name="GarageLocation" type="GarageLocation"/><xs:element minOccurs="0" name="SpaceAboveGarage" type="SpaceAboveGarage"/><xs:element maxOccurs="unbounded" minOccurs="0" name="EnergyScore" type="EnergyScoreType"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Passive solar design—also known as climatic design—involves using a building's windows, walls, and floors to collect, store, and distribute solar energy in the form of heat in the winter and reject solar heat in the summer. (source: http://www.eere.energy.gov/basics/buildings/passive_solar_design.html)
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="PassiveSolar" type="xs:boolean"><xs:annotation><xs:documentation>Passive solar design—also known as climatic design—involves using a building's windows, walls, and floors to collect, store, and distribute solar energy in the form of heat in the winter and reject solar heat in the summer. (source: http://www.eere.energy.gov/basics/buildings/passive_solar_design.html)</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="NumberofFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Total number of floors including a basement, whether conditioned or unconditioned</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="NumberofConditionedFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors that are heated/cooled including a basement</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="NumberofConditionedFloorsAboveGrade" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors above grade that are heated/cooled</xs:documentation></xs:annotation></xs:element>
<xs:element name="AverageCeilingHeight" type="LengthMeasurement" minOccurs="0"><xs:annotation><xs:documentation>[ft] Average distance from the floor to the ceiling</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="NumberofCompleteBathrooms" type="IntegerGreaterThanZero"><xs:annotation><xs:documentation>Number of bathrooms with a tub or shower</xs:documentation></xs:annotation></xs:element>
[sq.ft.]Gross floor area (based on ASHRAE definition) is the sum of the floor areas of the spaces within the building, including basements, mezzanine and intermediate‐floored tiers, and penthouses with headroom height of 7.5 ft (2.2 meters) or greater. Measurements must be taken from the exterior faces of exterior walls OR from the centerline of walls separating buildings, OR from the centerline of walls separating spaces. Excludes non‐enclosed (or non‐enclosable) roofed‐over areas such as exterior covered walkways, porches, terraces or steps, roof overhangs, and similar features. Excludes air shafts, pipe trenches, and chimneys. Excludes floor area dedicated to the parking and circulation of motor vehicles.
<xs:element minOccurs="0" name="GrossFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Gross floor area (based on ASHRAE definition) is the sum of the floor areas of the spaces within the building, including basements, mezzanine and intermediate‐floored tiers, and penthouses with headroom height of 7.5 ft (2.2 meters) or greater. Measurements must be taken from the exterior faces of exterior walls OR from the centerline of walls separating buildings, OR from the centerline of walls separating spaces. Excludes non‐enclosed (or non‐enclosable) roofed‐over areas such as exterior covered walkways, porches, terraces or steps, roof overhangs, and similar features. Excludes air shafts, pipe trenches, and chimneys. Excludes floor area dedicated to the parking and circulation of motor vehicles.</xs:documentation></xs:annotation></xs:element>
[sq.ft.]The floor area of an occupiable space defined by the inside surfaces of its walls but excluding shafts, column enclosures, and other permanently enclosed, inaccessible, and unoccupiable areas. Obstructions in the space such as furnishings, display or storage racks, and other obstructions, whether temporary or permanent, may not be deducted from the space are considered to be part of the net occupiable area.
<xs:element minOccurs="0" name="NetFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The floor area of an occupiable space defined by the inside surfaces of its walls but excluding shafts, column enclosures, and other permanently enclosed, inaccessible, and unoccupiable areas. Obstructions in the space such as furnishings, display or storage racks, and other obstructions, whether temporary or permanent, may not be deducted from the space are considered to be part of the net occupiable area.</xs:documentation></xs:annotation></xs:element>
[sq.ft.]All finished space that is within the (insulated) conditioned space boundary (that is, within the insulated envelope), regardless of HVAC configuration.
<xs:element name="ConditionedFloorArea" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] All finished space that is within the (insulated) conditioned space boundary (that is, within the insulated envelope), regardless of HVAC configuration.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FinishedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Floor area of home that is finished and assumed to be occupied.</xs:documentation></xs:annotation></xs:element>
[sq.ft.]The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.
<xs:element minOccurs="0" name="CooledFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element>
[sq.ft.]The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.
<xs:element minOccurs="0" name="HeatedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element>
[sq.ft.]An enclosed space within a building that does not meet the requirements of a conditioned space. Spaces that have no control over thermal conditions but intentionally or unintentionally receive thermal energy from adjacent spaces are considered unconditioned spaces (such as an attached garage on a house or a vestibule with no thermal comfort criteria). Spaces that are ventilated only to maintain air quality are considered unconditioned spaces (such as a parking garage with no thermal comfort criteria).
<xs:element minOccurs="0" name="UnconditionedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] An enclosed space within a building that does not meet the requirements of a conditioned space. Spaces that have no control over thermal conditions but intentionally or unintentionally receive thermal energy from adjacent spaces are considered unconditioned spaces (such as an attached garage on a house or a vestibule with no thermal comfort criteria). Spaces that are ventilated only to maintain air quality are considered unconditioned spaces (such as a parking garage with no thermal comfort criteria).</xs:documentation></xs:annotation></xs:element>
[cu.ft.]A volume of a building surrounded by solid surfaces such as walls, roofs, floors, fenestration, and doors where the total opening area to the outside can be reduced to less than 1% of the Gross Interior Floor Area of the space. Spaces that are temporarily enclosed such as patios enclosed with tenting are not considered Enclosed Spaces for annual building analysis. These spaces should be treated as exterior to the building.
<xs:element minOccurs="0" name="BuildingVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] A volume of a building surrounded by solid surfaces such as walls, roofs, floors, fenestration, and doors where the total opening area to the outside can be reduced to less than 1% of the Gross Interior Floor Area of the space. Spaces that are temporarily enclosed such as patios enclosed with tenting are not considered Enclosed Spaces for annual building analysis. These spaces should be treated as exterior to the building.</xs:documentation></xs:annotation></xs:element>
[cu.ft.]Volume inside the building envelope of the conditioned spaces. This metric can be calculated as the volume of the building if every space is conditioned or on a floor-by-floor basis. For spaces with vertical walls and horizontal ceilings and floors, this is calculated as the Gross Conditioned Floor Area times the height from the top surface of the finished floor to the top surface of the finished floor separating levels of the building or to the inside surface of the roof for the top floor. The volume of spaces that have nonvertical walls or nonhorizontal ceilings of floors should be calculated separately to properly account for the non-rectangular geometry. This metric does include the volume of floor or ceiling return air plenums.
<xs:element name="ConditionedBuildingVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[cu.ft.] Volume inside the building envelope of the conditioned spaces. This metric can be calculated as the volume of the building if every space is conditioned or on a floor-by-floor basis. For spaces with vertical walls and horizontal ceilings and floors, this is calculated as the Gross Conditioned Floor Area times the height from the top surface of the finished floor to the top surface of the finished floor separating levels of the building or to the inside surface of the roof for the top floor. The volume of spaces that have nonvertical walls or nonhorizontal ceilings of floors should be calculated separately to properly account for the non-rectangular geometry. This metric does include the volume of floor or ceiling return air plenums.</xs:documentation></xs:annotation></xs:element>

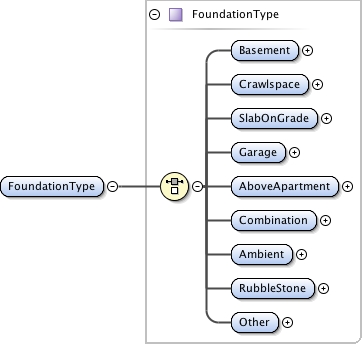

<xs:element name="FoundationType" minOccurs="0" type="FoundationType"><xs:annotation><xs:documentation>Primary foundation type of building</xs:documentation></xs:annotation></xs:element>
<xs:element name="AboveApartment"><xs:annotation><xs:documentation>for single unit retrofits in multifamily properties</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element name="Ambient"><xs:annotation><xs:documentation>For use on sections of the house that are cantilevered or over ambient (outdoor) conditions for some other reason.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element name="AtticType" type="AtticType" minOccurs="0"><xs:annotation><xs:documentation>Primary attic type of building</xs:documentation></xs:annotation></xs:element>

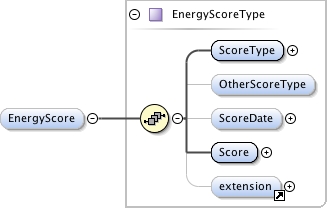

The Home Energy Score is an asset rating for homes, developed and administered by the U.S. Department of Energy. After conducting a brief walk thru of a home, a qualified assessor calculates a home's score on a 10 point scale using a standard scoring tool, with 10 reflecting homes that use the least amount of energy assuming standard operating conditions (US DOE).The Home Energy Rating System (HERS) index is a measure of a home's energy efficiency. It can also be used to inspect and calculate a home's energy performance. The lower a home's HERS Index Score, the better its efficiency.
Diagram
Type
restriction of xs:string
Properties
content
simple
Facets
enumeration
RESNET HERS
enumeration
US DOE Home Energy Score
enumeration
other
Source
<xs:element name="ScoreType"><xs:annotation><xs:documentation>The Home Energy Score is an asset rating for homes, developed and administered by the U.S. Department of Energy. After conducting a brief walk thru of a home, a qualified assessor calculates a home's score on a 10 point scale using a standard scoring tool, with 10 reflecting homes that use the least amount of energy assuming standard operating conditions (US DOE). The Home Energy Rating System (HERS) index is a measure of a home's energy efficiency. It can also be used to inspect and calculate a home's energy performance. The lower a home's HERS Index Score, the better its efficiency.</xs:documentation></xs:annotation><xs:simpleType><xs:restriction base="xs:string"><xs:enumeration value="RESNET HERS"/><xs:enumeration value="US DOE Home Energy Score"/><xs:enumeration value="other"/></xs:restriction></xs:simpleType></xs:element>
Name of the score type if "other" is selected in ScoreType.
Diagram
Properties
minOccurs
0
Source
<xs:element minOccurs="0" name="OtherScoreType"><xs:annotation><xs:documentation>Name of the score type if "other" is selected in ScoreType.</xs:documentation></xs:annotation></xs:element>

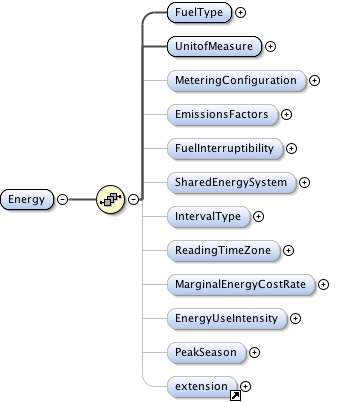

<xs:element name="Energy"><xs:complexType><xs:sequence><xs:element name="FuelType" type="FuelType"><xs:annotation><xs:documentation>Energy Type</xs:documentation></xs:annotation></xs:element><xs:element name="UnitofMeasure" type="energyUnitType"/><xs:element minOccurs="0" name="MeteringConfiguration" type="MeteringConfiguration"><xs:annotation><xs:documentation>direct metering = tenants directly metered; master meter without sub-metering = tenants not sub metered; master meter with sub-metering = tenant sub-metered by building owner</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EmissionsFactors"><xs:complexType><xs:sequence><xs:element name="EmissionsFactor" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:element name="EmissionType" type="EmissionType"/><xs:element name="EmissionUnits" type="EmissionUnits"/><xs:element name="Emissions" type="xs:double"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="FuelInterruptibility" type="FuelInterruptibility"/><xs:element minOccurs="0" name="SharedEnergySystem" type="SharedEnergySystem"/><xs:element minOccurs="0" name="IntervalType" type="IntervalType"/><xs:element minOccurs="0" name="ReadingTimeZone" type="xs:string"/><xs:element minOccurs="0" name="MarginalEnergyCostRate" type="xs:double"><xs:annotation><xs:documentation>[$/energy unit] The cost of providing an additional unit of output</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyUseIntensity" type="xs:double"><xs:annotation><xs:documentation>[kBtu/ft^2] Energy use intensity (EUI) is a unit of measurement that describes a building's energy use. EUI represents the energy consumed by a building relative to its size.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PeakSeason" type="PeakSeason"><xs:annotation><xs:documentation>Period during which electrical power is expected to be provided at a significantly higher than average supply level.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
direct metering = tenants directly metered;master meter without sub-metering = tenants not sub metered;master meter with sub-metering = tenant sub-metered by building owner
<xs:element minOccurs="0" name="MeteringConfiguration" type="MeteringConfiguration"><xs:annotation><xs:documentation>direct metering = tenants directly metered; master meter without sub-metering = tenants not sub metered; master meter with sub-metering = tenant sub-metered by building owner</xs:documentation></xs:annotation></xs:element>
[$/energy unit] The cost of providing an additional unit of output
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="MarginalEnergyCostRate" type="xs:double"><xs:annotation><xs:documentation>[$/energy unit] The cost of providing an additional unit of output</xs:documentation></xs:annotation></xs:element>
[kBtu/ft^2] Energy use intensity (EUI) is a unit of measurement that describes a building's energy use. EUI represents the energy consumed by a building relative to its size.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="EnergyUseIntensity" type="xs:double"><xs:annotation><xs:documentation>[kBtu/ft^2] Energy use intensity (EUI) is a unit of measurement that describes a building's energy use. EUI represents the energy consumed by a building relative to its size.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="PeakSeason" type="PeakSeason"><xs:annotation><xs:documentation>Period during which electrical power is expected to be provided at a significantly higher than average supply level.</xs:documentation></xs:annotation></xs:element>

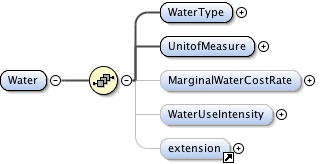

<xs:element name="Water"><xs:complexType><xs:sequence><xs:element name="WaterType" type="WaterType"/><xs:element name="UnitofMeasure" type="waterUnitType"/><xs:element minOccurs="0" name="MarginalWaterCostRate" type="xs:double"/><xs:element minOccurs="0" name="WaterUseIntensity"><xs:annotation><xs:documentation>Water use intensity is defined as annual water use divided by total gross square footage of facility space reported in gallons per square foot (DOE, 2013). This element may also be reported as gallons, per day, per person.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Units" type="WaterUseIntensityUnits"/><xs:element name="Value" type="xs:double"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Water use intensity is defined as annual water use divided by total gross square footage of facility space reported in gallons per square foot (DOE, 2013). This element may also be reported as gallons, per day, per person.
<xs:element minOccurs="0" name="WaterUseIntensity"><xs:annotation><xs:documentation>Water use intensity is defined as annual water use divided by total gross square footage of facility space reported in gallons per square foot (DOE, 2013). This element may also be reported as gallons, per day, per person.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Units" type="WaterUseIntensityUnits"/><xs:element name="Value" type="xs:double"/></xs:sequence></xs:complexType></xs:element>

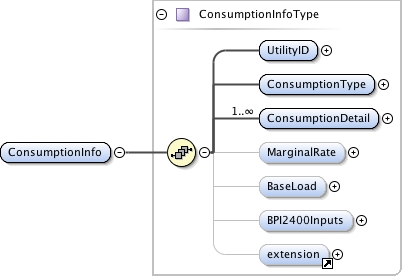

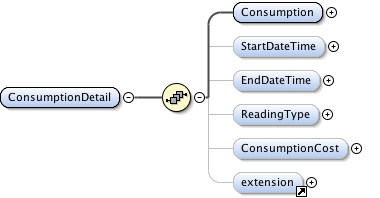

<xs:element maxOccurs="unbounded" name="ConsumptionDetail"><xs:annotation><xs:documentation>Consumption records with enough granularity to be able to use smart meter data.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Consumption" type="xs:double"><xs:annotation><xs:documentation>Negative number for renewable generation. Positive number for consumption.</xs:documentation></xs:annotation></xs:element><xs:element name="StartDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp in the ISO 8601 format when the usage measured began.</xs:documentation></xs:annotation></xs:element><xs:element name="EndDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp of the meter reading.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ReadingType" type="MeterReadingType"/><xs:element name="ConsumptionCost" type="xs:double" minOccurs="0"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
Negative number for renewable generation. Positive number for consumption.
Diagram
Type
xs:double
Properties
content
simple
Source
<xs:element name="Consumption" type="xs:double"><xs:annotation><xs:documentation>Negative number for renewable generation. Positive number for consumption.</xs:documentation></xs:annotation></xs:element>
Date/time stamp in the ISO 8601 format when the usage measured began.
Diagram
Type
xs:dateTime
Properties
content
simple
minOccurs
0
Source
<xs:element name="StartDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp in the ISO 8601 format when the usage measured began.</xs:documentation></xs:annotation></xs:element>
<xs:element name="EndDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp of the meter reading.</xs:documentation></xs:annotation></xs:element>
Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="BaseLoad" type="xs:double"><xs:annotation><xs:documentation>Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).</xs:documentation></xs:annotation></xs:element>

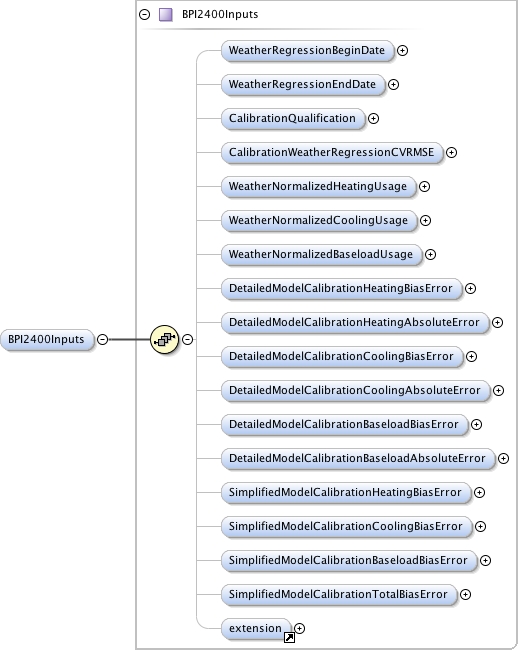

<xs:element minOccurs="0" name="BPI2400Inputs" type="BPI2400Inputs"><xs:annotation><xs:documentation>The following fields are to support BPI-2400</xs:documentation></xs:annotation></xs:element>
This identifies which data quality requirements were met by the bills for each energy source and therefore which calibration measure are used to determine model acceptance.
<xs:element minOccurs="0" name="CalibrationQualification" type="BPI2400CalibrationQualification"><xs:annotation><xs:documentation>This identifies which data quality requirements were met by the bills for each energy source and therefore which calibration measure are used to determine model acceptance.</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / DetailedModelCalibrationHeatingAbsoluteError
Namespace
http://hpxmlonline.com/2014/6
Annotations
Eqn. 3.2.3.A.ii of BPI-2400. In either kWh for electricity or MMBTU for all other fuels.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="DetailedModelCalibrationHeatingAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>Eqn. 3.2.3.A.ii of BPI-2400. In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / DetailedModelCalibrationCoolingAbsoluteError
Namespace
http://hpxmlonline.com/2014/6
Annotations
In either kWh for electricity or MMBTU for all other fuels.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="DetailedModelCalibrationCoolingAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / DetailedModelCalibrationBaseloadAbsoluteError
Namespace
http://hpxmlonline.com/2014/6
Annotations
In either kWh for electricity or MMBTU for all other fuels.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="DetailedModelCalibrationBaseloadAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / SimplifiedModelCalibrationHeatingBiasError
Namespace
http://hpxmlonline.com/2014/6
Annotations
Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
nillable
true
Source
<xs:element minOccurs="0" name="SimplifiedModelCalibrationHeatingBiasError" nillable="true" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / SimplifiedModelCalibrationCoolingBiasError
Namespace
http://hpxmlonline.com/2014/6
Annotations
Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="SimplifiedModelCalibrationCoolingBiasError" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / SimplifiedModelCalibrationBaseloadBiasError
Namespace
http://hpxmlonline.com/2014/6
Annotations
Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
nillable
true
Source
<xs:element minOccurs="0" name="SimplifiedModelCalibrationBaseloadBiasError" nillable="true" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element>
Element BPI2400Inputs / SimplifiedModelCalibrationTotalBiasError
Namespace
http://hpxmlonline.com/2014/6
Annotations
Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="SimplifiedModelCalibrationTotalBiasError" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element>

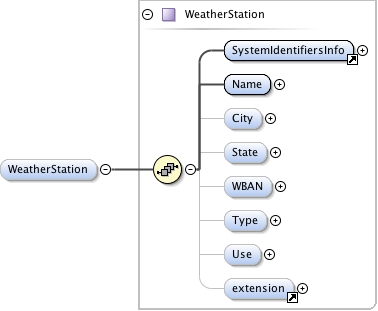

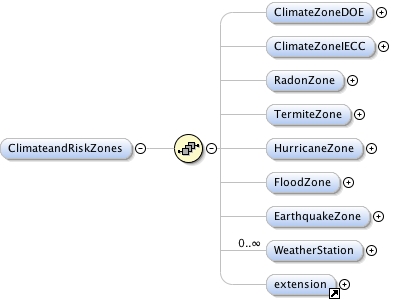

<xs:element maxOccurs="unbounded" minOccurs="0" name="WeatherStation" type="WeatherStation"><xs:annotation><xs:documentation>Weather location used in model simulation and/or utility bill regression analysis</xs:documentation></xs:annotation></xs:element>

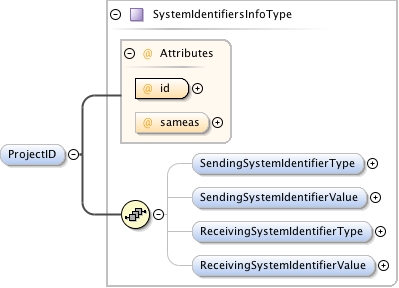

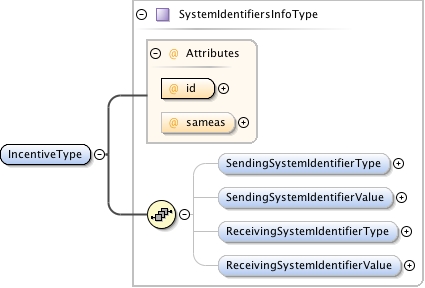

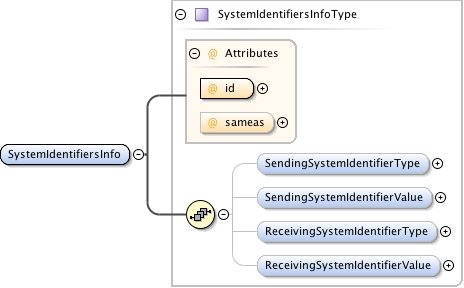

System identifiers contain type codes and an identifier for both a sending and a receiving system. These fields are needed to be able to transmit data between two systems, and have it identified in the two systems.
Use to reference the id of the same object on the base building where the object has not been replaced.
Source
<xs:element name="SystemIdentifiersInfo" type="SystemIdentifiersInfoType"><xs:annotation><xs:documentation>System identifiers contain type codes and an identifier for both a sending and a receiving system. These fields are needed to be able to transmit data between two systems, and have it identified in the two systems.</xs:documentation></xs:annotation></xs:element>
<xs:element name="HousePressure" type="HousePressure" minOccurs="0"><xs:annotation><xs:documentation>[Pa] with respect to outside</xs:documentation></xs:annotation></xs:element>
[sq.in.] The Effective Leakage Area is defined as the area of a special nozzle-shaped hole (similar to the inlet of a blower door fan) that would leak the same amount of air as the building does at a pressure of 4 Pascals.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="EffectiveLeakageArea" type="xs:double"><xs:annotation><xs:documentation>[sq.in.] The Effective Leakage Area is defined as the area of a special nozzle-shaped hole (similar to the inlet of a blower door fan) that would leak the same amount of air as the building does at a pressure of 4 Pascals.</xs:documentation></xs:annotation></xs:element>

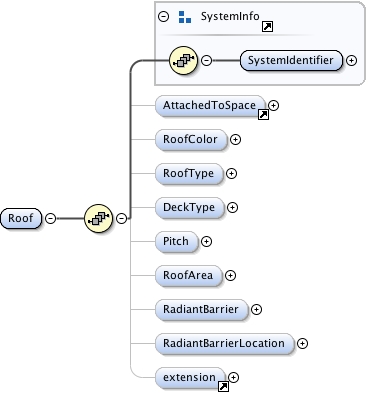

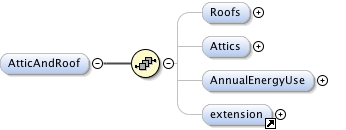

<xs:element minOccurs="0" name="RoofArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Surface area of the roof itself</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Attics"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="Attic"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"><xs:annotation><xs:documentation>The space over which this attic is</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="ExteriorAdjacentTo" type="AdjacentTo" minOccurs="0"></xs:element><xs:element minOccurs="0" name="InteriorAdjacentTo" type="AdjacentTo"/><xs:element maxOccurs="unbounded" minOccurs="0" name="AtticKneeWall" type="LocalReference"></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"/><xs:element minOccurs="0" name="AtticFloorInsulation" type="InsulationInfo"><xs:annotation><xs:documentation>For attic floor insulation that covers the rafters, two layers should be defined: 1.) a cavity later with thickness equal to the rafter height, and 2.) a continuous layer above that.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AtticRoofInsulation" type="InsulationInfo"/><xs:element name="Area" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] Area of the floor of the attic.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Rafters" type="StudProperties"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

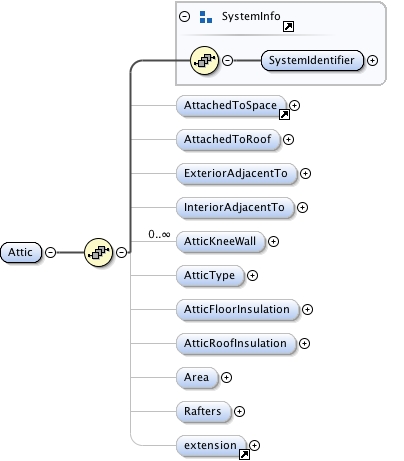

<xs:element maxOccurs="unbounded" name="Attic"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"><xs:annotation><xs:documentation>The space over which this attic is</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="ExteriorAdjacentTo" type="AdjacentTo" minOccurs="0"></xs:element><xs:element minOccurs="0" name="InteriorAdjacentTo" type="AdjacentTo"/><xs:element maxOccurs="unbounded" minOccurs="0" name="AtticKneeWall" type="LocalReference"></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"/><xs:element minOccurs="0" name="AtticFloorInsulation" type="InsulationInfo"><xs:annotation><xs:documentation>For attic floor insulation that covers the rafters, two layers should be defined: 1.) a cavity later with thickness equal to the rafter height, and 2.) a continuous layer above that.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AtticRoofInsulation" type="InsulationInfo"/><xs:element name="Area" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] Area of the floor of the attic.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Rafters" type="StudProperties"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>

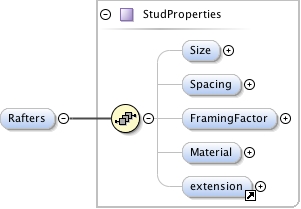

For attic floor insulation that covers the rafters, two layers should be defined: 1.) a cavity later with thickness equal to the rafter height, and 2.) a continuous layer above that.

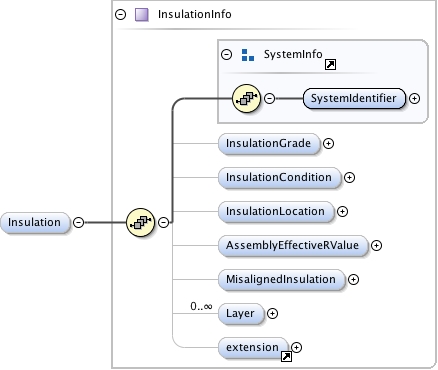

<xs:element minOccurs="0" name="AtticFloorInsulation" type="InsulationInfo"><xs:annotation><xs:documentation>For attic floor insulation that covers the rafters, two layers should be defined: 1.) a cavity later with thickness equal to the rafter height, and 2.) a continuous layer above that.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="AssemblyEffectiveRValue" type="RValue"><xs:annotation><xs:documentation>This should indicate the effective R-value of the complete assembly including any air films or other treatments.</xs:documentation></xs:annotation></xs:element>
<xs:element name="Area" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] Area of the floor of the attic.</xs:documentation></xs:annotation></xs:element>
<xs:element name="Foundations" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Foundation" maxOccurs="unbounded"><xs:annotation><xs:documentation>Use a different Foundation element for each type of foundation.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element name="FoundationType" type="FoundationType"/><xs:element minOccurs="0" name="ThermalBoundary" type="FoundationThermalBoundary"/><xs:element name="FrameFloor" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="FloorJoists" type="StudProperties"/><xs:element minOccurs="0" name="FloorTrusses" type="StudProperties"/><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" maxOccurs="1" name="Insulation" type="InsulationInfo"></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="FoundationWall" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="FoundationWallType"/><xs:element minOccurs="0" name="Length" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total length of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Height" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total height in feet of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of foundation wall excluding interior framing.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BelowGradeDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth below grade of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentToFoundation" type="LocalReference"><xs:annotation><xs:documentation>If this foundation wall is adjacent to another foundation, use this reference to indicate which one.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="InteriorStuds" type="StudProperties"/><xs:element maxOccurs="1" minOccurs="0" name="Insulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Slab" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Area of the slab</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Perimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Length of slab perimeter.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of the slab exposed to ambient conditions</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PerimeterInsulationDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from grade to bottom of vertical slab perimeter insulation</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnderSlabInsulationWidth" type="LengthMeasurement"/><xs:element minOccurs="0" name="OnGradeExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of slab measuerd in feet that is on-grade (2 ft. below grade or less) and exposed to ambient conditions.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DepthBelowGrade" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from the top of the slab surface to grade</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element maxOccurs="1" minOccurs="0" name="PerimeterInsulation" type="InsulationInfo"/><xs:element minOccurs="0" name="UnderSlabInsulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

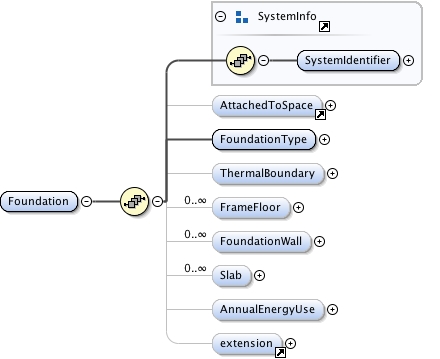

<xs:element name="Foundation" maxOccurs="unbounded"><xs:annotation><xs:documentation>Use a different Foundation element for each type of foundation.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element name="FoundationType" type="FoundationType"/><xs:element minOccurs="0" name="ThermalBoundary" type="FoundationThermalBoundary"/><xs:element name="FrameFloor" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="FloorJoists" type="StudProperties"/><xs:element minOccurs="0" name="FloorTrusses" type="StudProperties"/><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" maxOccurs="1" name="Insulation" type="InsulationInfo"></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="FoundationWall" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="FoundationWallType"/><xs:element minOccurs="0" name="Length" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total length of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Height" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total height in feet of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of foundation wall excluding interior framing.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BelowGradeDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth below grade of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentToFoundation" type="LocalReference"><xs:annotation><xs:documentation>If this foundation wall is adjacent to another foundation, use this reference to indicate which one.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="InteriorStuds" type="StudProperties"/><xs:element maxOccurs="1" minOccurs="0" name="Insulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Slab" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Area of the slab</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Perimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Length of slab perimeter.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of the slab exposed to ambient conditions</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PerimeterInsulationDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from grade to bottom of vertical slab perimeter insulation</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnderSlabInsulationWidth" type="LengthMeasurement"/><xs:element minOccurs="0" name="OnGradeExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of slab measuerd in feet that is on-grade (2 ft. below grade or less) and exposed to ambient conditions.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DepthBelowGrade" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from the top of the slab surface to grade</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element maxOccurs="1" minOccurs="0" name="PerimeterInsulation" type="InsulationInfo"/><xs:element minOccurs="0" name="UnderSlabInsulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>

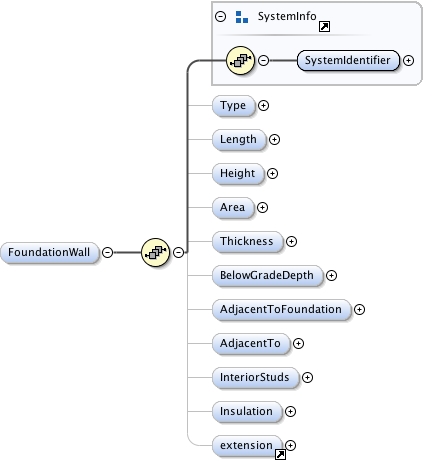

<xs:element name="FoundationWall" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="FoundationWallType"/><xs:element minOccurs="0" name="Length" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total length of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Height" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total height in feet of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of foundation wall excluding interior framing.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BelowGradeDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth below grade of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentToFoundation" type="LocalReference"><xs:annotation><xs:documentation>If this foundation wall is adjacent to another foundation, use this reference to indicate which one.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="InteriorStuds" type="StudProperties"/><xs:element maxOccurs="1" minOccurs="0" name="Insulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Length" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total length of foundation wall</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Height" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total height in feet of foundation wall</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="BelowGradeDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth below grade of foundation wall</xs:documentation></xs:annotation></xs:element>

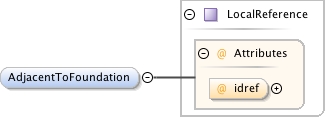

<xs:element minOccurs="0" name="AdjacentToFoundation" type="LocalReference"><xs:annotation><xs:documentation>If this foundation wall is adjacent to another foundation, use this reference to indicate which one.</xs:documentation></xs:annotation></xs:element>
<xs:element name="Slab" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Area of the slab</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Perimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Length of slab perimeter.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of the slab exposed to ambient conditions</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PerimeterInsulationDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from grade to bottom of vertical slab perimeter insulation</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnderSlabInsulationWidth" type="LengthMeasurement"/><xs:element minOccurs="0" name="OnGradeExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of slab measuerd in feet that is on-grade (2 ft. below grade or less) and exposed to ambient conditions.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DepthBelowGrade" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from the top of the slab surface to grade</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element maxOccurs="1" minOccurs="0" name="PerimeterInsulation" type="InsulationInfo"/><xs:element minOccurs="0" name="UnderSlabInsulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Area of the slab</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of the slab exposed to ambient conditions</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="PerimeterInsulationDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from grade to bottom of vertical slab perimeter insulation</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="OnGradeExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of slab measuerd in feet that is on-grade (2 ft. below grade or less) and exposed to ambient conditions.</xs:documentation></xs:annotation></xs:element>

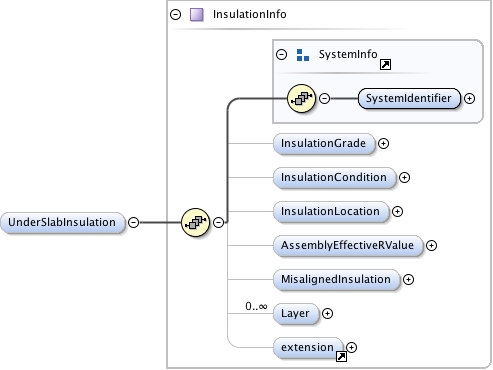

<xs:element minOccurs="0" name="DepthBelowGrade" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from the top of the slab surface to grade</xs:documentation></xs:annotation></xs:element>

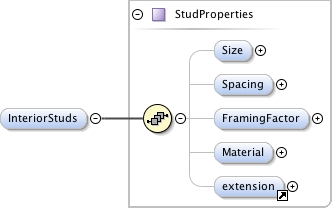

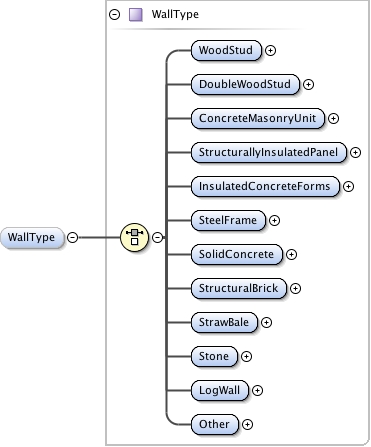

<xs:element name="WoodStud"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="ExpandedPolystyreneSheathing" type="xs:boolean"><xs:annotation><xs:documentation>Sheathing insulation should be specified in the Insulation element as well.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="OptimumValueEngineering" type="xs:boolean"><xs:annotation><xs:documentation>Please specify stud spacing and framing factor in the appropriate places as well.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Sheathing insulation should be specified in the Insulation element as well.
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="ExpandedPolystyreneSheathing" type="xs:boolean"><xs:annotation><xs:documentation>Sheathing insulation should be specified in the Insulation element as well.</xs:documentation></xs:annotation></xs:element>
Please specify stud spacing and framing factor in the appropriate places as well.
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="OptimumValueEngineering" type="xs:boolean"><xs:annotation><xs:documentation>Please specify stud spacing and framing factor in the appropriate places as well.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of the wall assembly</xs:documentation></xs:annotation></xs:element>
<xs:element name="Windows" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Window" maxOccurs="unbounded"><xs:annotation><xs:documentation>The Window element can be used to describe a single window or a group of windows with the same characteristics. For a group of windows, use the sum of the window areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="WindowtoWallRatio" type="Fraction"/><xs:element minOccurs="0" name="AttachedToWall" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

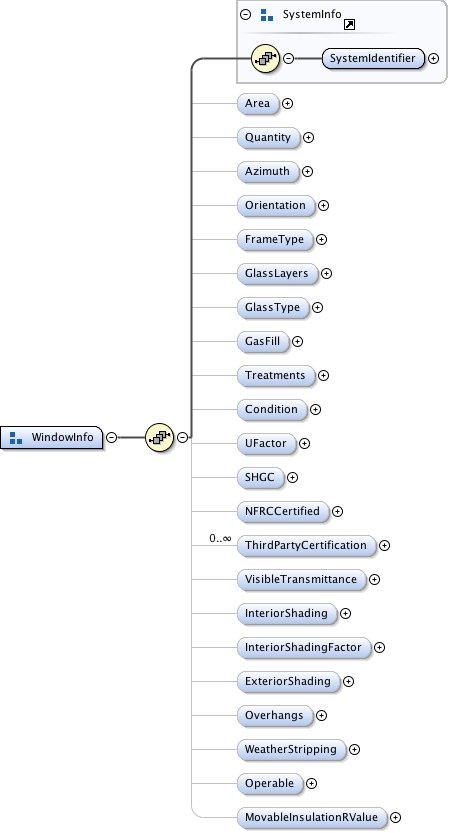

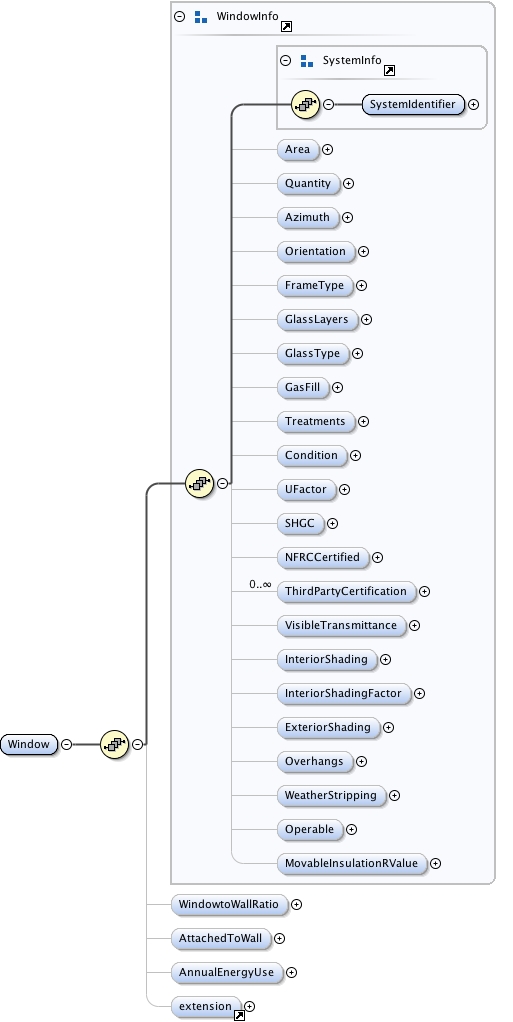

The Window element can be used to describe a single window or a group of windows with the same characteristics. For a group of windows, use the sum of the window areas in the Area subelement.
<xs:element name="Window" maxOccurs="unbounded"><xs:annotation><xs:documentation>The Window element can be used to describe a single window or a group of windows with the same characteristics. For a group of windows, use the sum of the window areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="WindowtoWallRatio" type="Fraction"/><xs:element minOccurs="0" name="AttachedToWall" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
<xs:element name="Area" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] Total window surface area for this group of windows</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Quantity" type="IntegerGreaterThanZero"><xs:annotation><xs:documentation>Number of windows in the group</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Overhangs"><xs:complexType><xs:sequence><xs:element name="Depth" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Depth of overhang</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceToTopOfWindow" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Vertical distance from overhang to top of window</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceToBottomOfWindow" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Vertical distance from overhang to bottom of window</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="DistanceToTopOfWindow" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Vertical distance from overhang to top of window</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="DistanceToBottomOfWindow" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Vertical distance from overhang to bottom of window</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="MovableInsulationRValue" type="RValue"><xs:annotation><xs:documentation>Rigid opaque foam panels (permanently installed or not) or cellular shades that provide insulation.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Skylights"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="Skylight"><xs:annotation><xs:documentation>The Skylight element can be used to describe a single skylight or a group of skylights with the same characteristics. For a group of skylights, use the sum of the skylight areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="SolarTube" type="xs:boolean"/><xs:element minOccurs="0" name="Pitch" type="Pitch"><xs:annotation><xs:documentation>Pitch of skylight ?/12</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>
The Skylight element can be used to describe a single skylight or a group of skylights with the same characteristics. For a group of skylights, use the sum of the skylight areas in the Area subelement.
<xs:element maxOccurs="unbounded" name="Skylight"><xs:annotation><xs:documentation>The Skylight element can be used to describe a single skylight or a group of skylights with the same characteristics. For a group of skylights, use the sum of the skylight areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="SolarTube" type="xs:boolean"/><xs:element minOccurs="0" name="Pitch" type="Pitch"><xs:annotation><xs:documentation>Pitch of skylight ?/12</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>

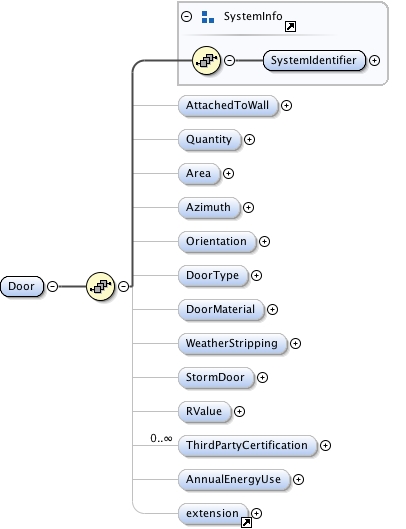

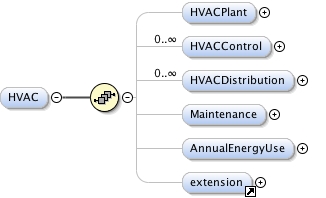

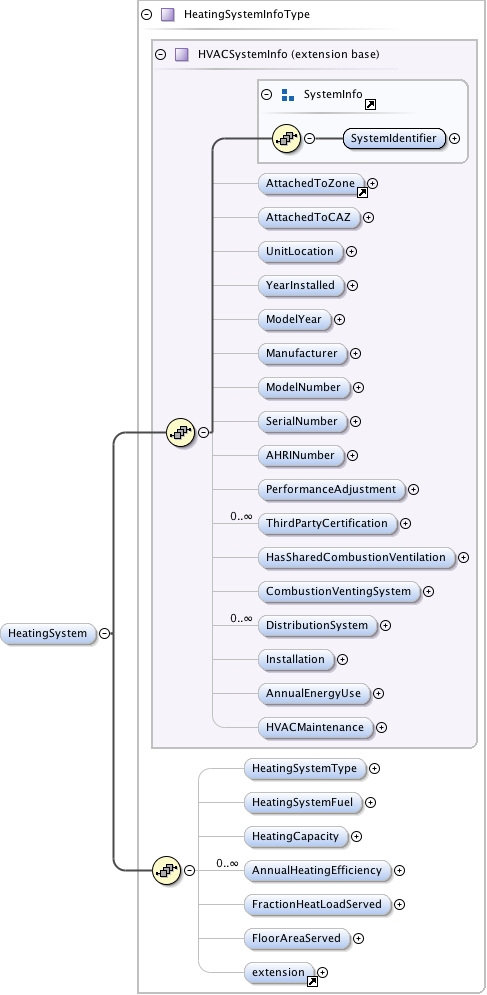

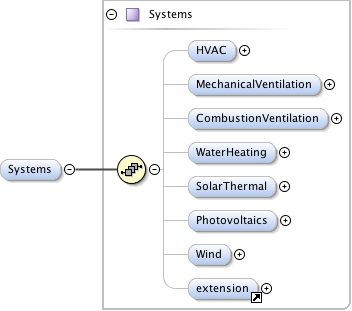

<xs:element name="HVAC" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="HVACPlant" minOccurs="0"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PrimarySystems"><xs:annotation><xs:documentation>Use these to reference which heating, cooling, or heat pump are the primary systems.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PrimaryHeatingSystem" type="LocalReference"/><xs:element minOccurs="0" name="PrimaryCoolingSystem" type="LocalReference"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" maxOccurs="unbounded" name="HeatingSystem" type="HeatingSystemInfoType"/><xs:element minOccurs="0" maxOccurs="unbounded" name="CoolingSystem" type="CoolingSystemInfoType"/><xs:element minOccurs="0" maxOccurs="unbounded" name="HeatPump" type="HeatPumpInfoType"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HVACControl" type="HVACControlType"></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HVACDistribution"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="DistributionSystemType"><xs:complexType><xs:choice><xs:element name="AirDistribution" type="AirDistributionInfo"/><xs:element name="HydronicDistribution" type="HydronicDistributionInfo"/><xs:element name="Other" type="xs:string"><xs:annotation><xs:documentation>describe</xs:documentation></xs:annotation></xs:element></xs:choice></xs:complexType></xs:element><xs:element minOccurs="0" name="ConditionedFloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Conditioned floor area that this distribution system serves.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualHeatingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for heating, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualCoolingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for cooling, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HVACDistributionImprovement" type="HVACDistributionImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Maintenance"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Schedule" type="HVACMaintenanceSchedule"/><xs:element minOccurs="0" name="ACReplacedinLastTenYears" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>

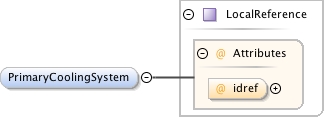

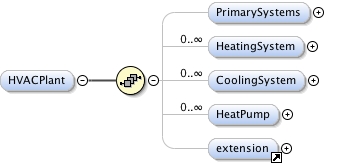

<xs:element minOccurs="0" name="PrimarySystems"><xs:annotation><xs:documentation>Use these to reference which heating, cooling, or heat pump are the primary systems.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PrimaryHeatingSystem" type="LocalReference"/><xs:element minOccurs="0" name="PrimaryCoolingSystem" type="LocalReference"/></xs:sequence></xs:complexType></xs:element>

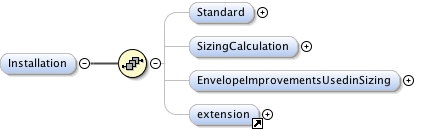

<xs:element minOccurs="0" name="Installation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Standard" type="HVACInstallationStandard"/><xs:element minOccurs="0" name="SizingCalculation" type="HVACSizingCalcs"/><xs:element minOccurs="0" name="EnvelopeImprovementsUsedinSizing" type="xs:boolean"><xs:annotation><xs:documentation>Air sealing and insulation implemented prior to replacement and used in calculations for sizing new / replacement system?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Air sealing and insulation implemented prior to replacement and used in calculations for sizing new / replacement system?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="EnvelopeImprovementsUsedinSizing" type="xs:boolean"><xs:annotation><xs:documentation>Air sealing and insulation implemented prior to replacement and used in calculations for sizing new / replacement system?</xs:documentation></xs:annotation></xs:element>

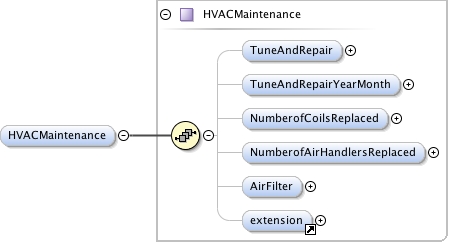

Year and month of the last tune and repair for this HVAC equipment.
Diagram
Type
xs:gYearMonth
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="TuneAndRepairYearMonth" type="xs:gYearMonth"><xs:annotation><xs:documentation>Year and month of the last tune and repair for this HVAC equipment.</xs:documentation></xs:annotation></xs:element>

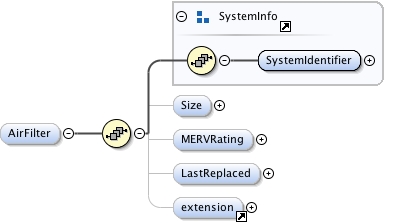

<xs:element minOccurs="0" name="AirFilter"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Size"><xs:annotation><xs:documentation>Width x Length x Thickness</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Width"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Length"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Thickness"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="MERVRating" type="MERV"><xs:annotation><xs:documentation>Minimum efficiency reporting value, commonly known as MERV rating, is a measurement scale designed in 1987 by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) to rate the effectiveness of air filters.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LastReplaced" type="xs:gYearMonth"><xs:annotation><xs:documentation>The Year and Month the filter was last replacced.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Size"><xs:annotation><xs:documentation>Width x Length x Thickness</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Width"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Length"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Thickness"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>
Minimum efficiency reporting value, commonly known as MERV rating, is a measurement scale designed in 1987 by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) to rate the effectiveness of air filters.
<xs:element minOccurs="0" name="MERVRating" type="MERV"><xs:annotation><xs:documentation>Minimum efficiency reporting value, commonly known as MERV rating, is a measurement scale designed in 1987 by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) to rate the effectiveness of air filters.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="LastReplaced" type="xs:gYearMonth"><xs:annotation><xs:documentation>The Year and Month the filter was last replacced.</xs:documentation></xs:annotation></xs:element>

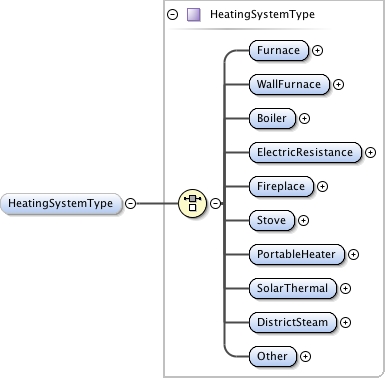

[grams per hour] from EPA labelhttp://www.epa.gov/compliance/monitoring/programs/caa/woodheaters.html
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="SmokeEmissionRate" type="xs:double"><xs:annotation><xs:documentation>[grams per hour] from EPA label http://www.epa.gov/compliance/monitoring/programs/caa/woodheaters.html</xs:documentation></xs:annotation></xs:element>
[grams per hour] from EPA labelhttp://www.epa.gov/compliance/monitoring/programs/caa/woodheaters.html
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="SmokeEmissionRate" type="xs:double"><xs:annotation><xs:documentation>[grams per hour] from EPA label http://www.epa.gov/compliance/monitoring/programs/caa/woodheaters.html</xs:documentation></xs:annotation></xs:element>

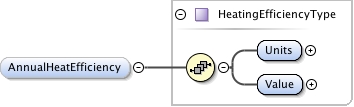

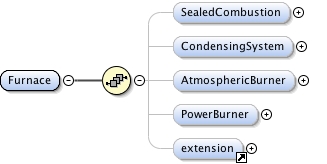

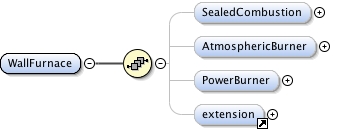

<xs:element name="Units" type="HeatingEfficiencyUnits"><xs:annotation><xs:documentation>For AFUE and Percent enter values as a fractional number between 0 and 1, i.e. 80% = 0.8</xs:documentation></xs:annotation></xs:element>
<xs:element name="HeatingCapacity" type="Capacity" minOccurs="0"><xs:annotation><xs:documentation>[Btuh] Typically the nameplate capacity at 47F.</xs:documentation></xs:annotation></xs:element>

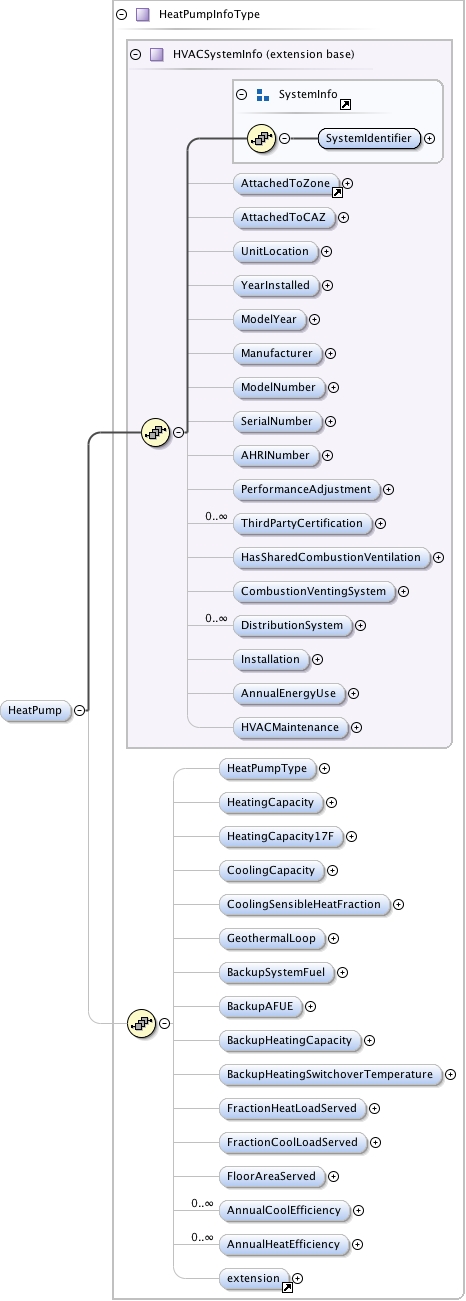

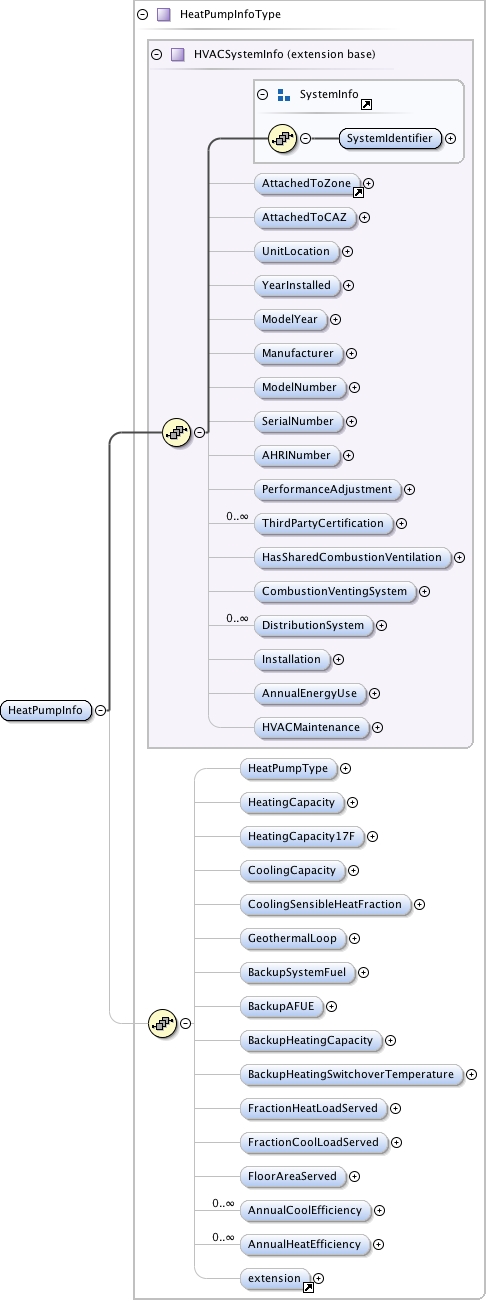

<xs:element minOccurs="0" name="HeatingCapacity17F" type="Capacity"><xs:annotation><xs:documentation>[Btuh] Capacity at 17F from AHRI database.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="BackupHeatingSwitchoverTemperature" type="Temperature"><xs:annotation><xs:documentation>[deg F] Temperature at which the backup heating is activated.</xs:documentation></xs:annotation></xs:element>

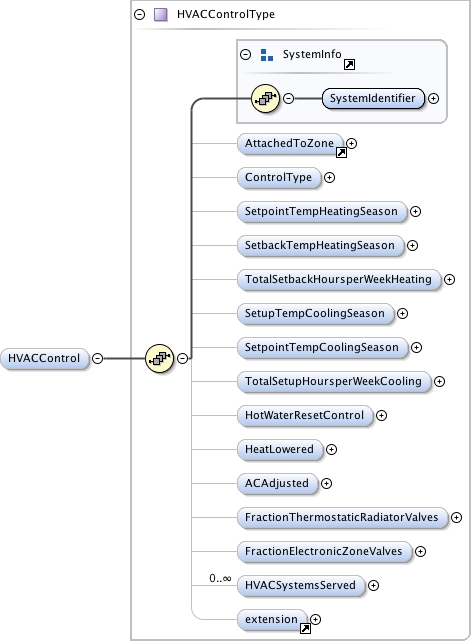

<xs:element minOccurs="0" name="FractionElectronicZoneValves" type="Fraction"><xs:annotation><xs:documentation>Percent of rooms controlled by electronic zone valves with thermostats</xs:documentation></xs:annotation></xs:element>

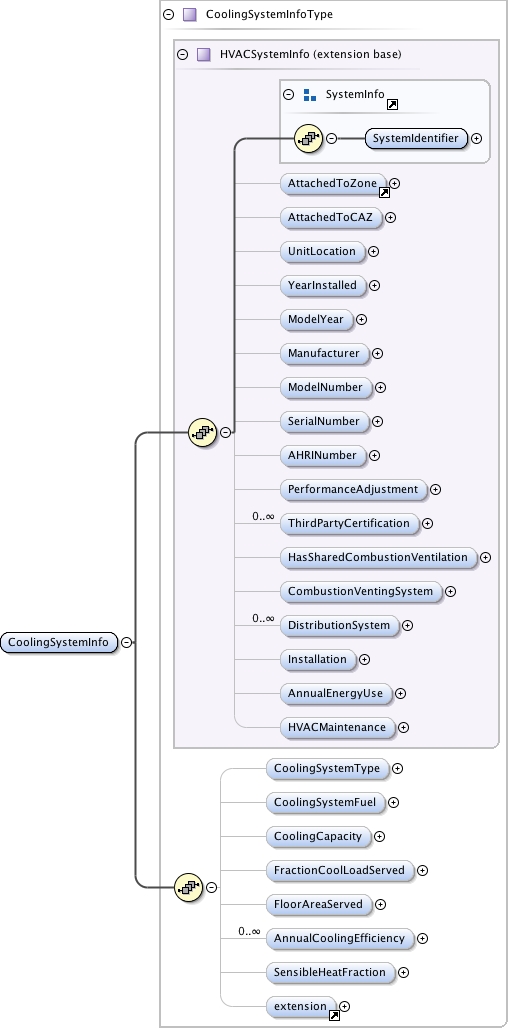

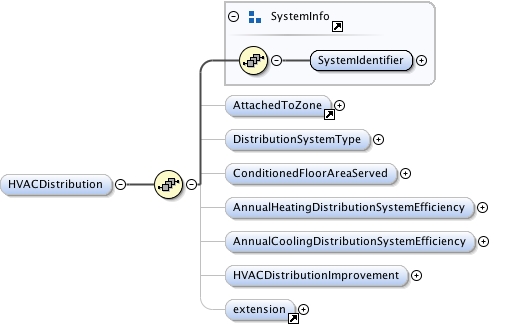

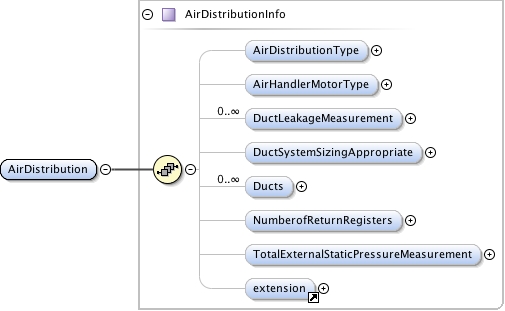

<xs:element maxOccurs="unbounded" minOccurs="0" name="HVACDistribution"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="DistributionSystemType"><xs:complexType><xs:choice><xs:element name="AirDistribution" type="AirDistributionInfo"/><xs:element name="HydronicDistribution" type="HydronicDistributionInfo"/><xs:element name="Other" type="xs:string"><xs:annotation><xs:documentation>describe</xs:documentation></xs:annotation></xs:element></xs:choice></xs:complexType></xs:element><xs:element minOccurs="0" name="ConditionedFloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Conditioned floor area that this distribution system serves.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualHeatingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for heating, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualCoolingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for cooling, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HVACDistributionImprovement" type="HVACDistributionImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
The Leakage Area is defined in TECBLAST as the size of a sharp edged orifice which would leak at the same flow rate as the measured leakage, if the orifice were subjected to the Test Pressure.Leakage Area [sq in] = Duct System Leakage Rate [CFM] / (1.06 * (Test Pressure [Pa]) ^ 0.5)
<xs:element minOccurs="0" name="EffectiveLeakageArea" type="SurfaceArea"><xs:annotation><xs:documentation>The Leakage Area is defined in TECBLAST as the size of a sharp edged orifice which would leak at the same flow rate as the measured leakage, if the orifice were subjected to the Test Pressure. Leakage Area [sq in] = Duct System Leakage Rate [CFM] / (1.06 * (Test Pressure [Pa]) ^ 0.5)</xs:documentation></xs:annotation></xs:element>
<xs:element maxOccurs="unbounded" minOccurs="0" name="Ducts"><xs:complexType><xs:sequence><xs:element name="DuctType" type="DuctType" minOccurs="0"/><xs:element name="DuctMaterial" type="DuctMaterial" minOccurs="0"/><xs:element name="DuctInsulationRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" name="DuctInsulationThickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DuctInsulationCondition" type="InsulationCondition"/><xs:element name="DuctLocation" type="DuctLocation" minOccurs="0"/><xs:element minOccurs="0" name="FractionDuctArea" type="Fraction"><xs:annotation><xs:documentation>If a DuctType of supply or return is specified above, this is the fraction of the supply or return duct area. If DuctType is omitted above, this is the fraction of the total duct area.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DuctSurfaceArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
If a DuctType of supply or return is specified above, this is the fraction of the supply or return duct area. If DuctType is omitted above, this is the fraction of the total duct area.
<xs:element minOccurs="0" name="FractionDuctArea" type="Fraction"><xs:annotation><xs:documentation>If a DuctType of supply or return is specified above, this is the fraction of the supply or return duct area. If DuctType is omitted above, this is the fraction of the total duct area.</xs:documentation></xs:annotation></xs:element>

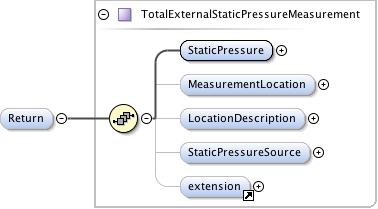

[Pa] positive for supply side measurements, negative for return side.
Diagram
Type
xs:double
Properties
content
simple
Source
<xs:element name="StaticPressure" type="xs:double"><xs:annotation><xs:documentation>[Pa] positive for supply side measurements, negative for return side.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ValveCorrections" type="xs:boolean"><xs:annotation><xs:documentation>System Pump and Zone Valve Corrections made</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ConditionedFloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Conditioned floor area that this distribution system serves.</xs:documentation></xs:annotation></xs:element>
For software that does not calculate an annual distribution system efficiency (DSE) for heating, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="AnnualHeatingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for heating, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element>
For software that does not calculate an annual distribution system efficiency (DSE) for cooling, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="AnnualCoolingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for cooling, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="DuctSystemSealedYearMonth" type="xs:gYearMonth"><xs:annotation><xs:documentation>The year and month the duct system was sealed.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="MechanicalVentilation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="VentilationFans"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="VentilationFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="FanType" type="VentilationFanType"/><xs:element minOccurs="0" name="RatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as rated by manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CalculatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as calculated using duct size, prescriptive approach</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as tested by assessor/auditor/inspector</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursInOperation" type="HoursPerDay"><xs:annotation><xs:documentation>24 = continuous, less than 24 = intermittent</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DeliveredVentilation" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanControlProperlyLabeled" type="BooleanWithNA"/><xs:element minOccurs="0" name="ProperlyVented" type="BooleanWithNA"/><xs:element minOccurs="0" name="FanLocation" type="VentilationFanLocation"/><xs:element minOccurs="0" name="UsedForLocalVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForWholeBuildingVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForSeasonalCoolingLoadReduction" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForGarageVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="RatedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] from manufacturer's info</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] as tested in field</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SensibleRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanPower" type="xs:double"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="VentilationFanThirdPartyCertification"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="VentilationFans"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="VentilationFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="FanType" type="VentilationFanType"/><xs:element minOccurs="0" name="RatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as rated by manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CalculatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as calculated using duct size, prescriptive approach</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as tested by assessor/auditor/inspector</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursInOperation" type="HoursPerDay"><xs:annotation><xs:documentation>24 = continuous, less than 24 = intermittent</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DeliveredVentilation" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanControlProperlyLabeled" type="BooleanWithNA"/><xs:element minOccurs="0" name="ProperlyVented" type="BooleanWithNA"/><xs:element minOccurs="0" name="FanLocation" type="VentilationFanLocation"/><xs:element minOccurs="0" name="UsedForLocalVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForWholeBuildingVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForSeasonalCoolingLoadReduction" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForGarageVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="RatedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] from manufacturer's info</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] as tested in field</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SensibleRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanPower" type="xs:double"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="VentilationFanThirdPartyCertification"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

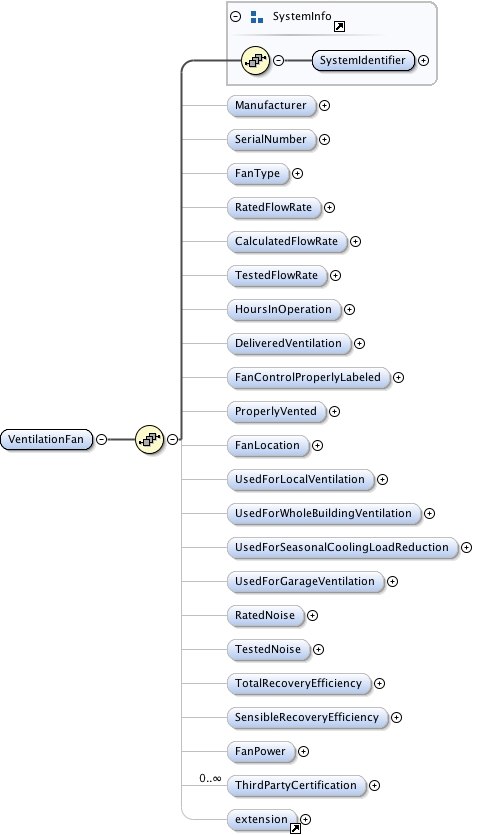

<xs:element maxOccurs="unbounded" name="VentilationFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="FanType" type="VentilationFanType"/><xs:element minOccurs="0" name="RatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as rated by manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CalculatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as calculated using duct size, prescriptive approach</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as tested by assessor/auditor/inspector</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursInOperation" type="HoursPerDay"><xs:annotation><xs:documentation>24 = continuous, less than 24 = intermittent</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DeliveredVentilation" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanControlProperlyLabeled" type="BooleanWithNA"/><xs:element minOccurs="0" name="ProperlyVented" type="BooleanWithNA"/><xs:element minOccurs="0" name="FanLocation" type="VentilationFanLocation"/><xs:element minOccurs="0" name="UsedForLocalVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForWholeBuildingVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForSeasonalCoolingLoadReduction" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForGarageVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="RatedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] from manufacturer's info</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] as tested in field</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SensibleRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanPower" type="xs:double"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="VentilationFanThirdPartyCertification"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="RatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as rated by manufacturer</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="TestedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as tested by assessor/auditor/inspector</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="TestedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] as tested in field</xs:documentation></xs:annotation></xs:element>
The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).
<xs:element minOccurs="0" name="TotalRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element>
The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).
<xs:element minOccurs="0" name="SensibleRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element>

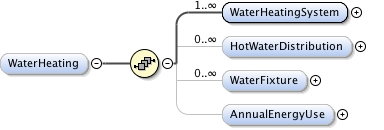

<xs:element name="WaterHeating" minOccurs="0"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="WaterHeatingSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="AttachedToCAZ" type="LocalReference"/><xs:element name="FuelType" type="FuelType" minOccurs="0"/><xs:element name="WaterHeaterType" type="WaterHeaterType" minOccurs="0"/><xs:element name="Location" type="UnitLocation" minOccurs="0"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element name="ModelYear" type="Year" minOccurs="0"/><xs:element name="Manufacturer" type="Manufacturer" minOccurs="0"/><xs:element name="ModelNumber" type="Model" minOccurs="0"/><xs:element minOccurs="0" name="AHRINumber" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="PerformanceAdjustment" type="Fraction"/><xs:element minOccurs="0" name="ThirdPartyCertification" type="DHWThirdPartyCertification" maxOccurs="unbounded"/><xs:element name="TankVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[gal]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionDHWLoadServed" type="Fraction"/><xs:element name="HeatingCapacity" type="Capacity" minOccurs="0"><xs:annotation><xs:documentation>[Btuh]</xs:documentation></xs:annotation></xs:element><xs:element name="EnergyFactor" type="EnergyFactor" minOccurs="0"><xs:annotation><xs:documentation>The amount of energy delivered as heated water in a day divided by the total daily energy consumption of a residential water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FirstHourRating" type="Volume"><xs:annotation><xs:documentation>[gal per hour] An estimate of the maximum volume of hot water in gallons that a storage water heater can supply within an hour that begins with the water heater fully heated.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GallonsPerMinute" type="Volume"><xs:annotation><xs:documentation>[gal per minute] The amount of gallons per minute of hot water that can be supplied by an instantaneous water heater while maintaining a nominal temperature rise of 77°F during steady state operation.</xs:documentation></xs:annotation></xs:element><xs:element name="RecoveryEfficiency" type="RecoveryEfficiency" minOccurs="0"><xs:annotation><xs:documentation>The ratio of energy delivered to heat cold water compared to the energy consumed by the water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element name="ThermalEfficiency" type="ThermalEfficiency" minOccurs="0"/><xs:element minOccurs="0" name="WaterHeaterInsulation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Jacket"><xs:complexType><xs:sequence><xs:element name="JacketRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Pipe" type="PipeInsulationType"><xs:annotation><xs:documentation>DEPRECATED. This will be removed in v3.0. Use HotWaterDistribution element instead.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="MeetsACCA5QIHVACSpecification" type="xs:boolean" minOccurs="0"/><xs:element name="HotWaterTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasGeothermalDesuperheater" type="xs:boolean"><xs:annotation><xs:documentation>Indicates whether this water heater has a geothermal desuperheater. The attached heat pump can be referenced in the RelatedHeatingSystem element.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasSharedCombustionVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="CombustionVentilationOrphaned" type="xs:boolean"/><xs:element name="CombustionVentingSystem" minOccurs="0" type="LocalReference"></xs:element><xs:element name="RelatedHeatingSystem" type="LocalReference" minOccurs="0"/><xs:element minOccurs="0" name="Installation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Standard" type="HVACInstallationStandard"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WaterHeaterImprovement" type="WaterHeaterImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HotWaterDistribution"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="AttachedToWaterHeatingSystem" type="LocalReference"><xs:annotation><xs:documentation>The water heating system that his distribution system serves.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SystemType"><xs:complexType><xs:choice><xs:element name="Standard"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PipingLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Recirculation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="ControlType" type="RecirculationControlType"/><xs:element minOccurs="0" name="RecirculationPipingLoopLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BranchPipingLoopLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PumpPower" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:choice></xs:complexType></xs:element><xs:element minOccurs="0" name="PipeInsulation" type="PipeInsulationType"/><xs:element minOccurs="0" name="DrainWaterHeatRecovery"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FacilitiesConnected" type="DrainWaterHeatRecoveryFacilitiesConnected"/><xs:element minOccurs="0" name="EqualFlow" type="xs:boolean"/><xs:element minOccurs="0" name="Efficiency" type="Fraction"><xs:annotation><xs:documentation>Efficiency percent expressed as a fraction from 0-1.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="WaterFixture"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:choice minOccurs="0"><xs:element name="AttachedToWaterHeatingSystem" type="LocalReference"/><xs:element name="AttachedToHotWaterDistribution" type="LocalReference"/></xs:choice><xs:element minOccurs="1" name="WaterFixtureType" type="WaterFixtureType"/><xs:element minOccurs="0" name="FlowRate" type="xs:double"><xs:annotation><xs:documentation>[gallons per minute] flow rate of water</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FaucetAerator" type="xs:boolean"><xs:annotation><xs:documentation>Does this faucet have an aerator?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TemperatureInitiatedShowerFlowRestrictionValve" type="xs:boolean"><xs:annotation><xs:documentation>Does the shower have a device that restricts the flow of water automatically once it has reached temperature?</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="WaterFixtureThirdPartyCertification"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>
<xs:element maxOccurs="unbounded" name="WaterHeatingSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="AttachedToCAZ" type="LocalReference"/><xs:element name="FuelType" type="FuelType" minOccurs="0"/><xs:element name="WaterHeaterType" type="WaterHeaterType" minOccurs="0"/><xs:element name="Location" type="UnitLocation" minOccurs="0"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element name="ModelYear" type="Year" minOccurs="0"/><xs:element name="Manufacturer" type="Manufacturer" minOccurs="0"/><xs:element name="ModelNumber" type="Model" minOccurs="0"/><xs:element minOccurs="0" name="AHRINumber" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="PerformanceAdjustment" type="Fraction"/><xs:element minOccurs="0" name="ThirdPartyCertification" type="DHWThirdPartyCertification" maxOccurs="unbounded"/><xs:element name="TankVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[gal]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionDHWLoadServed" type="Fraction"/><xs:element name="HeatingCapacity" type="Capacity" minOccurs="0"><xs:annotation><xs:documentation>[Btuh]</xs:documentation></xs:annotation></xs:element><xs:element name="EnergyFactor" type="EnergyFactor" minOccurs="0"><xs:annotation><xs:documentation>The amount of energy delivered as heated water in a day divided by the total daily energy consumption of a residential water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FirstHourRating" type="Volume"><xs:annotation><xs:documentation>[gal per hour] An estimate of the maximum volume of hot water in gallons that a storage water heater can supply within an hour that begins with the water heater fully heated.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GallonsPerMinute" type="Volume"><xs:annotation><xs:documentation>[gal per minute] The amount of gallons per minute of hot water that can be supplied by an instantaneous water heater while maintaining a nominal temperature rise of 77°F during steady state operation.</xs:documentation></xs:annotation></xs:element><xs:element name="RecoveryEfficiency" type="RecoveryEfficiency" minOccurs="0"><xs:annotation><xs:documentation>The ratio of energy delivered to heat cold water compared to the energy consumed by the water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element name="ThermalEfficiency" type="ThermalEfficiency" minOccurs="0"/><xs:element minOccurs="0" name="WaterHeaterInsulation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Jacket"><xs:complexType><xs:sequence><xs:element name="JacketRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Pipe" type="PipeInsulationType"><xs:annotation><xs:documentation>DEPRECATED. This will be removed in v3.0. Use HotWaterDistribution element instead.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="MeetsACCA5QIHVACSpecification" type="xs:boolean" minOccurs="0"/><xs:element name="HotWaterTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasGeothermalDesuperheater" type="xs:boolean"><xs:annotation><xs:documentation>Indicates whether this water heater has a geothermal desuperheater. The attached heat pump can be referenced in the RelatedHeatingSystem element.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasSharedCombustionVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="CombustionVentilationOrphaned" type="xs:boolean"/><xs:element name="CombustionVentingSystem" minOccurs="0" type="LocalReference"></xs:element><xs:element name="RelatedHeatingSystem" type="LocalReference" minOccurs="0"/><xs:element minOccurs="0" name="Installation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Standard" type="HVACInstallationStandard"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WaterHeaterImprovement" type="WaterHeaterImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
The amount of energy delivered as heated water in a day divided by the total daily energy consumption of a residential water heater, as determined following standardized DOE testing procedure.
<xs:element name="EnergyFactor" type="EnergyFactor" minOccurs="0"><xs:annotation><xs:documentation>The amount of energy delivered as heated water in a day divided by the total daily energy consumption of a residential water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element>
[gal per hour] An estimate of the maximum volume of hot water in gallons that a storage water heater can supply within an hour that begins with the water heater fully heated.
<xs:element minOccurs="0" name="FirstHourRating" type="Volume"><xs:annotation><xs:documentation>[gal per hour] An estimate of the maximum volume of hot water in gallons that a storage water heater can supply within an hour that begins with the water heater fully heated.</xs:documentation></xs:annotation></xs:element>
[gal per minute] The amount of gallons per minute of hot water that can be supplied by an instantaneous water heater while maintaining a nominal temperature rise of 77°F during steady state operation.
<xs:element minOccurs="0" name="GallonsPerMinute" type="Volume"><xs:annotation><xs:documentation>[gal per minute] The amount of gallons per minute of hot water that can be supplied by an instantaneous water heater while maintaining a nominal temperature rise of 77°F during steady state operation.</xs:documentation></xs:annotation></xs:element>
The ratio of energy delivered to heat cold water compared to the energy consumed by the water heater, as determined following standardized DOE testing procedure.
<xs:element name="RecoveryEfficiency" type="RecoveryEfficiency" minOccurs="0"><xs:annotation><xs:documentation>The ratio of energy delivered to heat cold water compared to the energy consumed by the water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="WaterHeaterInsulation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Jacket"><xs:complexType><xs:sequence><xs:element name="JacketRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Pipe" type="PipeInsulationType"><xs:annotation><xs:documentation>DEPRECATED. This will be removed in v3.0. Use HotWaterDistribution element instead.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>

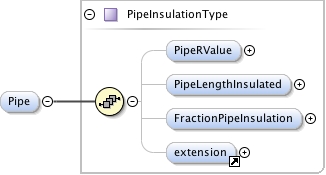

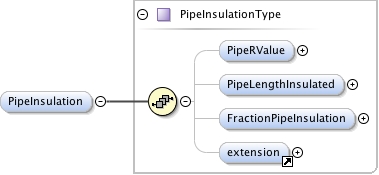

<xs:element minOccurs="0" name="Pipe" type="PipeInsulationType"><xs:annotation><xs:documentation>DEPRECATED. This will be removed in v3.0. Use HotWaterDistribution element instead.</xs:documentation></xs:annotation></xs:element>
<xs:element name="FractionPipeInsulation" type="Fraction" minOccurs="0"><xs:annotation><xs:documentation>Fraction of total pipe insulated</xs:documentation></xs:annotation></xs:element>
Indicates whether this water heater has a geothermal desuperheater. The attached heat pump can be referenced in the RelatedHeatingSystem element.
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="HasGeothermalDesuperheater" type="xs:boolean"><xs:annotation><xs:documentation>Indicates whether this water heater has a geothermal desuperheater. The attached heat pump can be referenced in the RelatedHeatingSystem element.</xs:documentation></xs:annotation></xs:element>

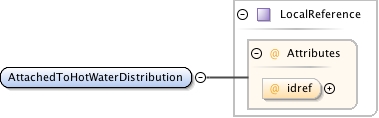

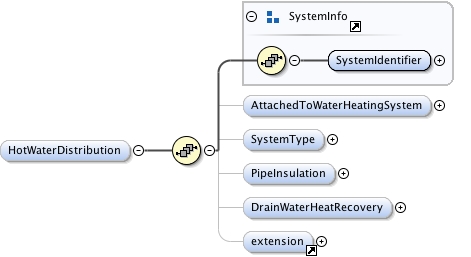

<xs:element minOccurs="0" name="AttachedToWaterHeatingSystem" type="LocalReference"><xs:annotation><xs:documentation>The water heating system that his distribution system serves.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Efficiency" type="Fraction"><xs:annotation><xs:documentation>Efficiency percent expressed as a fraction from 0-1.</xs:documentation></xs:annotation></xs:element>

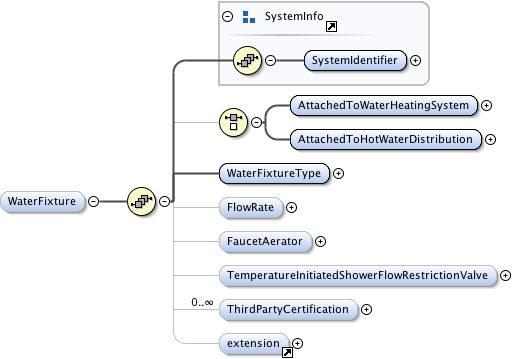

<xs:element maxOccurs="unbounded" minOccurs="0" name="WaterFixture"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:choice minOccurs="0"><xs:element name="AttachedToWaterHeatingSystem" type="LocalReference"/><xs:element name="AttachedToHotWaterDistribution" type="LocalReference"/></xs:choice><xs:element minOccurs="1" name="WaterFixtureType" type="WaterFixtureType"/><xs:element minOccurs="0" name="FlowRate" type="xs:double"><xs:annotation><xs:documentation>[gallons per minute] flow rate of water</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FaucetAerator" type="xs:boolean"><xs:annotation><xs:documentation>Does this faucet have an aerator?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TemperatureInitiatedShowerFlowRestrictionValve" type="xs:boolean"><xs:annotation><xs:documentation>Does the shower have a device that restricts the flow of water automatically once it has reached temperature?</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="WaterFixtureThirdPartyCertification"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="FlowRate" type="xs:double"><xs:annotation><xs:documentation>[gallons per minute] flow rate of water</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FaucetAerator" type="xs:boolean"><xs:annotation><xs:documentation>Does this faucet have an aerator?</xs:documentation></xs:annotation></xs:element>
Does the shower have a device that restricts the flow of water automatically once it has reached temperature?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="TemperatureInitiatedShowerFlowRestrictionValve" type="xs:boolean"><xs:annotation><xs:documentation>Does the shower have a device that restricts the flow of water automatically once it has reached temperature?</xs:documentation></xs:annotation></xs:element>
<xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="WaterFixtureThirdPartyCertification"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question.</xs:documentation></xs:annotation></xs:element>

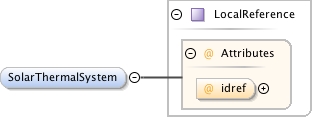

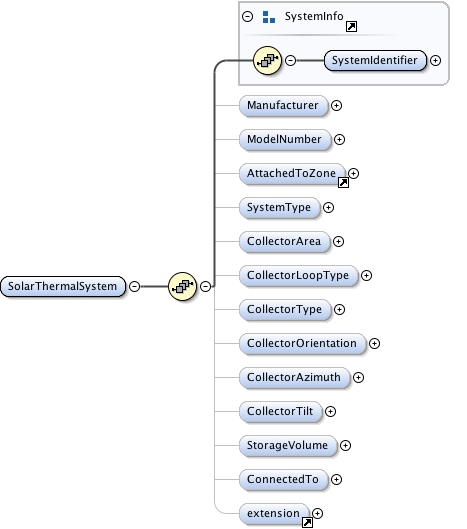

<xs:element minOccurs="0" name="CollectorLoopType" type="SolarThermalCollectorLoopType"><xs:annotation><xs:documentation>"batch heater" enumeration is deprecated. It will be removed in a future version. See #272.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Photovoltaics"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="PVSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Location" type="PVSystemLocation"/><xs:element minOccurs="0" name="Ownership" type="PVSystemOwnership"/><xs:element minOccurs="0" name="ArrayOrientation" type="OrientationType"/><xs:element minOccurs="0" name="ArrayAzimuth" type="AzimuthType"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ArrayTilt" type="Tilt"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MaxPowerOutput" type="Power"><xs:annotation><xs:documentation>[DC Watts] Peak power as supplied by the manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CollectorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="InverterEfficiency" type="Efficiency"/><xs:element minOccurs="0" name="YearInverterManufactured" type="Year"/><xs:element minOccurs="0" name="YearModulesManufactured" type="Year"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="AnnualOutput" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] Projected Annual Output for a typical meterological year as determined by PVWatts or similar.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

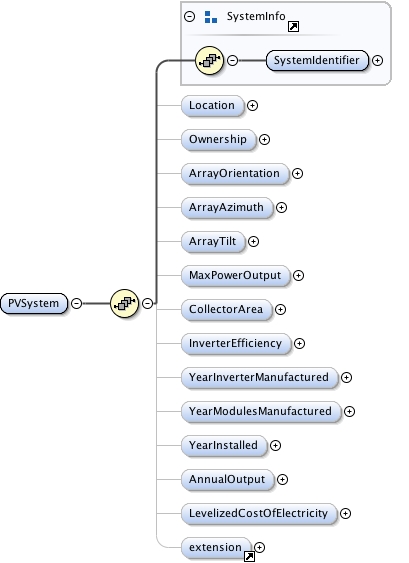

<xs:element maxOccurs="unbounded" name="PVSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Location" type="PVSystemLocation"/><xs:element minOccurs="0" name="Ownership" type="PVSystemOwnership"/><xs:element minOccurs="0" name="ArrayOrientation" type="OrientationType"/><xs:element minOccurs="0" name="ArrayAzimuth" type="AzimuthType"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ArrayTilt" type="Tilt"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MaxPowerOutput" type="Power"><xs:annotation><xs:documentation>[DC Watts] Peak power as supplied by the manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CollectorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="InverterEfficiency" type="Efficiency"/><xs:element minOccurs="0" name="YearInverterManufactured" type="Year"/><xs:element minOccurs="0" name="YearModulesManufactured" type="Year"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="AnnualOutput" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] Projected Annual Output for a typical meterological year as determined by PVWatts or similar.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="MaxPowerOutput" type="Power"><xs:annotation><xs:documentation>[DC Watts] Peak power as supplied by the manufacturer</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="AnnualOutput" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] Projected Annual Output for a typical meterological year as determined by PVWatts or similar.</xs:documentation></xs:annotation></xs:element>
[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.
<xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Wind"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="WindTurbine"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Model" type="xs:string"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="ThirdPartyCertification" maxOccurs="unbounded" type="WindThirdPartyCertification"/><xs:element minOccurs="0" name="AWEARatedAnnualEnergy" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] the calculated total energy that would be produced during a one-year period with an average wind speed of 5 m/s (11.2 mph)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedSoundLevel" type="xs:double"><xs:annotation><xs:documentation>[dBA] the sound pressure level not exceeded by the wind turbine 95% of the time at a distance of 60 meters from the rotor with an average wind speed of 5 m/s (11.2 mph).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedPower" type="Power"><xs:annotation><xs:documentation>[kW] the wind turbine’s power output at 11 m/s (24.6 mph). Manufacturers may still describe or name their wind turbine models using a nominal power (e.g. 5 kW S-343).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PeakPower" type="Power"><xs:annotation><xs:documentation>[kW] the highest point on the certified power curve.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RotorDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HubHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>
<xs:element maxOccurs="unbounded" name="WindTurbine"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Model" type="xs:string"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="ThirdPartyCertification" maxOccurs="unbounded" type="WindThirdPartyCertification"/><xs:element minOccurs="0" name="AWEARatedAnnualEnergy" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] the calculated total energy that would be produced during a one-year period with an average wind speed of 5 m/s (11.2 mph)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedSoundLevel" type="xs:double"><xs:annotation><xs:documentation>[dBA] the sound pressure level not exceeded by the wind turbine 95% of the time at a distance of 60 meters from the rotor with an average wind speed of 5 m/s (11.2 mph).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedPower" type="Power"><xs:annotation><xs:documentation>[kW] the wind turbine’s power output at 11 m/s (24.6 mph). Manufacturers may still describe or name their wind turbine models using a nominal power (e.g. 5 kW S-343).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PeakPower" type="Power"><xs:annotation><xs:documentation>[kW] the highest point on the certified power curve.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RotorDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HubHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="AWEARatedAnnualEnergy" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] the calculated total energy that would be produced during a one-year period with an average wind speed of 5 m/s (11.2 mph)</xs:documentation></xs:annotation></xs:element>
[dBA] the sound pressure level not exceeded by the wind turbine 95% of the time at a distance of 60 meters from the rotor with an average wind speed of 5 m/s (11.2 mph).
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="AWEARatedSoundLevel" type="xs:double"><xs:annotation><xs:documentation>[dBA] the sound pressure level not exceeded by the wind turbine 95% of the time at a distance of 60 meters from the rotor with an average wind speed of 5 m/s (11.2 mph).</xs:documentation></xs:annotation></xs:element>
[kW] the wind turbine’s power output at 11 m/s (24.6 mph). Manufacturers may still describe or name their wind turbine models using a nominal power (e.g. 5 kW S-343).
<xs:element minOccurs="0" name="AWEARatedPower" type="Power"><xs:annotation><xs:documentation>[kW] the wind turbine’s power output at 11 m/s (24.6 mph). Manufacturers may still describe or name their wind turbine models using a nominal power (e.g. 5 kW S-343).</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="PeakPower" type="Power"><xs:annotation><xs:documentation>[kW] the highest point on the certified power curve.</xs:documentation></xs:annotation></xs:element>
[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.
<xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element>

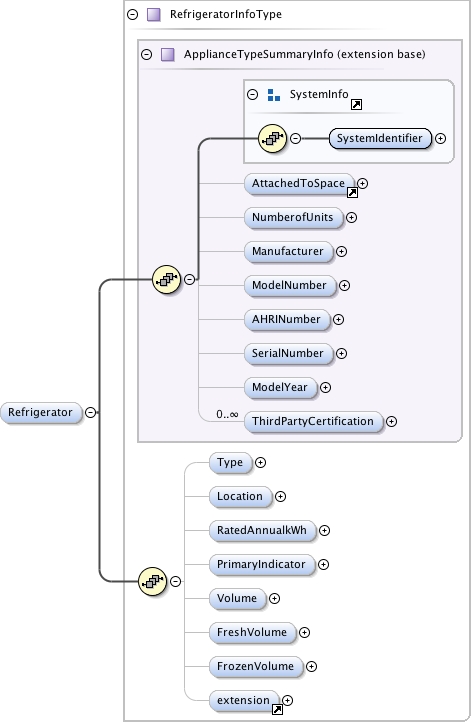

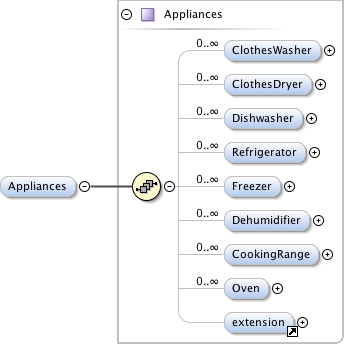

<xs:element name="PrimaryIndicator" type="xs:boolean" minOccurs="0"><xs:annotation><xs:documentation>True if it is the primary refrigerator</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FreshVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] Volume of refrigerator for keeping food at less than freezing.</xs:documentation></xs:annotation></xs:element>

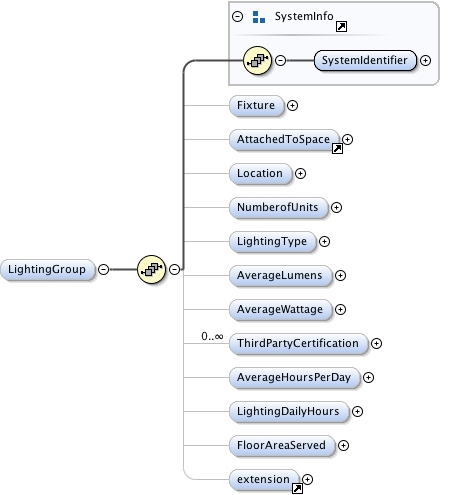

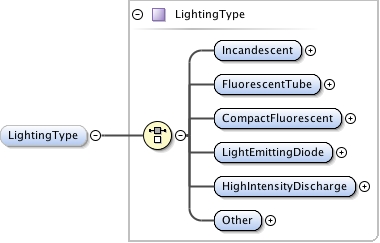

<xs:element name="LightingGroup" minOccurs="0" maxOccurs="unbounded"><xs:annotation><xs:documentation>Light units of the same type. For example you could have all the 60W incandescants.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Fixture" type="LocalReference"><xs:annotation><xs:documentation>The LightingFixture that this is attached to</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element minOccurs="0" name="Location" type="LightingLocation"/><xs:element name="NumberofUnits" type="xs:integer" minOccurs="0"/><xs:element minOccurs="0" name="LightingType" type="LightingType"/><xs:element minOccurs="0" name="AverageLumens" type="xs:double"><xs:annotation><xs:documentation>Lumens is a measure of light output (brightness) as opposed to watts, which measures energy consumption. The EPA and DOE encourages people to determine the amount of light they need (or brightness) first before purchasing a light bulb. Once brightness is determined, you can look for the bulb with the lowest watts.</xs:documentation></xs:annotation></xs:element><xs:element name="AverageWattage" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>[W] per unit</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="LightingThirdPartyCertification"/><xs:element name="AverageHoursPerDay" type="HoursPerDay" minOccurs="0"><xs:annotation><xs:documentation>[h]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LightingDailyHours" type="LightingDailyHours"><xs:annotation><xs:documentation>[h]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Fixture" type="LocalReference"><xs:annotation><xs:documentation>The LightingFixture that this is attached to</xs:documentation></xs:annotation></xs:element>
Lumens is a measure of light output (brightness) as opposed to watts, which measures energy consumption. The EPA and DOE encourages people to determine the amount of light they need (or brightness) first before purchasing a light bulb. Once brightness is determined, you can look for the bulb with the lowest watts.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="AverageLumens" type="xs:double"><xs:annotation><xs:documentation>Lumens is a measure of light output (brightness) as opposed to watts, which measures energy consumption. The EPA and DOE encourages people to determine the amount of light they need (or brightness) first before purchasing a light bulb. Once brightness is determined, you can look for the bulb with the lowest watts.</xs:documentation></xs:annotation></xs:element>

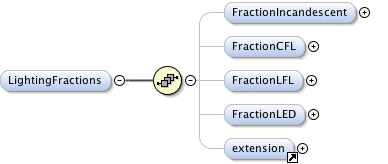

<xs:element minOccurs="0" name="LightingFractions"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FractionIncandescent" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are incandescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionCFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are compact fluorescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionLFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are linear fluorescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionLED" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are LED.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="FractionIncandescent" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are incandescent.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FractionCFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are compact fluorescent.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FractionLFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are linear fluorescent.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FractionLED" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are LED.</xs:documentation></xs:annotation></xs:element>

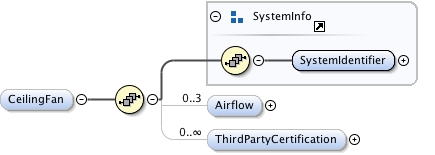

<xs:element maxOccurs="unbounded" minOccurs="0" name="CeilingFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element maxOccurs="3" minOccurs="0" name="Airflow"><xs:annotation><xs:documentation/></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FanSpeed"><xs:simpleType><xs:restriction base="xs:string"><xs:enumeration value="low"/><xs:enumeration value="medium"/><xs:enumeration value="high"/></xs:restriction></xs:simpleType></xs:element><xs:element minOccurs="0" name="Airflow" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Efficiency" type="xs:double"><xs:annotation><xs:documentation>[CFM/watt] The efficiency rating of a ceiling fan as determined by the test procedure defined by the Environmental Protection Agency's ENERGY STAR Testing Facility Guidance Manual: Building a Testing Facility and Performing the Solid State Test Method for ENERGY STAR Qualified Ceiling Fans, Version 1.1, December 9, 2002. This is generally printed on the box in which the ceiling fan is shipped.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="ApplianceThirdPartyCertifications" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element>
<xs:element maxOccurs="3" minOccurs="0" name="Airflow"><xs:annotation><xs:documentation/></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FanSpeed"><xs:simpleType><xs:restriction base="xs:string"><xs:enumeration value="low"/><xs:enumeration value="medium"/><xs:enumeration value="high"/></xs:restriction></xs:simpleType></xs:element><xs:element minOccurs="0" name="Airflow" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Efficiency" type="xs:double"><xs:annotation><xs:documentation>[CFM/watt] The efficiency rating of a ceiling fan as determined by the test procedure defined by the Environmental Protection Agency's ENERGY STAR Testing Facility Guidance Manual: Building a Testing Facility and Performing the Solid State Test Method for ENERGY STAR Qualified Ceiling Fans, Version 1.1, December 9, 2002. This is generally printed on the box in which the ceiling fan is shipped.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>
[CFM/watt] The efficiency rating of a ceiling fan as determined by the test procedure defined by the Environmental Protection Agency's ENERGY STAR Testing Facility Guidance Manual: Building a Testing Facility and Performing the Solid State Test Method for ENERGY STAR Qualified Ceiling Fans, Version 1.1, December 9, 2002. This is generally printed on the box in which the ceiling fan is shipped.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="Efficiency" type="xs:double"><xs:annotation><xs:documentation>[CFM/watt] The efficiency rating of a ceiling fan as determined by the test procedure defined by the Environmental Protection Agency's ENERGY STAR Testing Facility Guidance Manual: Building a Testing Facility and Performing the Solid State Test Method for ENERGY STAR Qualified Ceiling Fans, Version 1.1, December 9, 2002. This is generally printed on the box in which the ceiling fan is shipped.</xs:documentation></xs:annotation></xs:element>

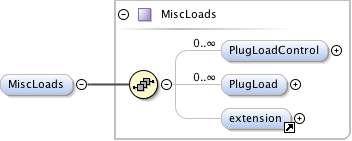

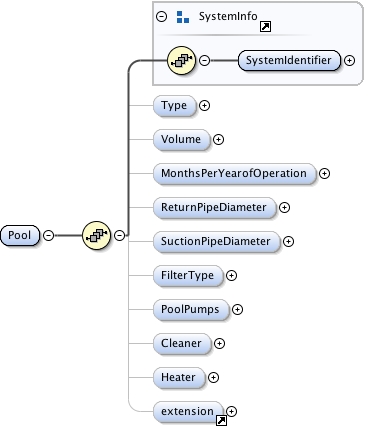

<xs:element maxOccurs="unbounded" name="Pool"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolType"><xs:annotation><xs:documentation>Indicates if the pool is above or below ground.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Volume" type="Volume"><xs:annotation><xs:documentation>[gal] Volume of pool.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MonthsPerYearofOperation" type="MonthsPerYear"><xs:annotation><xs:documentation>Months per year pool is in operation.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ReturnPipeDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SuctionPipeDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FilterType" type="PoolFilterType"><xs:annotation><xs:documentation>Type of filter used, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PoolPumps"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="PoolPump"><xs:annotation><xs:documentation>Pool pump: a mechanical assembly consisting of a “wet-end,” which houses the impeller and a motor. The pump increases the “head” and “flow” of the water (ENERGY STAR, 2013).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolPumpType"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"><xs:annotation><xs:documentation>Manufacturer of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SerialNumber" type="xs:string"><xs:annotation><xs:documentation>Serial number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ModelNumber" type="xs:string"><xs:annotation><xs:documentation>Model number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="PoolPump3rdPartyCertification" maxOccurs="unbounded"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question (ENERGY STAR, CEE, or other)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyFactor" type="Efficiency"><xs:annotation><xs:documentation>[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SpeedSetting" type="PoolPumpSpeedSetting"><xs:annotation><xs:documentation>The speed setting at which the Energy Factor was measured (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RatedHorsepower" type="Power"><xs:annotation><xs:documentation>The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalHorsepower" type="Power"><xs:annotation><xs:documentation>The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ServiceFactor" type="xs:double"><xs:annotation><xs:documentation>A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>DEPRECATED - Please use PumpSpeed/HoursPerDay</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="PumpSpeed"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Power" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Cleaner"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolCleanerType"><xs:annotation><xs:documentation>Type of pool cleaner used, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool cleaner is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Heater"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolHeaterType"><xs:annotation><xs:documentation>Type of heater used to heat pool, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool heater is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Type" type="PoolType"><xs:annotation><xs:documentation>Indicates if the pool is above or below ground.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="MonthsPerYearofOperation" type="MonthsPerYear"><xs:annotation><xs:documentation>Months per year pool is in operation.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FilterType" type="PoolFilterType"><xs:annotation><xs:documentation>Type of filter used, if any.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="PoolPumps"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="PoolPump"><xs:annotation><xs:documentation>Pool pump: a mechanical assembly consisting of a “wet-end,” which houses the impeller and a motor. The pump increases the “head” and “flow” of the water (ENERGY STAR, 2013).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolPumpType"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"><xs:annotation><xs:documentation>Manufacturer of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SerialNumber" type="xs:string"><xs:annotation><xs:documentation>Serial number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ModelNumber" type="xs:string"><xs:annotation><xs:documentation>Model number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="PoolPump3rdPartyCertification" maxOccurs="unbounded"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question (ENERGY STAR, CEE, or other)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyFactor" type="Efficiency"><xs:annotation><xs:documentation>[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SpeedSetting" type="PoolPumpSpeedSetting"><xs:annotation><xs:documentation>The speed setting at which the Energy Factor was measured (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RatedHorsepower" type="Power"><xs:annotation><xs:documentation>The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalHorsepower" type="Power"><xs:annotation><xs:documentation>The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ServiceFactor" type="xs:double"><xs:annotation><xs:documentation>A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>DEPRECATED - Please use PumpSpeed/HoursPerDay</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="PumpSpeed"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Power" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>
Pool pump: a mechanical assembly consisting of a “wet-end,” which houses the impeller and a motor. The pump increases the “head” and “flow” of the water (ENERGY STAR, 2013).
<xs:element maxOccurs="unbounded" name="PoolPump"><xs:annotation><xs:documentation>Pool pump: a mechanical assembly consisting of a “wet-end,” which houses the impeller and a motor. The pump increases the “head” and “flow” of the water (ENERGY STAR, 2013).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolPumpType"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"><xs:annotation><xs:documentation>Manufacturer of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SerialNumber" type="xs:string"><xs:annotation><xs:documentation>Serial number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ModelNumber" type="xs:string"><xs:annotation><xs:documentation>Model number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="PoolPump3rdPartyCertification" maxOccurs="unbounded"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question (ENERGY STAR, CEE, or other)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyFactor" type="Efficiency"><xs:annotation><xs:documentation>[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SpeedSetting" type="PoolPumpSpeedSetting"><xs:annotation><xs:documentation>The speed setting at which the Energy Factor was measured (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RatedHorsepower" type="Power"><xs:annotation><xs:documentation>The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalHorsepower" type="Power"><xs:annotation><xs:documentation>The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ServiceFactor" type="xs:double"><xs:annotation><xs:documentation>A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>DEPRECATED - Please use PumpSpeed/HoursPerDay</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="PumpSpeed"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Power" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Manufacturer" type="xs:string"><xs:annotation><xs:documentation>Manufacturer of pool pump.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="SerialNumber" type="xs:string"><xs:annotation><xs:documentation>Serial number of pool pump.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ModelNumber" type="xs:string"><xs:annotation><xs:documentation>Model number of pool pump.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ThirdPartyCertification" type="PoolPump3rdPartyCertification" maxOccurs="unbounded"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question (ENERGY STAR, CEE, or other)</xs:documentation></xs:annotation></xs:element>
[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).
<xs:element minOccurs="0" name="EnergyFactor" type="Efficiency"><xs:annotation><xs:documentation>[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="SpeedSetting" type="PoolPumpSpeedSetting"><xs:annotation><xs:documentation>The speed setting at which the Energy Factor was measured (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element>
The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).
<xs:element minOccurs="0" name="RatedHorsepower" type="Power"><xs:annotation><xs:documentation>The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element>
The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).
<xs:element minOccurs="0" name="TotalHorsepower" type="Power"><xs:annotation><xs:documentation>The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element>
A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="ServiceFactor" type="xs:double"><xs:annotation><xs:documentation>A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element>

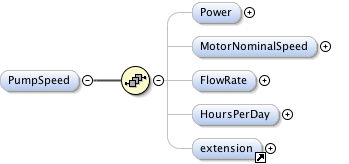

<xs:element maxOccurs="unbounded" minOccurs="0" name="PumpSpeed"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Power" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element>
[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).
<xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element>

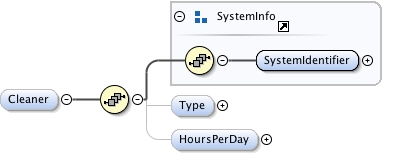

<xs:element minOccurs="0" name="Cleaner"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolCleanerType"><xs:annotation><xs:documentation>Type of pool cleaner used, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool cleaner is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Type" type="PoolCleanerType"><xs:annotation><xs:documentation>Type of pool cleaner used, if any.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool cleaner is used.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Heater"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolHeaterType"><xs:annotation><xs:documentation>Type of heater used to heat pool, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool heater is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Type" type="PoolHeaterType"><xs:annotation><xs:documentation>Type of heater used to heat pool, if any.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool heater is used.</xs:documentation></xs:annotation></xs:element>

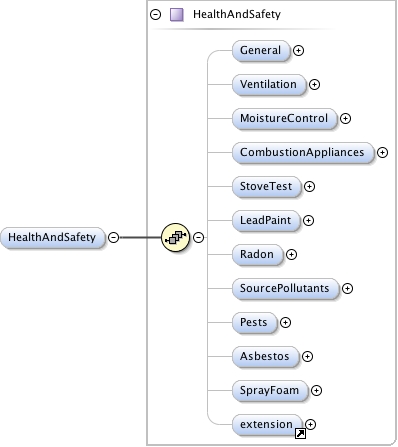

<xs:element minOccurs="0" name="InfiltrationCreditApplied" type="BooleanWithNA"><xs:annotation><xs:documentation>ASHRAE 62.2-2010 has an infiltration credit. ASHRAE 62-89 and 62.2-2013 do not have infiltration credits.</xs:documentation></xs:annotation></xs:element>
This is just the # of the calculated infiltration credit.
Diagram
Type
xs:integer
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="InfiltrationCreditCFMnat" type="xs:integer"><xs:annotation><xs:documentation>This is just the # of the calculated infiltration credit.</xs:documentation></xs:annotation></xs:element>
This is the net amount of continuous ventilation needed AFTER infiltration credit is applied (if any)
Diagram
Type
xs:double
Properties
content
simple
Source
<xs:element name="RequiredVentilationRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER infiltration credit is applied (if any)</xs:documentation></xs:annotation></xs:element>
This is amount without taking into consideration any infiltration credit
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="IntermittentExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is amount without taking into consideration any infiltration credit</xs:documentation></xs:annotation></xs:element>
This is amount without taking into consideration any infiltration credit
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="ContinuousExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is amount without taking into consideration any infiltration credit</xs:documentation></xs:annotation></xs:element>
Should be 20 cfm, if the local AHJ permits windows to be used for local exhaust
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="WindowOpeningCredit" type="xs:double"><xs:annotation><xs:documentation>Should be 20 cfm, if the local AHJ permits windows to be used for local exhaust</xs:documentation></xs:annotation></xs:element>
This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="RequiredIntermittentExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)</xs:documentation></xs:annotation></xs:element>
This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="RequiredContinuousExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)</xs:documentation></xs:annotation></xs:element>
The airflow deficit for each bathroom or kitchen is the required airflow less the airflow rating of the exhaust equipment. If there is no exhaust device or if the existing device cannot be measured nor read it, the exhaust device airflow is assumed to be zero.
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="InitialAirflorDeficit" type="xs:double"><xs:annotation><xs:documentation>The airflow deficit for each bathroom or kitchen is the required airflow less the airflow rating of the exhaust equipment. If there is no exhaust device or if the existing device cannot be measured nor read it, the exhaust device airflow is assumed to be zero.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="HouseGarageAirBarrier" type="YesNoRecommendInstall"><xs:annotation><xs:documentation>Does a proper air barrier separate the house from the garage?</xs:documentation></xs:annotation></xs:element>
<xs:element name="Yes"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Installed" type="BooleanWithNA"><xs:annotation><xs:documentation>If yes, was this installed as part of scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Installed" type="BooleanWithNA"><xs:annotation><xs:documentation>If yes, was this installed as part of scope of work?</xs:documentation></xs:annotation></xs:element>
<xs:element name="No"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Recommended" type="BooleanWithNA"><xs:annotation><xs:documentation>If no, was this recommended in scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="Recommended" type="BooleanWithNA"><xs:annotation><xs:documentation>If no, was this recommended in scope of work?</xs:documentation></xs:annotation></xs:element>

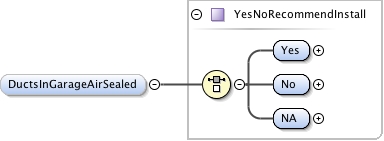

<xs:element minOccurs="0" name="DuctsInGarageAirSealed" type="YesNoRecommendInstall"><xs:annotation><xs:documentation>Are ducts and air handlers located in the garage properly air sealed?</xs:documentation></xs:annotation></xs:element>

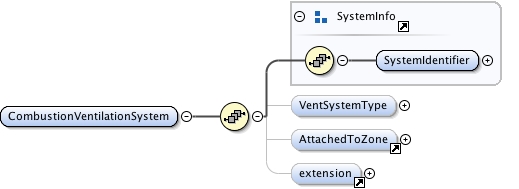

<xs:element minOccurs="0" name="CombustionAppliances"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="CombustionApplianceZone" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element name="CAZDepressurizationLimit" type="CAZDepressurizationLimit" minOccurs="0"><xs:annotation><xs:documentation>Pulled from industry standards by users (e.g. BPI Gold Sheet) or via software program</xs:documentation></xs:annotation></xs:element><xs:element name="BaselineTest" type="CAZTestConfiguration" minOccurs="0"><xs:annotation><xs:documentation>Baseline pressure is read under the following conditions: no items running, all fans off, all exterior doors closed, and all interior doors are opened.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PoorCaseTest" type="CAZTestConfiguration"><xs:annotation><xs:documentation>The poor case CAZ depressurization test is configured by determining the largest combustion appliance zone depressurization attainable at the time of testing due to the combined effects of door position, exhaust appliance operation, and air handler fan operation. A base pressure must be measured with all fans off and doors open. The poor case CAZ depressurization measurement is the pressure difference between the largest depressurization attained at the time of testing and the base pressure.</xs:documentation></xs:annotation></xs:element><xs:element name="NetPressureChange" type="NetPressureChange" minOccurs="0"><xs:annotation><xs:documentation>With respect to the baseline pressure (e.g. no fans running, all exterior doors closed, and all interior doors opened)</xs:documentation></xs:annotation></xs:element><xs:element name="DepressurizationFindingPoorCase" type="DepressurizationFindingPoorCase" minOccurs="0"/><xs:element name="AmountAmbientCOinCAZduringTesting" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>parts per million (ppm)</xs:documentation></xs:annotation></xs:element><xs:element name="AmbientCOinCAZExceeded35ppmduringTesting" type="xs:boolean" minOccurs="0"/><xs:element minOccurs="0" name="CombustionApplianceTest" maxOccurs="unbounded"><xs:complexType><xs:sequence minOccurs="0"><xs:element name="CAZAppliance" type="RemoteReference"><xs:annotation><xs:documentation>The ID of the system tested</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CombustionVentingSystem" type="RemoteReference"/><xs:element name="FlueVisualCondition" type="FlueCondition" minOccurs="0"/><xs:element minOccurs="0" name="FlueConditionNotes" type="xs:string"/><xs:element name="OutsideTemperatureFlueDraftTest" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlueDraftTest"><xs:annotation><xs:documentation>[Pa]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="SpillageTest"><xs:annotation><xs:documentation>[seconds]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="CarbonMonoxideTest"><xs:annotation><xs:documentation>[ppm]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element name="MaxAmbientCOinLivingSpaceDuringAudit" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>Monitored throughout assessment, not just appliance testing</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AmbientCOActionDuringCAZTesting" type="xs:string"><xs:annotation><xs:documentation>BPI Gold Sheet is one example that shows action levels based upon decision logic</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element name="StackTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F] after 10 minutes run time</xs:documentation></xs:annotation></xs:element><xs:element name="FuelLeaks" minOccurs="0" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:element name="FuelType" type="FuelType"/><xs:element name="LeaksIdentified" type="xs:boolean"/><xs:element name="LeaksAddressed" type="xs:boolean"/><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

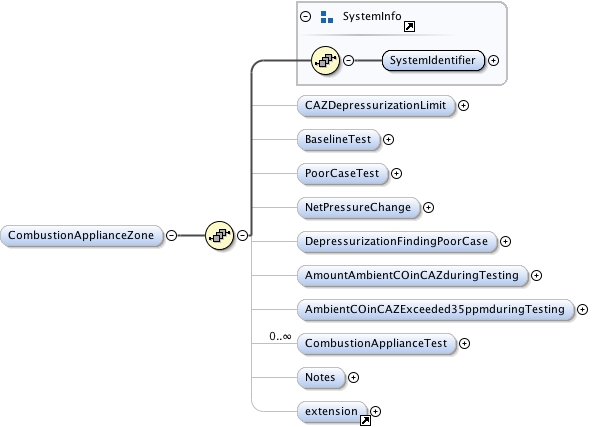

<xs:element minOccurs="0" name="CombustionApplianceZone" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element name="CAZDepressurizationLimit" type="CAZDepressurizationLimit" minOccurs="0"><xs:annotation><xs:documentation>Pulled from industry standards by users (e.g. BPI Gold Sheet) or via software program</xs:documentation></xs:annotation></xs:element><xs:element name="BaselineTest" type="CAZTestConfiguration" minOccurs="0"><xs:annotation><xs:documentation>Baseline pressure is read under the following conditions: no items running, all fans off, all exterior doors closed, and all interior doors are opened.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PoorCaseTest" type="CAZTestConfiguration"><xs:annotation><xs:documentation>The poor case CAZ depressurization test is configured by determining the largest combustion appliance zone depressurization attainable at the time of testing due to the combined effects of door position, exhaust appliance operation, and air handler fan operation. A base pressure must be measured with all fans off and doors open. The poor case CAZ depressurization measurement is the pressure difference between the largest depressurization attained at the time of testing and the base pressure.</xs:documentation></xs:annotation></xs:element><xs:element name="NetPressureChange" type="NetPressureChange" minOccurs="0"><xs:annotation><xs:documentation>With respect to the baseline pressure (e.g. no fans running, all exterior doors closed, and all interior doors opened)</xs:documentation></xs:annotation></xs:element><xs:element name="DepressurizationFindingPoorCase" type="DepressurizationFindingPoorCase" minOccurs="0"/><xs:element name="AmountAmbientCOinCAZduringTesting" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>parts per million (ppm)</xs:documentation></xs:annotation></xs:element><xs:element name="AmbientCOinCAZExceeded35ppmduringTesting" type="xs:boolean" minOccurs="0"/><xs:element minOccurs="0" name="CombustionApplianceTest" maxOccurs="unbounded"><xs:complexType><xs:sequence minOccurs="0"><xs:element name="CAZAppliance" type="RemoteReference"><xs:annotation><xs:documentation>The ID of the system tested</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CombustionVentingSystem" type="RemoteReference"/><xs:element name="FlueVisualCondition" type="FlueCondition" minOccurs="0"/><xs:element minOccurs="0" name="FlueConditionNotes" type="xs:string"/><xs:element name="OutsideTemperatureFlueDraftTest" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlueDraftTest"><xs:annotation><xs:documentation>[Pa]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="SpillageTest"><xs:annotation><xs:documentation>[seconds]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="CarbonMonoxideTest"><xs:annotation><xs:documentation>[ppm]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element name="MaxAmbientCOinLivingSpaceDuringAudit" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>Monitored throughout assessment, not just appliance testing</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AmbientCOActionDuringCAZTesting" type="xs:string"><xs:annotation><xs:documentation>BPI Gold Sheet is one example that shows action levels based upon decision logic</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element name="StackTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F] after 10 minutes run time</xs:documentation></xs:annotation></xs:element><xs:element name="FuelLeaks" minOccurs="0" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:element name="FuelType" type="FuelType"/><xs:element name="LeaksIdentified" type="xs:boolean"/><xs:element name="LeaksAddressed" type="xs:boolean"/><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element>
<xs:element name="CAZDepressurizationLimit" type="CAZDepressurizationLimit" minOccurs="0"><xs:annotation><xs:documentation>Pulled from industry standards by users (e.g. BPI Gold Sheet) or via software program</xs:documentation></xs:annotation></xs:element>
Baseline pressure is read under the following conditions: no items running, all fans off, all exterior doors closed, and all interior doors are opened.

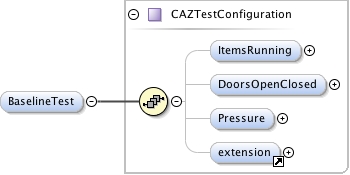

<xs:element name="BaselineTest" type="CAZTestConfiguration" minOccurs="0"><xs:annotation><xs:documentation>Baseline pressure is read under the following conditions: no items running, all fans off, all exterior doors closed, and all interior doors are opened.</xs:documentation></xs:annotation></xs:element>

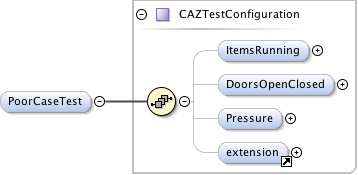

The poor case CAZ depressurization test is configured by determining the largest combustion appliance zone depressurization attainable at the time of testing due to the combined effects of door position, exhaust appliance operation, and air handler fan operation. A base pressure must be measured with all fans off and doors open. The poor case CAZ depressurization measurement is the pressure difference between the largest depressurization attained at the time of testing and the base pressure.
<xs:element minOccurs="0" name="PoorCaseTest" type="CAZTestConfiguration"><xs:annotation><xs:documentation>The poor case CAZ depressurization test is configured by determining the largest combustion appliance zone depressurization attainable at the time of testing due to the combined effects of door position, exhaust appliance operation, and air handler fan operation. A base pressure must be measured with all fans off and doors open. The poor case CAZ depressurization measurement is the pressure difference between the largest depressurization attained at the time of testing and the base pressure.</xs:documentation></xs:annotation></xs:element>
<xs:element name="NetPressureChange" type="NetPressureChange" minOccurs="0"><xs:annotation><xs:documentation>With respect to the baseline pressure (e.g. no fans running, all exterior doors closed, and all interior doors opened)</xs:documentation></xs:annotation></xs:element>
<xs:element name="AmountAmbientCOinCAZduringTesting" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>parts per million (ppm)</xs:documentation></xs:annotation></xs:element>

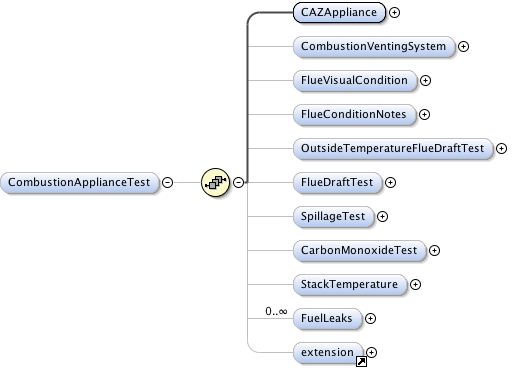

Id reference in the current document. Optional. If the element isn't available in the current document, don't use this.
Source
<xs:element name="CAZAppliance" type="RemoteReference"><xs:annotation><xs:documentation>The ID of the system tested</xs:documentation></xs:annotation></xs:element>

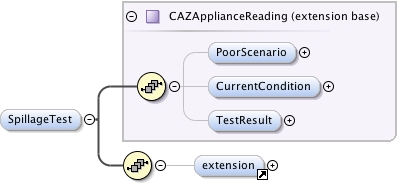

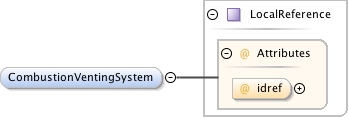

This element is formerly known as "spillage, draft, and CO readings under natural conditions" as explained in BPI's Gold Sheet "Combustion Safety Test Procedure for Vented Appliances."
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="CurrentCondition" type="xs:double"><xs:annotation><xs:documentation>This element is formerly known as "spillage, draft, and CO readings under natural conditions" as explained in BPI's Gold Sheet "Combustion Safety Test Procedure for Vented Appliances."</xs:documentation></xs:annotation></xs:element>

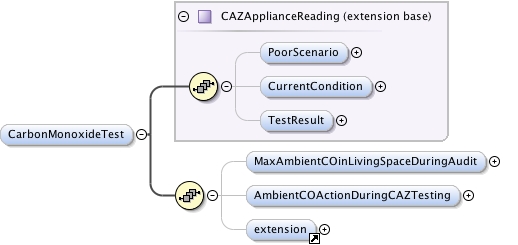

<xs:element minOccurs="0" name="CarbonMonoxideTest"><xs:annotation><xs:documentation>[ppm]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element name="MaxAmbientCOinLivingSpaceDuringAudit" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>Monitored throughout assessment, not just appliance testing</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AmbientCOActionDuringCAZTesting" type="xs:string"><xs:annotation><xs:documentation>BPI Gold Sheet is one example that shows action levels based upon decision logic</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element>
Monitored throughout assessment, not just appliance testing
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element name="MaxAmbientCOinLivingSpaceDuringAudit" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>Monitored throughout assessment, not just appliance testing</xs:documentation></xs:annotation></xs:element>
BPI Gold Sheet is one example that shows action levels based upon decision logic
Diagram
Type
xs:string
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="AmbientCOActionDuringCAZTesting" type="xs:string"><xs:annotation><xs:documentation>BPI Gold Sheet is one example that shows action levels based upon decision logic</xs:documentation></xs:annotation></xs:element>
<xs:element name="StackTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F] after 10 minutes run time</xs:documentation></xs:annotation></xs:element>

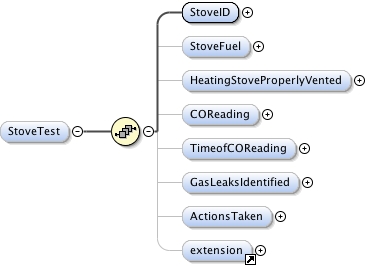

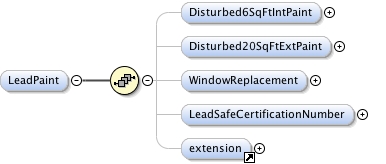

<xs:element minOccurs="0" name="LeadPaint"><xs:complexType><xs:sequence><xs:element name="Disturbed6SqFtIntPaint" type="xs:boolean" minOccurs="0"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 6 sq.ft. of interior painted surfaces?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Disturbed20SqFtExtPaint" type="xs:boolean"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 20 sf of exterior painted surfaces?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WindowReplacement" type="xs:boolean"><xs:annotation><xs:documentation>Did the contracted scope of work include window replacement?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LeadSafeCertificationNumber" type="xs:string"><xs:annotation><xs:documentation>Certification Number of the EPA Lead-Safe Certified firm that performed the work.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
For a home built before 1978, did the contracted scope of work disturb greater than 6 sq.ft. of interior painted surfaces?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element name="Disturbed6SqFtIntPaint" type="xs:boolean" minOccurs="0"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 6 sq.ft. of interior painted surfaces?</xs:documentation></xs:annotation></xs:element>
For a home built before 1978, did the contracted scope of work disturb greater than 20 sf of exterior painted surfaces?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="Disturbed20SqFtExtPaint" type="xs:boolean"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 20 sf of exterior painted surfaces?</xs:documentation></xs:annotation></xs:element>
Did the contracted scope of work include window replacement?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="WindowReplacement" type="xs:boolean"><xs:annotation><xs:documentation>Did the contracted scope of work include window replacement?</xs:documentation></xs:annotation></xs:element>
Certification Number of the EPA Lead-Safe Certified firm that performed the work.
Diagram
Type
xs:string
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="LeadSafeCertificationNumber" type="xs:string"><xs:annotation><xs:documentation>Certification Number of the EPA Lead-Safe Certified firm that performed the work.</xs:documentation></xs:annotation></xs:element>

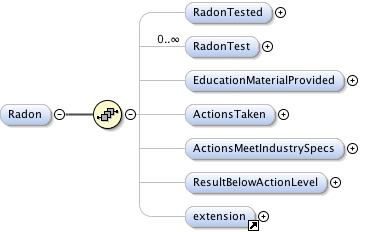

<xs:element minOccurs="0" name="Radon"><xs:complexType><xs:sequence><xs:element name="RadonTested" type="xs:boolean" minOccurs="0"/><xs:element maxOccurs="unbounded" minOccurs="0" name="RadonTest"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="StartDateTime" type="xs:dateTime"/><xs:element minOccurs="0" name="EndDateTime" type="xs:dateTime"/><xs:element minOccurs="0" name="TestLocation" type="RadonTestLocation"/><xs:element name="RadonTestResults" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>in pCi/L</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RadonTestMethod" type="RadonTestTypes"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="EducationMaterialProvided" type="xs:boolean"><xs:annotation><xs:documentation>Was the homeowner provided with educational material?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ActionsTaken" type="xs:string"/><xs:element minOccurs="0" name="ActionsMeetIndustrySpecs" type="xs:boolean"><xs:annotation><xs:documentation>If moisture management of a crawlspace (e.g., installation of polyethylene sheeting) or radon mitigation measures were a part of the scope of work,were measures installed to be compliant with one of the following: - Specifications of EPA’s Indoor airPLUS program - Techniques detailed in EPA's Radon-Resistent New Construction - ASTM E2121, Standard Practice for Installing Radon Mitigation Systems in Existing Low-Rise Residential Buildings (section 7.3)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ResultBelowActionLevel" type="xs:boolean"><xs:annotation><xs:documentation>Was the result less than 4 pCi/L</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Was the homeowner provided with educational material?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="EducationMaterialProvided" type="xs:boolean"><xs:annotation><xs:documentation>Was the homeowner provided with educational material?</xs:documentation></xs:annotation></xs:element>
If moisture management of a crawlspace (e.g., installation of polyethylene sheeting) or radon mitigation measures were a part of the scope of work,were measures installed to be compliant with one of the following:- Specifications of EPA’s Indoor airPLUS program- Techniques detailed in EPA's Radon-Resistent New Construction- ASTM E2121, Standard Practice for Installing Radon Mitigation Systems in Existing Low-Rise Residential Buildings (section 7.3)
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="ActionsMeetIndustrySpecs" type="xs:boolean"><xs:annotation><xs:documentation>If moisture management of a crawlspace (e.g., installation of polyethylene sheeting) or radon mitigation measures were a part of the scope of work,were measures installed to be compliant with one of the following: - Specifications of EPA’s Indoor airPLUS program - Techniques detailed in EPA's Radon-Resistent New Construction - ASTM E2121, Standard Practice for Installing Radon Mitigation Systems in Existing Low-Rise Residential Buildings (section 7.3)</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ResultBelowActionLevel" type="xs:boolean"><xs:annotation><xs:documentation>Was the result less than 4 pCi/L</xs:documentation></xs:annotation></xs:element>

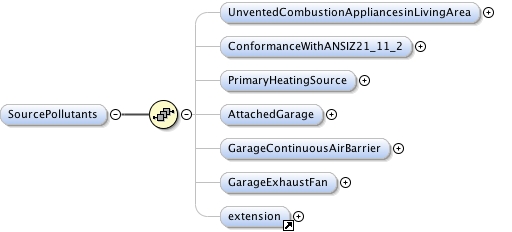

<xs:element minOccurs="0" name="SourcePollutants"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="UnventedCombustionAppliancesinLivingArea" type="xs:boolean"><xs:annotation><xs:documentation>Are there unvented combustion heating or hearth appliances present in the living area?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ConformanceWithANSIZ21_11_2" type="xs:boolean"><xs:annotation><xs:documentation>If yes, does the appliance conform with ANSI Z21.11.2?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PrimaryHeatingSource" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is the appliance used as a primary source of heating?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedGarage" type="xs:boolean"><xs:annotation><xs:documentation>Does home have attached garage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GarageContinuousAirBarrier" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there a continuous air barrier between garage and living space?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GarageExhaustFan" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there an exhaust fan in garage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Are there unvented combustion heating or hearth appliances present in the living area?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="UnventedCombustionAppliancesinLivingArea" type="xs:boolean"><xs:annotation><xs:documentation>Are there unvented combustion heating or hearth appliances present in the living area?</xs:documentation></xs:annotation></xs:element>
If yes, does the appliance conform with ANSI Z21.11.2?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="ConformanceWithANSIZ21_11_2" type="xs:boolean"><xs:annotation><xs:documentation>If yes, does the appliance conform with ANSI Z21.11.2?</xs:documentation></xs:annotation></xs:element>
If yes, is the appliance used as a primary source of heating?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="PrimaryHeatingSource" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is the appliance used as a primary source of heating?</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="AttachedGarage" type="xs:boolean"><xs:annotation><xs:documentation>Does home have attached garage?</xs:documentation></xs:annotation></xs:element>
If yes, is there a continuous air barrier between garage and living space?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="GarageContinuousAirBarrier" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there a continuous air barrier between garage and living space?</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="GarageExhaustFan" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there an exhaust fan in garage?</xs:documentation></xs:annotation></xs:element>

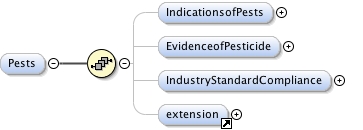

<xs:element minOccurs="0" name="Pests"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="IndicationsofPests" type="xs:boolean"><xs:annotation><xs:documentation>Indications of pest entry or damage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EvidenceofPesticide" type="xs:boolean"><xs:annotation><xs:documentation>Evidence of pesticide, insecticide use?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="IndustryStandardCompliance" type="xs:boolean"><xs:annotation><xs:documentation>Do measures comply with industry standards to prevent pest entry? NOTE: This is for ALL measures that may create entry points for vermin. For example, air sealing measures identified to reduce infiltration should have proper sealants - even if those measures were not recommended/installed for pest control purposes.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="IndicationsofPests" type="xs:boolean"><xs:annotation><xs:documentation>Indications of pest entry or damage?</xs:documentation></xs:annotation></xs:element>
Do measures comply with industry standards to prevent pest entry?NOTE: This is for ALL measures that may create entry points for vermin. For example, air sealing measures identified to reduce infiltration should have proper sealants - even if those measures were not recommended/installed for pest control purposes.
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="IndustryStandardCompliance" type="xs:boolean"><xs:annotation><xs:documentation>Do measures comply with industry standards to prevent pest entry? NOTE: This is for ALL measures that may create entry points for vermin. For example, air sealing measures identified to reduce infiltration should have proper sealants - even if those measures were not recommended/installed for pest control purposes.</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="SprayFoam"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="SprayFoamInstalled" type="xs:boolean"><xs:annotation><xs:documentation>Was spray foam polyurethane foam and / or other potential sources of indoor pollutants installed or applied as part of the scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
Was spray foam polyurethane foam and / or other potential sources of indoor pollutants installed or applied as part of the scope of work?
Diagram
Type
xs:boolean
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="SprayFoamInstalled" type="xs:boolean"><xs:annotation><xs:documentation>Was spray foam polyurethane foam and / or other potential sources of indoor pollutants installed or applied as part of the scope of work?</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="ModeledUsages"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="WeatherStation" type="LocalReference"><xs:annotation><xs:documentation>Indicates which weather station is used for the modeling. It's a reference that points to Building/BuildingDetails/ClimateAndRiskZones/WeatherStation</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" name="ModeledUsage" type="ModeledUsageType"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="WeatherStation" type="LocalReference"><xs:annotation><xs:documentation>Indicates which weather station is used for the modeling. It's a reference that points to Building/BuildingDetails/ClimateAndRiskZones/WeatherStation</xs:documentation></xs:annotation></xs:element>
Energy use will be negative for energy producing end uses such as PV and SolarThermal.
Diagram
Type
xs:double
Properties
content
simple
Source
<xs:element name="EndUseValue" type="xs:double"><xs:annotation><xs:documentation>Energy use will be negative for energy producing end uses such as PV and SolarThermal.</xs:documentation></xs:annotation></xs:element>
Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="BaseLoad" type="xs:double"><xs:annotation><xs:documentation>Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).</xs:documentation></xs:annotation></xs:element>

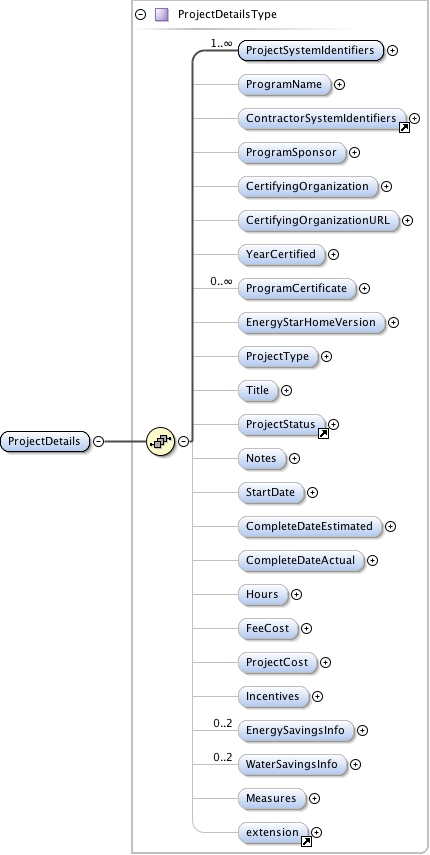

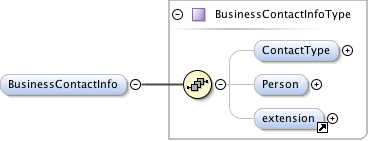

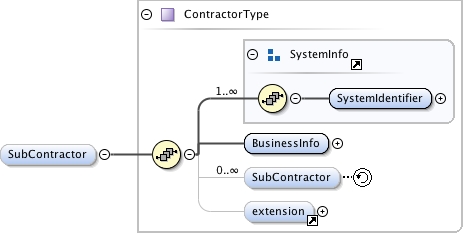

<xs:element name="ContractorSystemIdentifiers"><xs:annotation><xs:documentation>These are the system identifiers for a specific contractor at a business</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" ref="SystemIdentifiersInfo"/></xs:sequence></xs:complexType></xs:element>
<xs:element name="StartDate" type="StartDate" minOccurs="0"><xs:annotation><xs:documentation>Start date of project</xs:documentation></xs:annotation></xs:element>
<xs:element name="CompleteDateEstimated" type="CompleteDateEstimated" minOccurs="0"><xs:annotation><xs:documentation>Estimated completion date of project</xs:documentation></xs:annotation></xs:element>
<xs:element name="CompleteDateActual" type="CompleteDateActual" minOccurs="0"><xs:annotation><xs:documentation>Actual completion date of project</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="Hours" type="Hours"><xs:annotation><xs:documentation>Amount of time spent by contractor on this stage of the project</xs:documentation></xs:annotation></xs:element>
<xs:element minOccurs="0" name="FeeCost" type="Cost"><xs:annotation><xs:documentation>Cost of any fees associated with the audit or other project activities</xs:documentation></xs:annotation></xs:element>

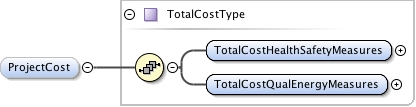

<xs:element minOccurs="0" name="ProjectCost" type="TotalCostType"><xs:annotation><xs:documentation>Cost of all work proposed or performed</xs:documentation></xs:annotation></xs:element>

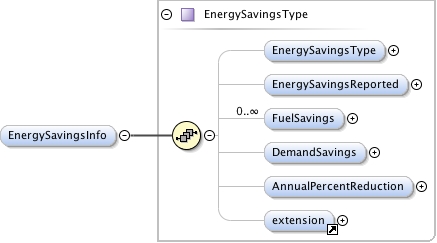

<xs:element minOccurs="0" name="EnergySavingsType" type="MeasuredOrEstimated"><xs:annotation><xs:documentation>Indicates whether it is measured energy savings or estimated energy savings.</xs:documentation></xs:annotation></xs:element>
should be represented as a fraction (ie 0.5 instead of 50%)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="PctReduction" type="xs:double"><xs:annotation><xs:documentation>should be represented as a fraction (ie 0.5 instead of 50%)</xs:documentation></xs:annotation></xs:element>
[kW] Demand savings from energy efficiency programs
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element name="DemandSavings" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>[kW] Demand savings from energy efficiency programs</xs:documentation></xs:annotation></xs:element>
should be represented as a fraction (ie 0.5 instead of 50%)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element name="AnnualPercentReduction" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>should be represented as a fraction (ie 0.5 instead of 50%)</xs:documentation></xs:annotation></xs:element>

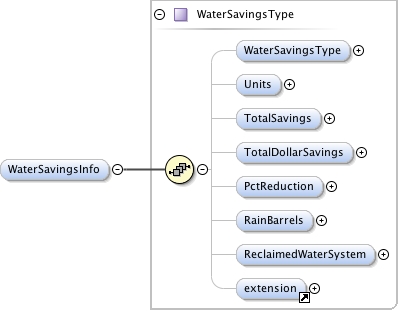

should be represented as a fraction (ie 0.5 instead of 50%)
Diagram
Type
xs:double
Properties
content
simple
minOccurs
0
Source
<xs:element minOccurs="0" name="PctReduction" type="xs:double"><xs:annotation><xs:documentation>should be represented as a fraction (ie 0.5 instead of 50%)</xs:documentation></xs:annotation></xs:element>

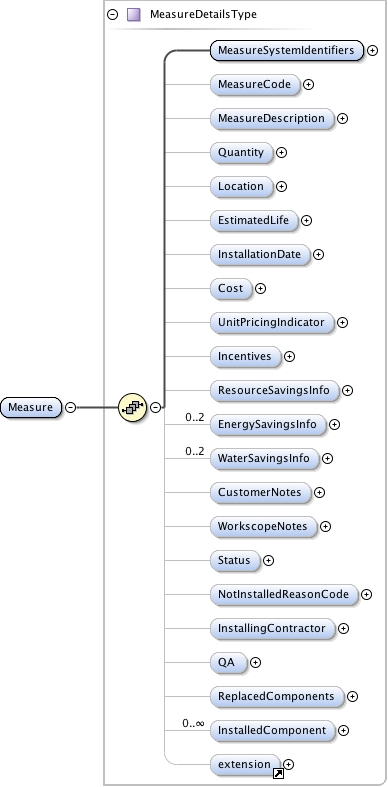

<xs:element name="MeasureSystemIdentifiers"><xs:annotation><xs:documentation>These are the system identifiers for a specific measure on a job</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" ref="SystemIdentifiersInfo"/></xs:sequence></xs:complexType></xs:element>
<xs:element minOccurs="0" name="ResourceSavingsInfo"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="ResourcesSaved"><xs:complexType><xs:sequence><xs:element name="ResourceTypeCode" type="ResourceTypeCode"/><xs:element name="LoadProfile" type="LoadProfile" minOccurs="0"><xs:annotation><xs:documentation>A load profile is created using measurements of a customer's electricity use at regular intervals, typically one hour or less, and provides an accurate representation of a customer's usage pattern over time.</xs:documentation></xs:annotation></xs:element><xs:element name="Quantity" type="Quantity"/><xs:element name="AnnualAmount" type="AnnualAmount" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element>

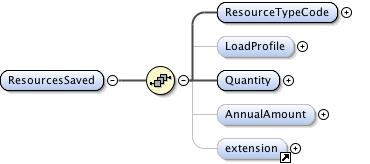

<xs:element maxOccurs="unbounded" name="ResourcesSaved"><xs:complexType><xs:sequence><xs:element name="ResourceTypeCode" type="ResourceTypeCode"/><xs:element name="LoadProfile" type="LoadProfile" minOccurs="0"><xs:annotation><xs:documentation>A load profile is created using measurements of a customer's electricity use at regular intervals, typically one hour or less, and provides an accurate representation of a customer's usage pattern over time.</xs:documentation></xs:annotation></xs:element><xs:element name="Quantity" type="Quantity"/><xs:element name="AnnualAmount" type="AnnualAmount" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>
A load profile is created using measurements of a customer's electricity use at regular intervals, typically one hour or less, and provides an accurate representation of a customer's usage pattern over time.
<xs:element name="LoadProfile" type="LoadProfile" minOccurs="0"><xs:annotation><xs:documentation>A load profile is created using measurements of a customer's electricity use at regular intervals, typically one hour or less, and provides an accurate representation of a customer's usage pattern over time.</xs:documentation></xs:annotation></xs:element>
Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).
<xs:element minOccurs="0" name="QA"><xs:annotation><xs:documentation>Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="QAStatus" type="TestResultType"/><xs:element name="QAComments" type="Notes"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element>

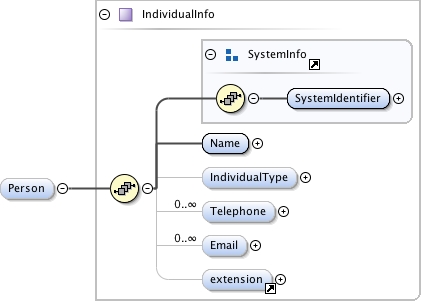

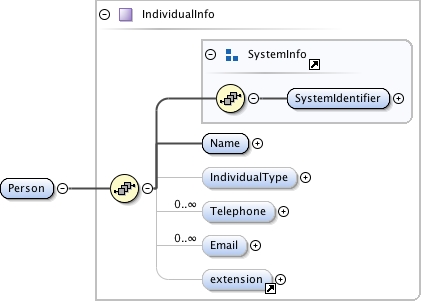

HPXML records may contain data about an individual, either a person, or a business. This element contains the root elements for individual identifier values between a sending and a receiving system.
<xs:element name="BuildingSystemIdentifiers"><xs:annotation><xs:documentation>HPXML records may contain data about an individual, either a person, or a business. This element contains the root elements for individual identifier values between a sending and a receiving system.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element ref="SystemIdentifiersInfo"/></xs:sequence></xs:complexType></xs:element>
System identifiers contain type codes and an identifier for both a sending and a receiving system. These fields are needed to be able to transmit data between two systems, and have it identified in the two systems. Also, there is an id attribute to define a local id to be used internally.
Use to reference the id of the same object on the base building where the object has not been replaced.
Source
<xs:complexType name="SystemIdentifiersInfoType"><xs:annotation><xs:documentation>System identifiers contain type codes and an identifier for both a sending and a receiving system. These fields are needed to be able to transmit data between two systems, and have it identified in the two systems. Also, there is an id attribute to define a local id to be used internally.</xs:documentation></xs:annotation><xs:sequence><xs:element name="SendingSystemIdentifierType" type="SendingSystemIdentifierType" minOccurs="0"/><xs:element name="SendingSystemIdentifierValue" type="SendingSystemIdentifierValue" minOccurs="0"/><xs:element name="ReceivingSystemIdentifierType" type="ReceivingSystemIdentifierType" minOccurs="0"/><xs:element name="ReceivingSystemIdentifierValue" type="ReceivingSystemIdentifierValue" minOccurs="0"/></xs:sequence><xs:attribute name="id" type="xs:ID" use="required"><xs:annotation><xs:documentation>id local to the current document</xs:documentation></xs:annotation></xs:attribute><xs:attribute name="sameas" type="xs:IDREF"><xs:annotation><xs:documentation>Use to reference the id of the same object on the base building where the object has not been replaced.</xs:documentation></xs:annotation></xs:attribute></xs:complexType>

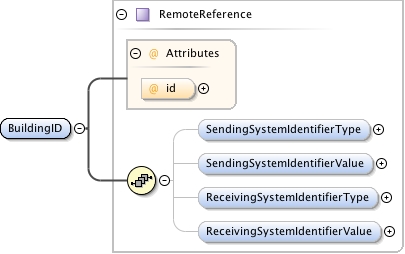

Use the id attribute if the element being referenced is available locally in the current xml transaction. Use the Sending/Receiving System Identifiers to identify elements in other xml transactions.
Id reference in the current document. Optional. If the element isn't available in the current document, don't use this.
Source
<xs:complexType name="RemoteReference"><xs:annotation><xs:documentation>Use the id attribute if the element being referenced is available locally in the current xml transaction. Use the Sending/Receiving System Identifiers to identify elements in other xml transactions.</xs:documentation></xs:annotation><xs:sequence><xs:element name="SendingSystemIdentifierType" type="SendingSystemIdentifierType" minOccurs="0"/><xs:element name="SendingSystemIdentifierValue" type="SendingSystemIdentifierValue" minOccurs="0"/><xs:element name="ReceivingSystemIdentifierType" type="ReceivingSystemIdentifierType" minOccurs="0"/><xs:element name="ReceivingSystemIdentifierValue" type="ReceivingSystemIdentifierValue" minOccurs="0"/></xs:sequence><xs:attribute name="id" type="xs:IDREF"><xs:annotation><xs:documentation>Id reference in the current document. Optional. If the element isn't available in the current document, don't use this.</xs:documentation></xs:annotation></xs:attribute></xs:complexType>
<xs:complexType name="BuildingDetailsType"><xs:sequence><xs:element name="BuildingSummary" minOccurs="0"><xs:annotation><xs:documentation>Overall characterization of building for descriptive, rather than modeling purposes</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Site"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="SiteType" type="SiteType"/><xs:element minOccurs="0" name="Surroundings" type="Surroundings"><xs:annotation><xs:documentation>If the building is attached to other units in the horizontal plane.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="VerticalSurroundings" type="VerticalSurroundings"><xs:annotation><xs:documentation>If the building is attached to other units on the vertical plane.</xs:documentation></xs:annotation></xs:element><xs:element name="ShieldingofHome" type="ShieldingofHome" minOccurs="0"/><xs:element minOccurs="0" name="OrientationOfFrontOfHome" type="OrientationType"/><xs:element minOccurs="0" name="AzimuthOfFrontOfHome" type="AzimuthType"/><xs:element minOccurs="0" name="PublicTransportation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="DistanceFromSubway" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromBus" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DistanceFromTrain" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WalkingScore" type="IntegerGreaterThanOrEqualToZero"/><xs:element minOccurs="0" name="WalkingScoreSource" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="BuildingOccupancy"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="HouseholdType" type="HouseholdType"/><xs:element minOccurs="0" name="YearOccupied" type="Year"><xs:annotation><xs:documentation>The year the current occupants moved into the building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ResidentPopulationType" type="ResidentPopulationType"/><xs:element minOccurs="0" name="Occupancy" type="Occupancy"/><xs:element name="NumberofResidents" type="PeopleCount" minOccurs="0"/><xs:element minOccurs="0" name="NumberofAdults" type="PeopleCount"><xs:annotation><xs:documentation>18 or older</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofChildren" type="IntegerGreaterThanOrEqualToZero"><xs:annotation><xs:documentation>less than 18 years old</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PubliclySubsidized" type="xs:boolean"/><xs:element minOccurs="0" name="LowIncome" type="xs:boolean"/><xs:element minOccurs="0" name="OccupantIncomeRange" type="FractionGreaterThanOne"><xs:annotation><xs:documentation>Percentage as a fraction (50% = 0.5)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="OccupantIncomeRangeUnits" type="OccupantIncomeRangeUnits"><xs:annotation><xs:documentation>AMI = Area Median Income; FPL = Federal Poverty Level</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HighestLevelofOccupantEducation" type="EducationLevels"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="BuildingConstruction"><xs:complexType><xs:sequence><xs:element name="YearBuilt" type="Year" minOccurs="0"/><xs:element minOccurs="0" name="YearBuiltKnownOrEstimated" type="KnownOrEstimated"/><xs:element minOccurs="0" name="YearofLastRemodel" type="Year"/><xs:element name="ResidentialFacilityType" type="ResidentialFacilityType" minOccurs="0"/><xs:element minOccurs="0" name="PassiveSolar" type="xs:boolean"><xs:annotation><xs:documentation>Passive solar design—also known as climatic design—involves using a building's windows, walls, and floors to collect, store, and distribute solar energy in the form of heat in the winter and reject solar heat in the summer. (source: http://www.eere.energy.gov/basics/buildings/passive_solar_design.html)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] height of building</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofUnits" type="IntegerGreaterThanZero"/><xs:element minOccurs="0" name="NumberofFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Total number of floors including a basement, whether conditioned or unconditioned</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloors" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors that are heated/cooled including a basement</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofConditionedFloorsAboveGrade" type="NumberOfFloorsType"><xs:annotation><xs:documentation>Number of floors above grade that are heated/cooled</xs:documentation></xs:annotation></xs:element><xs:element name="AverageCeilingHeight" type="LengthMeasurement" minOccurs="0"><xs:annotation><xs:documentation>[ft] Average distance from the floor to the ceiling</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorToFloorHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] distance between floors</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofRooms" type="IntegerGreaterThanZero"/><xs:element name="NumberofBedrooms" type="IntegerGreaterThanOrEqualToZero" minOccurs="0"/><xs:element name="NumberofBathrooms" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="NumberofCompleteBathrooms" type="IntegerGreaterThanZero"><xs:annotation><xs:documentation>Number of bathrooms with a tub or shower</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingFootprintArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FootprintShape" type="FootprintShape"/><xs:element minOccurs="0" name="GrossFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Gross floor area (based on ASHRAE definition) is the sum of the floor areas of the spaces within the building, including basements, mezzanine and intermediate‐floored tiers, and penthouses with headroom height of 7.5 ft (2.2 meters) or greater. Measurements must be taken from the exterior faces of exterior walls OR from the centerline of walls separating buildings, OR from the centerline of walls separating spaces. Excludes non‐enclosed (or non‐enclosable) roofed‐over areas such as exterior covered walkways, porches, terraces or steps, roof overhangs, and similar features. Excludes air shafts, pipe trenches, and chimneys. Excludes floor area dedicated to the parking and circulation of motor vehicles.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NetFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The floor area of an occupiable space defined by the inside surfaces of its walls but excluding shafts, column enclosures, and other permanently enclosed, inaccessible, and unoccupiable areas. Obstructions in the space such as furnishings, display or storage racks, and other obstructions, whether temporary or permanent, may not be deducted from the space are considered to be part of the net occupiable area.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedFloorArea" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] All finished space that is within the (insulated) conditioned space boundary (that is, within the insulated envelope), regardless of HVAC configuration.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FinishedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Floor area of home that is finished and assumed to be occupied.</xs:documentation></xs:annotation></xs:element><xs:element name="NumberofStoriesAboveGrade" type="IntegerGreaterThanZero" minOccurs="0"/><xs:element minOccurs="0" name="CooledFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HeatedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] The total area of all enclosed spaces measured to the internal face of the external walls. Included are areas of sloping surfaces such as staircases, galleries, raked auditoria, and tiered terraces where the area taken is from the area on the plan. Excluded are areas that are not enclosed such as open floors, covered ways and balconies.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnconditionedFloorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] An enclosed space within a building that does not meet the requirements of a conditioned space. Spaces that have no control over thermal conditions but intentionally or unintentionally receive thermal energy from adjacent spaces are considered unconditioned spaces (such as an attached garage on a house or a vestibule with no thermal comfort criteria). Spaces that are ventilated only to maintain air quality are considered unconditioned spaces (such as a parking garage with no thermal comfort criteria).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BuildingVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] A volume of a building surrounded by solid surfaces such as walls, roofs, floors, fenestration, and doors where the total opening area to the outside can be reduced to less than 1% of the Gross Interior Floor Area of the space. Spaces that are temporarily enclosed such as patios enclosed with tenting are not considered Enclosed Spaces for annual building analysis. These spaces should be treated as exterior to the building.</xs:documentation></xs:annotation></xs:element><xs:element name="ConditionedBuildingVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[cu.ft.] Volume inside the building envelope of the conditioned spaces. This metric can be calculated as the volume of the building if every space is conditioned or on a floor-by-floor basis. For spaces with vertical walls and horizontal ceilings and floors, this is calculated as the Gross Conditioned Floor Area times the height from the top surface of the finished floor to the top surface of the finished floor separating levels of the building or to the inside surface of the roof for the top floor. The volume of spaces that have nonvertical walls or nonhorizontal ceilings of floors should be calculated separately to properly account for the non-rectangular geometry. This metric does include the volume of floor or ceiling return air plenums.</xs:documentation></xs:annotation></xs:element><xs:element name="FoundationType" minOccurs="0" type="FoundationType"><xs:annotation><xs:documentation>Primary foundation type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"><xs:annotation><xs:documentation>Primary attic type of building</xs:documentation></xs:annotation></xs:element><xs:element name="AverageAtticRValue" type="RValue" minOccurs="0"/><xs:element name="AverageWallRValue" type="RValue" minOccurs="0"/><xs:element name="AverageFloorRValue" type="RValue" minOccurs="0"/><xs:element name="AverageDuctRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" name="GaragePresent" type="xs:boolean"/><xs:element minOccurs="0" name="GarageLocation" type="GarageLocation"/><xs:element minOccurs="0" name="SpaceAboveGarage" type="SpaceAboveGarage"/><xs:element maxOccurs="unbounded" minOccurs="0" name="EnergyScore" type="EnergyScoreType"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="ClimateandRiskZones" minOccurs="0"><xs:complexType><xs:sequence minOccurs="0"><xs:element name="ClimateZoneDOE" type="ClimateZoneDOE" minOccurs="0"/><xs:element name="ClimateZoneIECC" minOccurs="0" type="IECCClimateZoneType"/><xs:element name="RadonZone" type="RadonZone" minOccurs="0"/><xs:element name="TermiteZone" type="TermiteZone" minOccurs="0"/><xs:element name="HurricaneZone" type="xs:boolean" minOccurs="0"/><xs:element name="FloodZone" type="xs:boolean" minOccurs="0"/><xs:element name="EarthquakeZone" type="EarthquakeZone" minOccurs="0"/><xs:element maxOccurs="unbounded" minOccurs="0" name="WeatherStation" type="WeatherStation"><xs:annotation><xs:documentation>Weather location used in model simulation and/or utility bill regression analysis</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Zones" type="Zones"/><xs:element name="Enclosure" type="Enclosure" minOccurs="0"/><xs:element name="Systems" type="Systems" minOccurs="0"/><xs:element name="Appliances" type="Appliances" minOccurs="0"/><xs:element name="Lighting" type="Lighting" minOccurs="0"/><xs:element minOccurs="0" name="Pools" type="Pools"/><xs:element name="MiscLoads" type="MiscLoads" minOccurs="0"/><xs:element minOccurs="0" name="HealthAndSafety" type="HealthAndSafety"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>
<xs:complexType name="FoundationType"><xs:choice><xs:element name="Basement"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Finished" type="xs:boolean"/><xs:element minOccurs="0" name="Conditioned" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Crawlspace"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Vented" type="xs:boolean"/><xs:element minOccurs="0" name="Conditioned" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="SlabOnGrade"><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Garage"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Conditioned" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AboveApartment"><xs:annotation><xs:documentation>for single unit retrofits in multifamily properties</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Combination"><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Ambient"><xs:annotation><xs:documentation>For use on sections of the house that are cantilevered or over ambient (outdoor) conditions for some other reason.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="RubbleStone"><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Other"><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:choice></xs:complexType>
<xs:complexType name="EnergyScoreType"><xs:sequence><xs:element name="ScoreType"><xs:annotation><xs:documentation>The Home Energy Score is an asset rating for homes, developed and administered by the U.S. Department of Energy. After conducting a brief walk thru of a home, a qualified assessor calculates a home's score on a 10 point scale using a standard scoring tool, with 10 reflecting homes that use the least amount of energy assuming standard operating conditions (US DOE). The Home Energy Rating System (HERS) index is a measure of a home's energy efficiency. It can also be used to inspect and calculate a home's energy performance. The lower a home's HERS Index Score, the better its efficiency.</xs:documentation></xs:annotation><xs:simpleType><xs:restriction base="xs:string"><xs:enumeration value="RESNET HERS"/><xs:enumeration value="US DOE Home Energy Score"/><xs:enumeration value="other"/></xs:restriction></xs:simpleType></xs:element><xs:element minOccurs="0" name="OtherScoreType"><xs:annotation><xs:documentation>Name of the score type if "other" is selected in ScoreType.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ScoreDate" type="xs:date"/><xs:element name="Score" type="xs:integer"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>
<xs:complexType name="ConsumptionInfoType"><xs:sequence><xs:element name="UtilityID" type="RemoteReference"/><xs:element name="ConsumptionType" type="EnergyAndWaterUseTypeDescription"/><xs:element maxOccurs="unbounded" name="ConsumptionDetail"><xs:annotation><xs:documentation>Consumption records with enough granularity to be able to use smart meter data.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Consumption" type="xs:double"><xs:annotation><xs:documentation>Negative number for renewable generation. Positive number for consumption.</xs:documentation></xs:annotation></xs:element><xs:element name="StartDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp in the ISO 8601 format when the usage measured began.</xs:documentation></xs:annotation></xs:element><xs:element name="EndDateTime" type="xs:dateTime" minOccurs="0"><xs:annotation><xs:documentation>Date/time stamp of the meter reading.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ReadingType" type="MeterReadingType"/><xs:element name="ConsumptionCost" type="xs:double" minOccurs="0"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element name="MarginalRate" type="xs:double" minOccurs="0"/><xs:element minOccurs="0" name="BaseLoad" type="xs:double"><xs:annotation><xs:documentation>Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BPI2400Inputs" type="BPI2400Inputs"><xs:annotation><xs:documentation>The following fields are to support BPI-2400</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="EnergyAndWaterUseTypeDescription"><xs:choice><xs:element name="Energy"><xs:complexType><xs:sequence><xs:element name="FuelType" type="FuelType"><xs:annotation><xs:documentation>Energy Type</xs:documentation></xs:annotation></xs:element><xs:element name="UnitofMeasure" type="energyUnitType"/><xs:element minOccurs="0" name="MeteringConfiguration" type="MeteringConfiguration"><xs:annotation><xs:documentation>direct metering = tenants directly metered; master meter without sub-metering = tenants not sub metered; master meter with sub-metering = tenant sub-metered by building owner</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EmissionsFactors"><xs:complexType><xs:sequence><xs:element name="EmissionsFactor" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:element name="EmissionType" type="EmissionType"/><xs:element name="EmissionUnits" type="EmissionUnits"/><xs:element name="Emissions" type="xs:double"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="FuelInterruptibility" type="FuelInterruptibility"/><xs:element minOccurs="0" name="SharedEnergySystem" type="SharedEnergySystem"/><xs:element minOccurs="0" name="IntervalType" type="IntervalType"/><xs:element minOccurs="0" name="ReadingTimeZone" type="xs:string"/><xs:element minOccurs="0" name="MarginalEnergyCostRate" type="xs:double"><xs:annotation><xs:documentation>[$/energy unit] The cost of providing an additional unit of output</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyUseIntensity" type="xs:double"><xs:annotation><xs:documentation>[kBtu/ft^2] Energy use intensity (EUI) is a unit of measurement that describes a building's energy use. EUI represents the energy consumed by a building relative to its size.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PeakSeason" type="PeakSeason"><xs:annotation><xs:documentation>Period during which electrical power is expected to be provided at a significantly higher than average supply level.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Water"><xs:complexType><xs:sequence><xs:element name="WaterType" type="WaterType"/><xs:element name="UnitofMeasure" type="waterUnitType"/><xs:element minOccurs="0" name="MarginalWaterCostRate" type="xs:double"/><xs:element minOccurs="0" name="WaterUseIntensity"><xs:annotation><xs:documentation>Water use intensity is defined as annual water use divided by total gross square footage of facility space reported in gallons per square foot (DOE, 2013). This element may also be reported as gallons, per day, per person.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Units" type="WaterUseIntensityUnits"/><xs:element name="Value" type="xs:double"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:choice></xs:complexType>
<xs:complexType name="BPI2400Inputs"><xs:sequence><xs:element minOccurs="0" name="WeatherRegressionBeginDate" type="xs:date"/><xs:element minOccurs="0" name="WeatherRegressionEndDate" type="xs:date"/><xs:element minOccurs="0" name="CalibrationQualification" type="BPI2400CalibrationQualification"><xs:annotation><xs:documentation>This identifies which data quality requirements were met by the bills for each energy source and therefore which calibration measure are used to determine model acceptance.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CalibrationWeatherRegressionCVRMSE" type="xs:double"><xs:annotation><xs:documentation>Detailed Calibration Weather Regression CV-RMSE. Eqn. 3.2.2.G.i of BPI-2400. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WeatherNormalizedHeatingUsage" type="xs:double"><xs:annotation><xs:documentation>Weather Normalized Annual Heating Usage</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WeatherNormalizedCoolingUsage" type="xs:double"><xs:annotation><xs:documentation>Weather Normalized Annual Cooling Usage</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WeatherNormalizedBaseloadUsage" type="xs:double"><xs:annotation><xs:documentation>Weather Normalized Annual Baseload Usage</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationHeatingBiasError" type="xs:double"><xs:annotation><xs:documentation>Eqn. 3.2.3.A.i of BPI-2400. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationHeatingAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>Eqn. 3.2.3.A.ii of BPI-2400. In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationCoolingBiasError" type="xs:double"><xs:annotation><xs:documentation>Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationCoolingAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationBaseloadBiasError" type="xs:double"><xs:annotation><xs:documentation>Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DetailedModelCalibrationBaseloadAbsoluteError" type="xs:double"><xs:annotation><xs:documentation>In either kWh for electricity or MMBTU for all other fuels.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SimplifiedModelCalibrationHeatingBiasError" nillable="true" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SimplifiedModelCalibrationCoolingBiasError" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SimplifiedModelCalibrationBaseloadBiasError" nillable="true" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SimplifiedModelCalibrationTotalBiasError" type="xs:double"><xs:annotation><xs:documentation>Used to determine model calibration acceptance when bills fail Detailed criteria, but meet simple criteria. Percentage expressed as a fraction (ie 10% = 0.1)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>

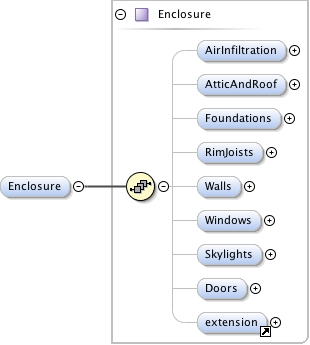

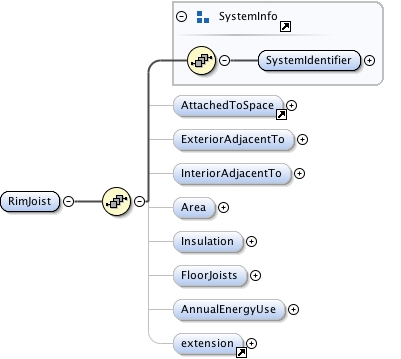

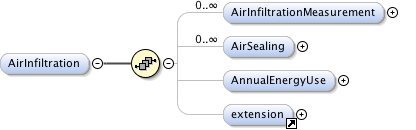

<xs:complexType name="Enclosure"><xs:sequence><xs:element name="AirInfiltration" minOccurs="0"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="AirInfiltrationMeasurement" type="AirInfiltrationMeasurementType" maxOccurs="unbounded"></xs:element><xs:element minOccurs="0" name="AirSealing" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element name="Hours" type="Hours" minOccurs="0"/><xs:element minOccurs="0" name="ComponentsAirSealed"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" minOccurs="0" name="Attic" type="AtticComponentsAirSealed"/><xs:element maxOccurs="unbounded" minOccurs="0" name="BasementCrawlspace" type="BasementCrawlspaceComponentsAirSealed"/><xs:element maxOccurs="unbounded" minOccurs="0" name="LivingSpace" type="LivingSpaceComponentsAirSealed"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AtticAndRoof" minOccurs="0"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Roofs"><xs:complexType><xs:sequence><xs:element name="Roof" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element minOccurs="0" name="RoofColor" type="WallAndRoofColor"/><xs:element minOccurs="0" name="RoofType" type="RoofType"/><xs:element minOccurs="0" name="DeckType" type="DeckType"/><xs:element minOccurs="0" name="Pitch" type="Pitch"><xs:annotation><xs:documentation>Pitch of roof ?/12</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RoofArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Surface area of the roof itself</xs:documentation></xs:annotation></xs:element><xs:element name="RadiantBarrier" type="xs:boolean" minOccurs="0"/><xs:element name="RadiantBarrierLocation" type="RadiantBarrierLocation" minOccurs="0"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Attics"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="Attic"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"><xs:annotation><xs:documentation>The space over which this attic is</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="ExteriorAdjacentTo" type="AdjacentTo" minOccurs="0"></xs:element><xs:element minOccurs="0" name="InteriorAdjacentTo" type="AdjacentTo"/><xs:element maxOccurs="unbounded" minOccurs="0" name="AtticKneeWall" type="LocalReference"></xs:element><xs:element name="AtticType" type="AtticType" minOccurs="0"/><xs:element minOccurs="0" name="AtticFloorInsulation" type="InsulationInfo"><xs:annotation><xs:documentation>For attic floor insulation that covers the rafters, two layers should be defined: 1.) a cavity later with thickness equal to the rafter height, and 2.) a continuous layer above that.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AtticRoofInsulation" type="InsulationInfo"/><xs:element name="Area" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.] Area of the floor of the attic.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Rafters" type="StudProperties"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element name="Foundations" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Foundation" maxOccurs="unbounded"><xs:annotation><xs:documentation>Use a different Foundation element for each type of foundation.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element name="FoundationType" type="FoundationType"/><xs:element minOccurs="0" name="ThermalBoundary" type="FoundationThermalBoundary"/><xs:element name="FrameFloor" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="FloorJoists" type="StudProperties"/><xs:element minOccurs="0" name="FloorTrusses" type="StudProperties"/><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" maxOccurs="1" name="Insulation" type="InsulationInfo"></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="FoundationWall" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="FoundationWallType"/><xs:element minOccurs="0" name="Length" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total length of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Height" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Total height in feet of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of foundation wall excluding interior framing.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BelowGradeDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth below grade of foundation wall</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentToFoundation" type="LocalReference"><xs:annotation><xs:documentation>If this foundation wall is adjacent to another foundation, use this reference to indicate which one.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="InteriorStuds" type="StudProperties"/><xs:element maxOccurs="1" minOccurs="0" name="Insulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Slab" maxOccurs="unbounded" minOccurs="0"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Area of the slab</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Perimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Length of slab perimeter.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of the slab exposed to ambient conditions</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PerimeterInsulationDepth" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from grade to bottom of vertical slab perimeter insulation</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="UnderSlabInsulationWidth" type="LengthMeasurement"/><xs:element minOccurs="0" name="OnGradeExposedPerimeter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Perimeter of slab measuerd in feet that is on-grade (2 ft. below grade or less) and exposed to ambient conditions.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DepthBelowGrade" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft] Depth from the top of the slab surface to grade</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorCovering" type="FloorCovering"/><xs:element maxOccurs="1" minOccurs="0" name="PerimeterInsulation" type="InsulationInfo"/><xs:element minOccurs="0" name="UnderSlabInsulation" type="InsulationInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="RimJoists"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="RimJoist"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element minOccurs="0" name="ExteriorAdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="InteriorAdjacentTo" type="AdjacentTo"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Insulation" type="InsulationInfo"/><xs:element minOccurs="0" name="FloorJoists" type="StudProperties"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="Walls" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Wall" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element name="ExteriorAdjacentTo" type="AdjacentTo" minOccurs="0"></xs:element><xs:element minOccurs="0" name="InteriorAdjacentTo" type="AdjacentTo"/><xs:element name="WallType" type="WallType" minOccurs="0"></xs:element><xs:element minOccurs="0" name="Thickness" type="LengthMeasurement"><xs:annotation><xs:documentation>[in] Thickness of the wall assembly</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Gross wall area</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Orientation" type="OrientationType"/><xs:element name="Azimuth" type="AzimuthType" minOccurs="0"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Studs" type="StudProperties"/><xs:element minOccurs="0" name="Siding" type="Siding"/><xs:element minOccurs="0" name="Color" type="WallAndRoofColor"/><xs:element minOccurs="0" maxOccurs="1" name="Insulation" type="InsulationInfo"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="Windows" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Window" maxOccurs="unbounded"><xs:annotation><xs:documentation>The Window element can be used to describe a single window or a group of windows with the same characteristics. For a group of windows, use the sum of the window areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="WindowtoWallRatio" type="Fraction"/><xs:element minOccurs="0" name="AttachedToWall" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Skylights"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="Skylight"><xs:annotation><xs:documentation>The Skylight element can be used to describe a single skylight or a group of skylights with the same characteristics. For a group of skylights, use the sum of the skylight areas in the Area subelement.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="WindowInfo"/><xs:element minOccurs="0" name="SolarTube" type="xs:boolean"/><xs:element minOccurs="0" name="Pitch" type="Pitch"><xs:annotation><xs:documentation>Pitch of skylight ?/12</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedToRoof" type="LocalReference"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="Doors" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="Door" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="AttachedToWall" type="LocalReference"/><xs:element minOccurs="0" name="Quantity" type="IntegerGreaterThanZero"/><xs:element minOccurs="0" name="Area" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] door area</xs:documentation></xs:annotation></xs:element><xs:element name="Azimuth" type="AzimuthType" minOccurs="0"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Orientation" type="OrientationType"/><xs:element minOccurs="0" name="DoorType" type="DoorType"/><xs:element name="DoorMaterial" type="DoorMaterial" minOccurs="0"/><xs:element minOccurs="0" name="WeatherStripping" type="xs:boolean"/><xs:element name="StormDoor" type="xs:boolean" minOccurs="0"/><xs:element name="RValue" type="RValue" minOccurs="0"/><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="DoorThirdPartyCertifications"/><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="AirInfiltrationMeasurementType"><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Date" type="xs:date"/><xs:element minOccurs="0" name="BusinessConductingTest" type="RemoteReference"/><xs:element minOccurs="0" name="IndividualConductingTest" type="RemoteReference"/><xs:element minOccurs="0" name="OutsideTemperature" type="Temperature"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WindConditions" type="WindConditions"/><xs:element name="TypeOfInfiltrationMeasurement" type="TypeofInfiltrationMeasurement" minOccurs="0"/><xs:element name="TypeOfBlowerDoorTest" type="TypeofBlowerDoorTest" minOccurs="0"/><xs:element name="HousePressure" type="HousePressure" minOccurs="0"><xs:annotation><xs:documentation>[Pa] with respect to outside</xs:documentation></xs:annotation></xs:element><xs:element name="FanPressure" type="FanPressure" minOccurs="0"><xs:annotation><xs:documentation>[Pa]</xs:documentation></xs:annotation></xs:element><xs:element name="FanRingUsed" type="FanRingUsed" minOccurs="0"/><xs:element minOccurs="0" name="LeakinessDescription" type="BuildingLeakiness"/><xs:element minOccurs="0" name="BuildingAirLeakage"><xs:complexType><xs:sequence><xs:element name="UnitofMeasure" type="BuildingAirLeakageUnit" minOccurs="0"/><xs:element name="AirLeakage" type="BuildingAirLeakage" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="EffectiveLeakageArea" type="xs:double"><xs:annotation><xs:documentation>[sq.in.] The Effective Leakage Area is defined as the area of a special nozzle-shaped hole (similar to the inlet of a blower door fan) that would leak the same amount of air as the building does at a pressure of 4 Pascals.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="Systems"><xs:sequence><xs:element name="HVAC" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="HVACPlant" minOccurs="0"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PrimarySystems"><xs:annotation><xs:documentation>Use these to reference which heating, cooling, or heat pump are the primary systems.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PrimaryHeatingSystem" type="LocalReference"/><xs:element minOccurs="0" name="PrimaryCoolingSystem" type="LocalReference"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" maxOccurs="unbounded" name="HeatingSystem" type="HeatingSystemInfoType"/><xs:element minOccurs="0" maxOccurs="unbounded" name="CoolingSystem" type="CoolingSystemInfoType"/><xs:element minOccurs="0" maxOccurs="unbounded" name="HeatPump" type="HeatPumpInfoType"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HVACControl" type="HVACControlType"></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HVACDistribution"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="DistributionSystemType"><xs:complexType><xs:choice><xs:element name="AirDistribution" type="AirDistributionInfo"/><xs:element name="HydronicDistribution" type="HydronicDistributionInfo"/><xs:element name="Other" type="xs:string"><xs:annotation><xs:documentation>describe</xs:documentation></xs:annotation></xs:element></xs:choice></xs:complexType></xs:element><xs:element minOccurs="0" name="ConditionedFloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.] Conditioned floor area that this distribution system serves.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualHeatingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for heating, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AnnualCoolingDistributionSystemEfficiency" type="xs:double"><xs:annotation><xs:documentation>For software that does not calculate an annual distribution system efficiency (DSE) for cooling, the DSE may be approximated by equation 3.4.i in ANSI/BPI-2400-S-2012: Standard Practice for Standardized Qualification of Whole-House Energy Savings, Predictions by Calibration to Energy Use History.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HVACDistributionImprovement" type="HVACDistributionImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Maintenance"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Schedule" type="HVACMaintenanceSchedule"/><xs:element minOccurs="0" name="ACReplacedinLastTenYears" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="MechanicalVentilation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="VentilationFans"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="VentilationFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="FanType" type="VentilationFanType"/><xs:element minOccurs="0" name="RatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as rated by manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CalculatedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as calculated using duct size, prescriptive approach</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedFlowRate" type="xs:double"><xs:annotation><xs:documentation>[CFM] as tested by assessor/auditor/inspector</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursInOperation" type="HoursPerDay"><xs:annotation><xs:documentation>24 = continuous, less than 24 = intermittent</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DeliveredVentilation" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanControlProperlyLabeled" type="BooleanWithNA"/><xs:element minOccurs="0" name="ProperlyVented" type="BooleanWithNA"/><xs:element minOccurs="0" name="FanLocation" type="VentilationFanLocation"/><xs:element minOccurs="0" name="UsedForLocalVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForWholeBuildingVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForSeasonalCoolingLoadReduction" type="xs:boolean"/><xs:element minOccurs="0" name="UsedForGarageVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="RatedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] from manufacturer's info</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedNoise" type="xs:double"><xs:annotation><xs:documentation>[sones] as tested in field</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net total energy (sensible plus latent, also called enthalpy) recovered by the supply airstream adjusted by electric consumption, case heat loss or heat gain, air leakage and airflow mass imbalance between the two airstreams, as a percent of the potential total energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SensibleRecoveryEfficiency" type="Fraction"><xs:annotation><xs:documentation>The net sensible energy recovered by the supply airstream as adjusted by electric consumption, case heat loss or heat gain, air leakage, airflow mass imbalance between the two airstreams and the energy used for defrost (when running the Very Low Temperature Test), as a percent of the potential sensible energy that could be recovered plus the exhaust fan energy. Values for some products can be found at the Home Ventilating Institute (hvi.org).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FanPower" type="xs:double"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="VentilationFanThirdPartyCertification"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="CombustionVentilation"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="CombustionVentilationSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="VentSystemType" type="VentSystem"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="WaterHeating" minOccurs="0"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="WaterHeatingSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element minOccurs="0" name="AttachedToCAZ" type="LocalReference"/><xs:element name="FuelType" type="FuelType" minOccurs="0"/><xs:element name="WaterHeaterType" type="WaterHeaterType" minOccurs="0"/><xs:element name="Location" type="UnitLocation" minOccurs="0"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element name="ModelYear" type="Year" minOccurs="0"/><xs:element name="Manufacturer" type="Manufacturer" minOccurs="0"/><xs:element name="ModelNumber" type="Model" minOccurs="0"/><xs:element minOccurs="0" name="AHRINumber" type="xs:string"/><xs:element minOccurs="0" name="SerialNumber" type="xs:string"/><xs:element minOccurs="0" name="PerformanceAdjustment" type="Fraction"/><xs:element minOccurs="0" name="ThirdPartyCertification" type="DHWThirdPartyCertification" maxOccurs="unbounded"/><xs:element name="TankVolume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[gal]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionDHWLoadServed" type="Fraction"/><xs:element name="HeatingCapacity" type="Capacity" minOccurs="0"><xs:annotation><xs:documentation>[Btuh]</xs:documentation></xs:annotation></xs:element><xs:element name="EnergyFactor" type="EnergyFactor" minOccurs="0"><xs:annotation><xs:documentation>The amount of energy delivered as heated water in a day divided by the total daily energy consumption of a residential water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FirstHourRating" type="Volume"><xs:annotation><xs:documentation>[gal per hour] An estimate of the maximum volume of hot water in gallons that a storage water heater can supply within an hour that begins with the water heater fully heated.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GallonsPerMinute" type="Volume"><xs:annotation><xs:documentation>[gal per minute] The amount of gallons per minute of hot water that can be supplied by an instantaneous water heater while maintaining a nominal temperature rise of 77°F during steady state operation.</xs:documentation></xs:annotation></xs:element><xs:element name="RecoveryEfficiency" type="RecoveryEfficiency" minOccurs="0"><xs:annotation><xs:documentation>The ratio of energy delivered to heat cold water compared to the energy consumed by the water heater, as determined following standardized DOE testing procedure.</xs:documentation></xs:annotation></xs:element><xs:element name="ThermalEfficiency" type="ThermalEfficiency" minOccurs="0"/><xs:element minOccurs="0" name="WaterHeaterInsulation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Jacket"><xs:complexType><xs:sequence><xs:element name="JacketRValue" type="RValue" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Pipe" type="PipeInsulationType"><xs:annotation><xs:documentation>DEPRECATED. This will be removed in v3.0. Use HotWaterDistribution element instead.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element name="MeetsACCA5QIHVACSpecification" type="xs:boolean" minOccurs="0"/><xs:element name="HotWaterTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasGeothermalDesuperheater" type="xs:boolean"><xs:annotation><xs:documentation>Indicates whether this water heater has a geothermal desuperheater. The attached heat pump can be referenced in the RelatedHeatingSystem element.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HasSharedCombustionVentilation" type="xs:boolean"/><xs:element minOccurs="0" name="CombustionVentilationOrphaned" type="xs:boolean"/><xs:element name="CombustionVentingSystem" minOccurs="0" type="LocalReference"></xs:element><xs:element name="RelatedHeatingSystem" type="LocalReference" minOccurs="0"/><xs:element minOccurs="0" name="Installation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Standard" type="HVACInstallationStandard"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="WaterHeaterImprovement" type="WaterHeaterImprovementInfo"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="HotWaterDistribution"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="AttachedToWaterHeatingSystem" type="LocalReference"><xs:annotation><xs:documentation>The water heating system that his distribution system serves.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SystemType"><xs:complexType><xs:choice><xs:element name="Standard"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="PipingLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="Recirculation"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="ControlType" type="RecirculationControlType"/><xs:element minOccurs="0" name="RecirculationPipingLoopLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="BranchPipingLoopLength" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PumpPower" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:choice></xs:complexType></xs:element><xs:element minOccurs="0" name="PipeInsulation" type="PipeInsulationType"/><xs:element minOccurs="0" name="DrainWaterHeatRecovery"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FacilitiesConnected" type="DrainWaterHeatRecoveryFacilitiesConnected"/><xs:element minOccurs="0" name="EqualFlow" type="xs:boolean"/><xs:element minOccurs="0" name="Efficiency" type="Fraction"><xs:annotation><xs:documentation>Efficiency percent expressed as a fraction from 0-1.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="WaterFixture"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:choice minOccurs="0"><xs:element name="AttachedToWaterHeatingSystem" type="LocalReference"/><xs:element name="AttachedToHotWaterDistribution" type="LocalReference"/></xs:choice><xs:element minOccurs="1" name="WaterFixtureType" type="WaterFixtureType"/><xs:element minOccurs="0" name="FlowRate" type="xs:double"><xs:annotation><xs:documentation>[gallons per minute] flow rate of water</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FaucetAerator" type="xs:boolean"><xs:annotation><xs:documentation>Does this faucet have an aerator?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TemperatureInitiatedShowerFlowRestrictionValve" type="xs:boolean"><xs:annotation><xs:documentation>Does the shower have a device that restricts the flow of water automatically once it has reached temperature?</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="WaterFixtureThirdPartyCertification"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="AnnualEnergyUse" minOccurs="0"><xs:complexType><xs:sequence><xs:element name="ConsumptionInfo" type="ConsumptionInfoType"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="SolarThermal"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="SolarThermalSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"/><xs:element minOccurs="0" name="ModelNumber" type="xs:string"/><xs:element minOccurs="0" ref="AttachedToZone"/><xs:element name="SystemType" minOccurs="0" type="SolarThermalSystemType"/><xs:element name="CollectorArea" type="SurfaceArea" minOccurs="0"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CollectorLoopType" type="SolarThermalCollectorLoopType"><xs:annotation><xs:documentation>"batch heater" enumeration is deprecated. It will be removed in a future version. See #272.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CollectorType" type="SolarThermalCollectorType"/><xs:element minOccurs="0" name="CollectorOrientation" type="OrientationType"/><xs:element minOccurs="0" name="CollectorAzimuth" type="AzimuthType"/><xs:element minOccurs="0" name="CollectorTilt" type="Tilt"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="StorageVolume" type="Volume"><xs:annotation><xs:documentation>[gal]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ConnectedTo" type="LocalReference"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Photovoltaics"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="PVSystem"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Location" type="PVSystemLocation"/><xs:element minOccurs="0" name="Ownership" type="PVSystemOwnership"/><xs:element minOccurs="0" name="ArrayOrientation" type="OrientationType"/><xs:element minOccurs="0" name="ArrayAzimuth" type="AzimuthType"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ArrayTilt" type="Tilt"><xs:annotation><xs:documentation>[deg]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MaxPowerOutput" type="Power"><xs:annotation><xs:documentation>[DC Watts] Peak power as supplied by the manufacturer</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CollectorArea" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="InverterEfficiency" type="Efficiency"/><xs:element minOccurs="0" name="YearInverterManufactured" type="Year"/><xs:element minOccurs="0" name="YearModulesManufactured" type="Year"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="AnnualOutput" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] Projected Annual Output for a typical meterological year as determined by PVWatts or similar.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Wind"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="WindTurbine"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Model" type="xs:string"/><xs:element minOccurs="0" name="YearInstalled" type="Year"/><xs:element minOccurs="0" name="ThirdPartyCertification" maxOccurs="unbounded" type="WindThirdPartyCertification"/><xs:element minOccurs="0" name="AWEARatedAnnualEnergy" type="RatedAnnualkWh"><xs:annotation><xs:documentation>[kWh] the calculated total energy that would be produced during a one-year period with an average wind speed of 5 m/s (11.2 mph)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedSoundLevel" type="xs:double"><xs:annotation><xs:documentation>[dBA] the sound pressure level not exceeded by the wind turbine 95% of the time at a distance of 60 meters from the rotor with an average wind speed of 5 m/s (11.2 mph).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AWEARatedPower" type="Power"><xs:annotation><xs:documentation>[kW] the wind turbine’s power output at 11 m/s (24.6 mph). Manufacturers may still describe or name their wind turbine models using a nominal power (e.g. 5 kW S-343).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PeakPower" type="Power"><xs:annotation><xs:documentation>[kW] the highest point on the certified power curve.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RotorDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HubHeight" type="LengthMeasurement"><xs:annotation><xs:documentation>[ft]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LevelizedCostOfElectricity" type="Cost"><xs:annotation><xs:documentation>[$] The LCOE is the total cost of installing and operating a project expressed in dollars per kilowatt-hour of electricity generated by the system over its life. Can be calculated with System Advisor Model, a similar software, or through a simplified calculation at http://www.nrel.gov/analysis/tech_lcoe.html.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="HVACMaintenance"><xs:sequence><xs:element minOccurs="0" name="TuneAndRepair" type="xs:boolean"/><xs:element minOccurs="0" name="TuneAndRepairYearMonth" type="xs:gYearMonth"><xs:annotation><xs:documentation>Year and month of the last tune and repair for this HVAC equipment.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="NumberofCoilsReplaced" type="IntegerGreaterThanOrEqualToZero"/><xs:element minOccurs="0" name="NumberofAirHandlersReplaced" type="IntegerGreaterThanOrEqualToZero"/><xs:element minOccurs="0" name="AirFilter"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Size"><xs:annotation><xs:documentation>Width x Length x Thickness</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="Width"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Length"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element name="Thickness"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="MERVRating" type="MERV"><xs:annotation><xs:documentation>Minimum efficiency reporting value, commonly known as MERV rating, is a measurement scale designed in 1987 by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) to rate the effectiveness of air filters.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LastReplaced" type="xs:gYearMonth"><xs:annotation><xs:documentation>The Year and Month the filter was last replacced.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>
<xs:complexType name="HeatingEfficiencyType"><xs:sequence><xs:element name="Units" type="HeatingEfficiencyUnits"><xs:annotation><xs:documentation>For AFUE and Percent enter values as a fractional number between 0 and 1, i.e. 80% = 0.8</xs:documentation></xs:annotation></xs:element><xs:element name="Value" type="Efficiency"/></xs:sequence></xs:complexType>
<xs:complexType name="DuctLeakageMeasurementType"><xs:sequence><xs:element minOccurs="0" name="DuctType" type="DuctType"/><xs:element name="LeakinessObservedVisualInspection" type="LeakinessObservedVisualInspection" minOccurs="0"/><xs:element name="DuctLeakageTestMethod" type="DuctLeakageTestMethod" minOccurs="0"/><xs:element minOccurs="0" name="DuctLeakage"><xs:complexType><xs:sequence><xs:element name="Units" type="DuctLeakageTestUnitofMeasure" minOccurs="0"/><xs:element name="Value" type="MeasuredDuctLeakage" minOccurs="0"/><xs:element minOccurs="0" name="TotalOrToOutside" type="DuctLeakageTotalOrToOutside"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="EffectiveLeakageArea" type="SurfaceArea"><xs:annotation><xs:documentation>The Leakage Area is defined in TECBLAST as the size of a sharp edged orifice which would leak at the same flow rate as the measured leakage, if the orifice were subjected to the Test Pressure. Leakage Area [sq in] = Duct System Leakage Rate [CFM] / (1.06 * (Test Pressure [Pa]) ^ 0.5)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>
<xs:complexType name="RefrigeratorInfoType"><xs:complexContent><xs:extension base="ApplianceTypeSummaryInfo"><xs:sequence><xs:element name="Type" type="RefrigeratorStyle" minOccurs="0"/><xs:element minOccurs="0" name="Location" type="RefrigeratorLocation"/><xs:element name="RatedAnnualkWh" type="RatedAnnualkWh" minOccurs="0"/><xs:element name="PrimaryIndicator" type="xs:boolean" minOccurs="0"><xs:annotation><xs:documentation>True if it is the primary refrigerator</xs:documentation></xs:annotation></xs:element><xs:element name="Volume" type="Volume" minOccurs="0"><xs:annotation><xs:documentation>[cu.ft.]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FreshVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] Volume of refrigerator for keeping food at less than freezing.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FrozenVolume" type="Volume"><xs:annotation><xs:documentation>[cu.ft.] Freezer Volume</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType>

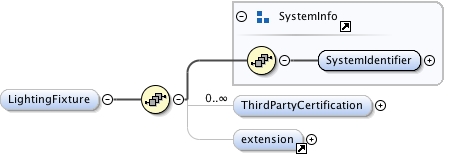

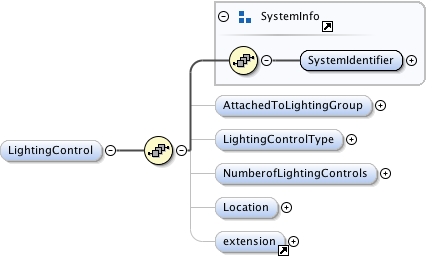

<xs:complexType name="Lighting"><xs:sequence><xs:element name="LightingGroup" minOccurs="0" maxOccurs="unbounded"><xs:annotation><xs:documentation>Light units of the same type. For example you could have all the 60W incandescants.</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Fixture" type="LocalReference"><xs:annotation><xs:documentation>The LightingFixture that this is attached to</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="AttachedToSpace"/><xs:element minOccurs="0" name="Location" type="LightingLocation"/><xs:element name="NumberofUnits" type="xs:integer" minOccurs="0"/><xs:element minOccurs="0" name="LightingType" type="LightingType"/><xs:element minOccurs="0" name="AverageLumens" type="xs:double"><xs:annotation><xs:documentation>Lumens is a measure of light output (brightness) as opposed to watts, which measures energy consumption. The EPA and DOE encourages people to determine the amount of light they need (or brightness) first before purchasing a light bulb. Once brightness is determined, you can look for the bulb with the lowest watts.</xs:documentation></xs:annotation></xs:element><xs:element name="AverageWattage" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>[W] per unit</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="LightingThirdPartyCertification"/><xs:element name="AverageHoursPerDay" type="HoursPerDay" minOccurs="0"><xs:annotation><xs:documentation>[h]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LightingDailyHours" type="LightingDailyHours"><xs:annotation><xs:documentation>[h]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FloorAreaServed" type="SurfaceArea"><xs:annotation><xs:documentation>[sq.ft.]</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="LightingFixture"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element maxOccurs="unbounded" minOccurs="0" name="ThirdPartyCertification" type="LightingFixtureThirdPartyCertification"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="LightingControl" minOccurs="0" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="AttachedToLightingGroup" type="LocalReference"/><xs:element name="LightingControlType" type="LightingControls" minOccurs="0"></xs:element><xs:element name="NumberofLightingControls" type="IntegerGreaterThanOrEqualToZero" minOccurs="0"/><xs:element name="Location" type="LightingLocation" minOccurs="0"></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="LightingFractions"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FractionIncandescent" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are incandescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionCFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are compact fluorescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionLFL" type="Fraction"><xs:annotation><xs:documentation>Fraction of the lights that are linear fluorescent.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FractionLED" type="Fraction"><xs:annotation><xs:documentation>Fraction of lights that are LED.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="CeilingFan"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element maxOccurs="3" minOccurs="0" name="Airflow"><xs:annotation><xs:documentation/></xs:annotation><xs:complexType><xs:sequence><xs:element minOccurs="0" name="FanSpeed"><xs:simpleType><xs:restriction base="xs:string"><xs:enumeration value="low"/><xs:enumeration value="medium"/><xs:enumeration value="high"/></xs:restriction></xs:simpleType></xs:element><xs:element minOccurs="0" name="Airflow" type="xs:double"><xs:annotation><xs:documentation>[CFM]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Efficiency" type="xs:double"><xs:annotation><xs:documentation>[CFM/watt] The efficiency rating of a ceiling fan as determined by the test procedure defined by the Environmental Protection Agency's ENERGY STAR Testing Facility Guidance Manual: Building a Testing Facility and Performing the Solid State Test Method for ENERGY STAR Qualified Ceiling Fans, Version 1.1, December 9, 2002. This is generally printed on the box in which the ceiling fan is shipped.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="ApplianceThirdPartyCertifications" maxOccurs="unbounded"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="Pools"><xs:sequence><xs:element maxOccurs="unbounded" name="Pool"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolType"><xs:annotation><xs:documentation>Indicates if the pool is above or below ground.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Volume" type="Volume"><xs:annotation><xs:documentation>[gal] Volume of pool.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MonthsPerYearofOperation" type="MonthsPerYear"><xs:annotation><xs:documentation>Months per year pool is in operation.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ReturnPipeDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SuctionPipeDiameter" type="LengthMeasurement"><xs:annotation><xs:documentation>[in]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FilterType" type="PoolFilterType"><xs:annotation><xs:documentation>Type of filter used, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PoolPumps"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="PoolPump"><xs:annotation><xs:documentation>Pool pump: a mechanical assembly consisting of a “wet-end,” which houses the impeller and a motor. The pump increases the “head” and “flow” of the water (ENERGY STAR, 2013).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolPumpType"/><xs:element minOccurs="0" name="Manufacturer" type="xs:string"><xs:annotation><xs:documentation>Manufacturer of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SerialNumber" type="xs:string"><xs:annotation><xs:documentation>Serial number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ModelNumber" type="xs:string"><xs:annotation><xs:documentation>Model number of pool pump.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ThirdPartyCertification" type="PoolPump3rdPartyCertification" maxOccurs="unbounded"><xs:annotation><xs:documentation>Independent organization has verified that product or appliance meets or exceeds the standard in question (ENERGY STAR, CEE, or other)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergyFactor" type="Efficiency"><xs:annotation><xs:documentation>[gal/Wh] The measure of overall pool filter pump efficiency in units of gallons per watt-hour, as determined using the applicable test method in Section 4.1.2. Energy factor is analogous to other energy factors such as miles per gallon. Energy factor (EF) is calculated as: EF (gal/Wh) = flow rate (gpm) * 60 ÷ power (watts) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="SpeedSetting" type="PoolPumpSpeedSetting"><xs:annotation><xs:documentation>The speed setting at which the Energy Factor was measured (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RatedHorsepower" type="Power"><xs:annotation><xs:documentation>The motor power output designed by the manufacturer for a rated RPM, voltage and frequency. May be less than total horsepower where the service factor is greater than 1.0, or equal to total horsepower where the service factor = 1.0 (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TotalHorsepower" type="Power"><xs:annotation><xs:documentation>The total horsepower, or product of the rated horsepower and the service factor of a motor used on a pool pump (also known as SFHP) based on the maximum continuous duty motor power output rating allowable for the nameplate ambient rating and motor insulation class (e.g., total horsepower = rated horsepower * service factor) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ServiceFactor" type="xs:double"><xs:annotation><xs:documentation>A multiplier applied to the rated horsepower of a pump motor to indicate the percent above nameplate horsepower at which the motor can operate continuously without exceeding its allowable insulation class temperature limit, provided that other design parameters, such rated voltage, frequency and ambient temperature, are within limits. A 1.5 hp pump with a 1.65 service factor produces 2.475 hp (total horsepower) at the maximum service factor point (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>DEPRECATED - Please use PumpSpeed/HoursPerDay</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="PumpSpeed"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Power" type="Power"><xs:annotation><xs:documentation>[W]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="MotorNominalSpeed" type="Speed"><xs:annotation><xs:documentation>[Rev/min] The number of revolutions of the motor shaft in a given unit of time, expressed as revolutions per minute (RPM) (ENERGY STAR, 2013).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlowRate" type="FlowRate"><xs:annotation><xs:documentation>[gal/min] The volume of water flowing through the filtration system in a given time, usually measured in gallons per minute (gpm) (ANSI/APSP/ICC-15 2011).</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>[hours] Number of hours per day a pool pump operates at a particular speed setting.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Cleaner"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolCleanerType"><xs:annotation><xs:documentation>Type of pool cleaner used, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool cleaner is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Heater"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Type" type="PoolHeaterType"><xs:annotation><xs:documentation>Type of heater used to heat pool, if any.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="HoursPerDay" type="HoursPerDay"><xs:annotation><xs:documentation>Hours per day pool heater is used.</xs:documentation></xs:annotation></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType>

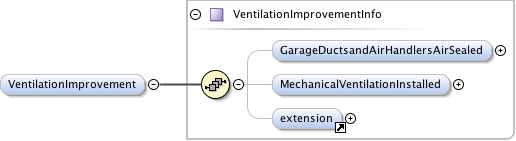

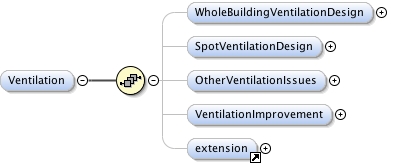

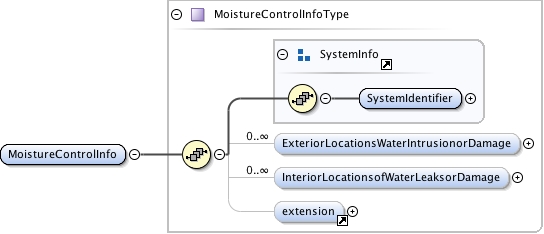

<xs:complexType name="HealthAndSafety"><xs:sequence><xs:element minOccurs="0" name="General"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="TestsCompleted" type="xs:boolean"/><xs:element minOccurs="0" name="TestsPassed" type="xs:boolean"/></xs:sequence></xs:complexType></xs:element><xs:element name="Ventilation" minOccurs="0"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="WholeBuildingVentilationDesign" type="WholeBldgVentDesignInfo"/><xs:element minOccurs="0" name="SpotVentilationDesign" type="SpotVentDesignInfo"/><xs:element minOccurs="0" name="OtherVentilationIssues" type="OtherVentIssues"/><xs:element minOccurs="0" name="VentilationImprovement" type="VentilationImprovementInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="MoistureControl" minOccurs="0"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="MoistureControlInfo" type="MoistureControlInfoType"></xs:element><xs:element minOccurs="0" name="MoistureControlImprovement" type="MoistureControlImprovementInfo"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="CombustionAppliances"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="CombustionApplianceZone" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element name="CAZDepressurizationLimit" type="CAZDepressurizationLimit" minOccurs="0"><xs:annotation><xs:documentation>Pulled from industry standards by users (e.g. BPI Gold Sheet) or via software program</xs:documentation></xs:annotation></xs:element><xs:element name="BaselineTest" type="CAZTestConfiguration" minOccurs="0"><xs:annotation><xs:documentation>Baseline pressure is read under the following conditions: no items running, all fans off, all exterior doors closed, and all interior doors are opened.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PoorCaseTest" type="CAZTestConfiguration"><xs:annotation><xs:documentation>The poor case CAZ depressurization test is configured by determining the largest combustion appliance zone depressurization attainable at the time of testing due to the combined effects of door position, exhaust appliance operation, and air handler fan operation. A base pressure must be measured with all fans off and doors open. The poor case CAZ depressurization measurement is the pressure difference between the largest depressurization attained at the time of testing and the base pressure.</xs:documentation></xs:annotation></xs:element><xs:element name="NetPressureChange" type="NetPressureChange" minOccurs="0"><xs:annotation><xs:documentation>With respect to the baseline pressure (e.g. no fans running, all exterior doors closed, and all interior doors opened)</xs:documentation></xs:annotation></xs:element><xs:element name="DepressurizationFindingPoorCase" type="DepressurizationFindingPoorCase" minOccurs="0"/><xs:element name="AmountAmbientCOinCAZduringTesting" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>parts per million (ppm)</xs:documentation></xs:annotation></xs:element><xs:element name="AmbientCOinCAZExceeded35ppmduringTesting" type="xs:boolean" minOccurs="0"/><xs:element minOccurs="0" name="CombustionApplianceTest" maxOccurs="unbounded"><xs:complexType><xs:sequence minOccurs="0"><xs:element name="CAZAppliance" type="RemoteReference"><xs:annotation><xs:documentation>The ID of the system tested</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="CombustionVentingSystem" type="RemoteReference"/><xs:element name="FlueVisualCondition" type="FlueCondition" minOccurs="0"/><xs:element minOccurs="0" name="FlueConditionNotes" type="xs:string"/><xs:element name="OutsideTemperatureFlueDraftTest" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F]</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="FlueDraftTest"><xs:annotation><xs:documentation>[Pa]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="SpillageTest"><xs:annotation><xs:documentation>[seconds]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element minOccurs="0" name="CarbonMonoxideTest"><xs:annotation><xs:documentation>[ppm]</xs:documentation></xs:annotation><xs:complexType><xs:complexContent><xs:extension base="CAZApplianceReading"><xs:sequence><xs:element name="MaxAmbientCOinLivingSpaceDuringAudit" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>Monitored throughout assessment, not just appliance testing</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AmbientCOActionDuringCAZTesting" type="xs:string"><xs:annotation><xs:documentation>BPI Gold Sheet is one example that shows action levels based upon decision logic</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:extension></xs:complexContent></xs:complexType></xs:element><xs:element name="StackTemperature" type="Temperature" minOccurs="0"><xs:annotation><xs:documentation>[deg F] after 10 minutes run time</xs:documentation></xs:annotation></xs:element><xs:element name="FuelLeaks" minOccurs="0" maxOccurs="unbounded"><xs:complexType><xs:sequence><xs:element name="FuelType" type="FuelType"/><xs:element name="LeaksIdentified" type="xs:boolean"/><xs:element name="LeaksAddressed" type="xs:boolean"/><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Notes" type="xs:string"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="StoveTest"><xs:complexType><xs:sequence><xs:element name="StoveID" type="SystemIdentifiersInfoType"/><xs:element minOccurs="0" name="StoveFuel" type="FuelType"/><xs:element name="HeatingStoveProperlyVented" type="xs:boolean" minOccurs="0"/><xs:element name="COReading" type="COReading" minOccurs="0"/><xs:element minOccurs="0" name="TimeofCOReading" type="xs:dateTime"/><xs:element name="GasLeaksIdentified" type="xs:boolean" minOccurs="0"/><xs:element name="ActionsTaken" type="xs:string" minOccurs="0"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="LeadPaint"><xs:complexType><xs:sequence><xs:element name="Disturbed6SqFtIntPaint" type="xs:boolean" minOccurs="0"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 6 sq.ft. of interior painted surfaces?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="Disturbed20SqFtExtPaint" type="xs:boolean"><xs:annotation><xs:documentation>For a home built before 1978, did the contracted scope of work disturb greater than 20 sf of exterior painted surfaces?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WindowReplacement" type="xs:boolean"><xs:annotation><xs:documentation>Did the contracted scope of work include window replacement?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LeadSafeCertificationNumber" type="xs:string"><xs:annotation><xs:documentation>Certification Number of the EPA Lead-Safe Certified firm that performed the work.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Radon"><xs:complexType><xs:sequence><xs:element name="RadonTested" type="xs:boolean" minOccurs="0"/><xs:element maxOccurs="unbounded" minOccurs="0" name="RadonTest"><xs:complexType><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="StartDateTime" type="xs:dateTime"/><xs:element minOccurs="0" name="EndDateTime" type="xs:dateTime"/><xs:element minOccurs="0" name="TestLocation" type="RadonTestLocation"/><xs:element name="RadonTestResults" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>in pCi/L</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RadonTestMethod" type="RadonTestTypes"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="EducationMaterialProvided" type="xs:boolean"><xs:annotation><xs:documentation>Was the homeowner provided with educational material?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ActionsTaken" type="xs:string"/><xs:element minOccurs="0" name="ActionsMeetIndustrySpecs" type="xs:boolean"><xs:annotation><xs:documentation>If moisture management of a crawlspace (e.g., installation of polyethylene sheeting) or radon mitigation measures were a part of the scope of work,were measures installed to be compliant with one of the following: - Specifications of EPA’s Indoor airPLUS program - Techniques detailed in EPA's Radon-Resistent New Construction - ASTM E2121, Standard Practice for Installing Radon Mitigation Systems in Existing Low-Rise Residential Buildings (section 7.3)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ResultBelowActionLevel" type="xs:boolean"><xs:annotation><xs:documentation>Was the result less than 4 pCi/L</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="SourcePollutants"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="UnventedCombustionAppliancesinLivingArea" type="xs:boolean"><xs:annotation><xs:documentation>Are there unvented combustion heating or hearth appliances present in the living area?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ConformanceWithANSIZ21_11_2" type="xs:boolean"><xs:annotation><xs:documentation>If yes, does the appliance conform with ANSI Z21.11.2?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="PrimaryHeatingSource" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is the appliance used as a primary source of heating?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AttachedGarage" type="xs:boolean"><xs:annotation><xs:documentation>Does home have attached garage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GarageContinuousAirBarrier" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there a continuous air barrier between garage and living space?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="GarageExhaustFan" type="xs:boolean"><xs:annotation><xs:documentation>If yes, is there an exhaust fan in garage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Pests"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="IndicationsofPests" type="xs:boolean"><xs:annotation><xs:documentation>Indications of pest entry or damage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EvidenceofPesticide" type="xs:boolean"><xs:annotation><xs:documentation>Evidence of pesticide, insecticide use?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="IndustryStandardCompliance" type="xs:boolean"><xs:annotation><xs:documentation>Do measures comply with industry standards to prevent pest entry? NOTE: This is for ALL measures that may create entry points for vermin. For example, air sealing measures identified to reduce infiltration should have proper sealants - even if those measures were not recommended/installed for pest control purposes.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="Asbestos"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="AsbestosSuspected" type="xs:boolean"><xs:annotation><xs:documentation>Was asbestos suspected?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestedForAsbestos" type="xs:boolean"><xs:annotation><xs:documentation>Was substance tested for asbestos?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AsbestosFound" type="xs:boolean"><xs:annotation><xs:documentation>Was asbestos found?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TypeofBlowerDoorTest" type="TypeofBlowerDoorTest"/><xs:element minOccurs="0" name="ActionsTaken" type="xs:string"/><xs:element minOccurs="0" name="ActionsMeetIndustrySpecifications" type="xs:boolean"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="SprayFoam"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="SprayFoamInstalled" type="xs:boolean"><xs:annotation><xs:documentation>Was spray foam polyurethane foam and / or other potential sources of indoor pollutants installed or applied as part of the scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>

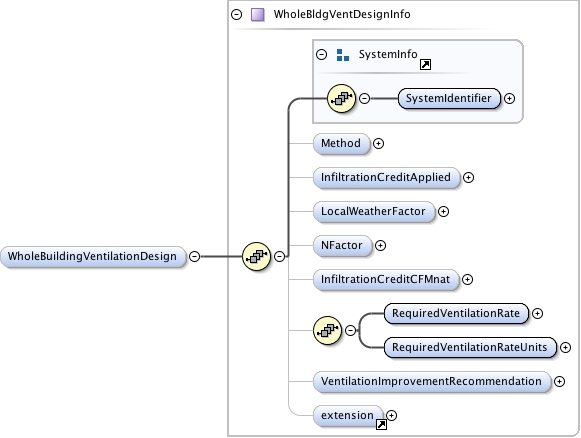

<xs:complexType name="WholeBldgVentDesignInfo"><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Method" type="WholeBldgVentilationRequirementMethod"/><xs:element minOccurs="0" name="InfiltrationCreditApplied" type="BooleanWithNA"><xs:annotation><xs:documentation>ASHRAE 62.2-2010 has an infiltration credit. ASHRAE 62-89 and 62.2-2013 do not have infiltration credits.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="LocalWeatherFactor" type="xs:double"/><xs:element minOccurs="0" name="NFactor" type="xs:double"/><xs:element minOccurs="0" name="InfiltrationCreditCFMnat" type="xs:integer"><xs:annotation><xs:documentation>This is just the # of the calculated infiltration credit.</xs:documentation></xs:annotation></xs:element><xs:sequence minOccurs="0"><xs:element name="RequiredVentilationRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER infiltration credit is applied (if any)</xs:documentation></xs:annotation></xs:element><xs:element name="RequiredVentilationRateUnits" type="VentilationRateUnits"/></xs:sequence><xs:element minOccurs="0" name="VentilationImprovementRecommendation" type="Recommendation"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>

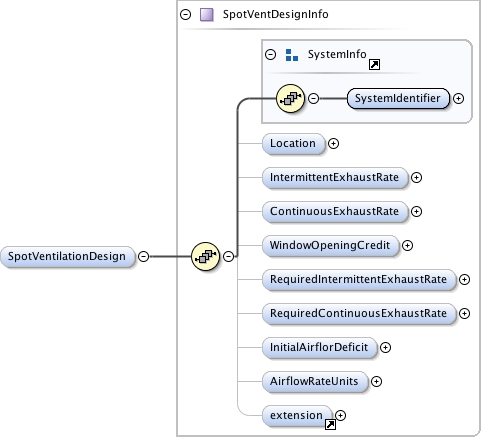

<xs:complexType name="SpotVentDesignInfo"><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="Location" type="SpotVentilationLocation"/><xs:element minOccurs="0" name="IntermittentExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is amount without taking into consideration any infiltration credit</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ContinuousExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is amount without taking into consideration any infiltration credit</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="WindowOpeningCredit" type="xs:double"><xs:annotation><xs:documentation>Should be 20 cfm, if the local AHJ permits windows to be used for local exhaust</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RequiredIntermittentExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="RequiredContinuousExhaustRate" type="xs:double"><xs:annotation><xs:documentation>This is the net amount of continuous ventilation needed AFTER window credit is applied (if any)</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="InitialAirflorDeficit" type="xs:double"><xs:annotation><xs:documentation>The airflow deficit for each bathroom or kitchen is the required airflow less the airflow rating of the exhaust equipment. If there is no exhaust device or if the existing device cannot be measured nor read it, the exhaust device airflow is assumed to be zero.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="AirflowRateUnits" type="SpotVentilationUnits"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>
<xs:complexType name="OtherVentIssues"><xs:sequence><xs:group ref="SystemInfo"/><xs:element minOccurs="0" name="HouseGarageAirBarrier" type="YesNoRecommendInstall"><xs:annotation><xs:documentation>Does a proper air barrier separate the house from the garage?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="DuctsInGarageAirSealed" type="YesNoRecommendInstall"><xs:annotation><xs:documentation>Are ducts and air handlers located in the garage properly air sealed?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="ClothesDryerVented" type="YesNoRecommendInstall"><xs:annotation><xs:documentation>Is the clothes dryer properly vented?</xs:documentation></xs:annotation></xs:element><xs:element maxOccurs="unbounded" minOccurs="0" name="OtherVentilationIssue"><xs:complexType><xs:sequence><xs:element name="Description" type="xs:string"/><xs:element name="Answer" type="YesNoRecommendInstall"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType>

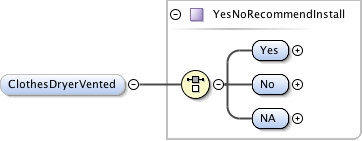

<xs:complexType name="YesNoRecommendInstall"><xs:choice><xs:element name="Yes"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Installed" type="BooleanWithNA"><xs:annotation><xs:documentation>If yes, was this installed as part of scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="No"><xs:complexType><xs:sequence><xs:element minOccurs="0" name="Recommended" type="BooleanWithNA"><xs:annotation><xs:documentation>If no, was this recommended in scope of work?</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element name="NA"><xs:complexType><xs:sequence><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:choice></xs:complexType>
<xs:complexType name="CAZApplianceReading"><xs:sequence><xs:element minOccurs="0" name="PoorScenario" type="xs:double"/><xs:element minOccurs="0" name="CurrentCondition" type="xs:double"><xs:annotation><xs:documentation>This element is formerly known as "spillage, draft, and CO readings under natural conditions" as explained in BPI's Gold Sheet "Combustion Safety Test Procedure for Vented Appliances."</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="TestResult" type="TestResultType"/></xs:sequence></xs:complexType>
<xs:complexType name="ModeledUsageType"><xs:sequence><xs:element name="EnergyType" type="FuelType"><xs:annotation><xs:documentation/></xs:annotation></xs:element><xs:element name="UnitofMeasure" type="energyUnitType"/><xs:element minOccurs="0" name="AnnualConsumption" type="xs:double"/><xs:element minOccurs="0" name="AnnualFuelCost" type="xs:double"/><xs:element maxOccurs="unbounded" minOccurs="0" name="ConsumptionByEndUse" type="EndUseInfoType"/><xs:element minOccurs="0" name="BaseLoad" type="xs:double"><xs:annotation><xs:documentation>Baseload power is the energy consumed for the day-to-day operation of a home that is not used as a response to outside weather (i.e. excludes heating and cooling) (Krigger and Dorsi, 2009).</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>

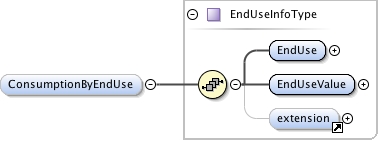

<xs:complexType name="EndUseInfoType"><xs:sequence><xs:element name="EndUse" type="endUseType"/><xs:element name="EndUseValue" type="xs:double"><xs:annotation><xs:documentation>Energy use will be negative for energy producing end uses such as PV and SolarThermal.</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>
<xs:complexType name="EnergySavingsType"><xs:sequence><xs:element minOccurs="0" name="EnergySavingsType" type="MeasuredOrEstimated"><xs:annotation><xs:documentation>Indicates whether it is measured energy savings or estimated energy savings.</xs:documentation></xs:annotation></xs:element><xs:element minOccurs="0" name="EnergySavingsReported" type="GrossOrNet"/><xs:element maxOccurs="unbounded" minOccurs="0" name="FuelSavings" type="FuelSavingsType"/><xs:element name="DemandSavings" minOccurs="0" type="xs:double"><xs:annotation><xs:documentation>[kW] Demand savings from energy efficiency programs</xs:documentation></xs:annotation></xs:element><xs:element name="AnnualPercentReduction" type="xs:double" minOccurs="0"><xs:annotation><xs:documentation>should be represented as a fraction (ie 0.5 instead of 50%)</xs:documentation></xs:annotation></xs:element><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>

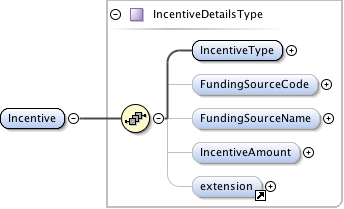

<xs:complexType name="MeasureDetailsType"><xs:sequence><xs:element name="MeasureSystemIdentifiers"><xs:annotation><xs:documentation>These are the system identifiers for a specific measure on a job</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" ref="SystemIdentifiersInfo"/></xs:sequence></xs:complexType></xs:element><xs:element name="MeasureCode" type="MeasureCode" minOccurs="0"/><xs:element name="MeasureDescription" type="MeasureDescription" minOccurs="0"/><xs:element minOccurs="0" name="Quantity"><xs:complexType><xs:sequence><xs:element name="Units" type="xs:string"/><xs:element name="Value" type="Quantity"/></xs:sequence></xs:complexType></xs:element><xs:element name="Location" type="UnitLocation" minOccurs="0"/><xs:element name="EstimatedLife" type="EstimatedLife" minOccurs="0"/><xs:element name="InstallationDate" type="InstallationDate" minOccurs="0"/><xs:element name="Cost" type="Cost" minOccurs="0"/><xs:element name="UnitPricingIndicator" type="xs:boolean" minOccurs="0"/><xs:element minOccurs="0" name="Incentives"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="Incentive" type="IncentiveDetailsType"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="ResourceSavingsInfo"><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="ResourcesSaved"><xs:complexType><xs:sequence><xs:element name="ResourceTypeCode" type="ResourceTypeCode"/><xs:element name="LoadProfile" type="LoadProfile" minOccurs="0"><xs:annotation><xs:documentation>A load profile is created using measurements of a customer's electricity use at regular intervals, typically one hour or less, and provides an accurate representation of a customer's usage pattern over time.</xs:documentation></xs:annotation></xs:element><xs:element name="Quantity" type="Quantity"/><xs:element name="AnnualAmount" type="AnnualAmount" minOccurs="0"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="EnergySavingsInfo" type="EnergySavingsType" maxOccurs="2"/><xs:element maxOccurs="2" minOccurs="0" name="WaterSavingsInfo" type="WaterSavingsType"/><xs:element minOccurs="0" name="CustomerNotes" type="Notes"/><xs:element minOccurs="0" name="WorkscopeNotes" type="Notes"/><xs:element minOccurs="0" name="Status" type="ImprovementStatusType"/><xs:element minOccurs="0" name="NotInstalledReasonCode" type="xs:string"/><xs:element minOccurs="0" name="InstallingContractor" type="RemoteReference"/><xs:element minOccurs="0" name="QA"><xs:annotation><xs:documentation>Quality assurance: The observation techniques and activities used externally by an organization to evaluate the effectiveness of their quality management system and to provide feedback that may result in quality improvements (BPI, 2006).</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element name="QAStatus" type="TestResultType"/><xs:element name="QAComments" type="Notes"/><xs:element minOccurs="0" ref="extension"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="ReplacedComponents"><xs:annotation><xs:documentation>or removed component</xs:documentation></xs:annotation><xs:complexType><xs:sequence><xs:element maxOccurs="unbounded" name="ReplacedComponent" type="RemoteReference"/></xs:sequence></xs:complexType></xs:element><xs:element minOccurs="0" name="InstalledComponent" type="RemoteReference" maxOccurs="unbounded"/><xs:element ref="extension" minOccurs="0"/></xs:sequence></xs:complexType>

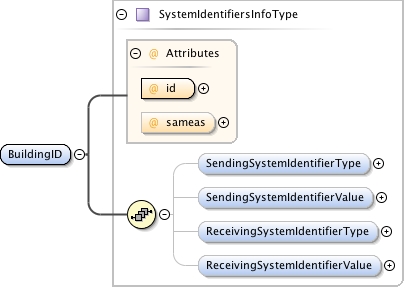

<xs:attribute name="id" type="xs:ID" use="required"><xs:annotation><xs:documentation>id local to the current document</xs:documentation></xs:annotation></xs:attribute>
<xs:attribute name="sameas" type="xs:IDREF"><xs:annotation><xs:documentation>Use to reference the id of the same object on the base building where the object has not been replaced.</xs:documentation></xs:annotation></xs:attribute>
<xs:attribute name="id" type="xs:IDREF"><xs:annotation><xs:documentation>Id reference in the current document. Optional. If the element isn't available in the current document, don't use this.</xs:documentation></xs:annotation></xs:attribute>
